ffline device: It suits for offline edit status. Firstly, commissioning engineer configures panel
parameters locally, and then download it to online panel. It is no doubt that the panel can be edited
directly online. Drag offline device from the column of online panel to panel design area and then
double click to edit it.

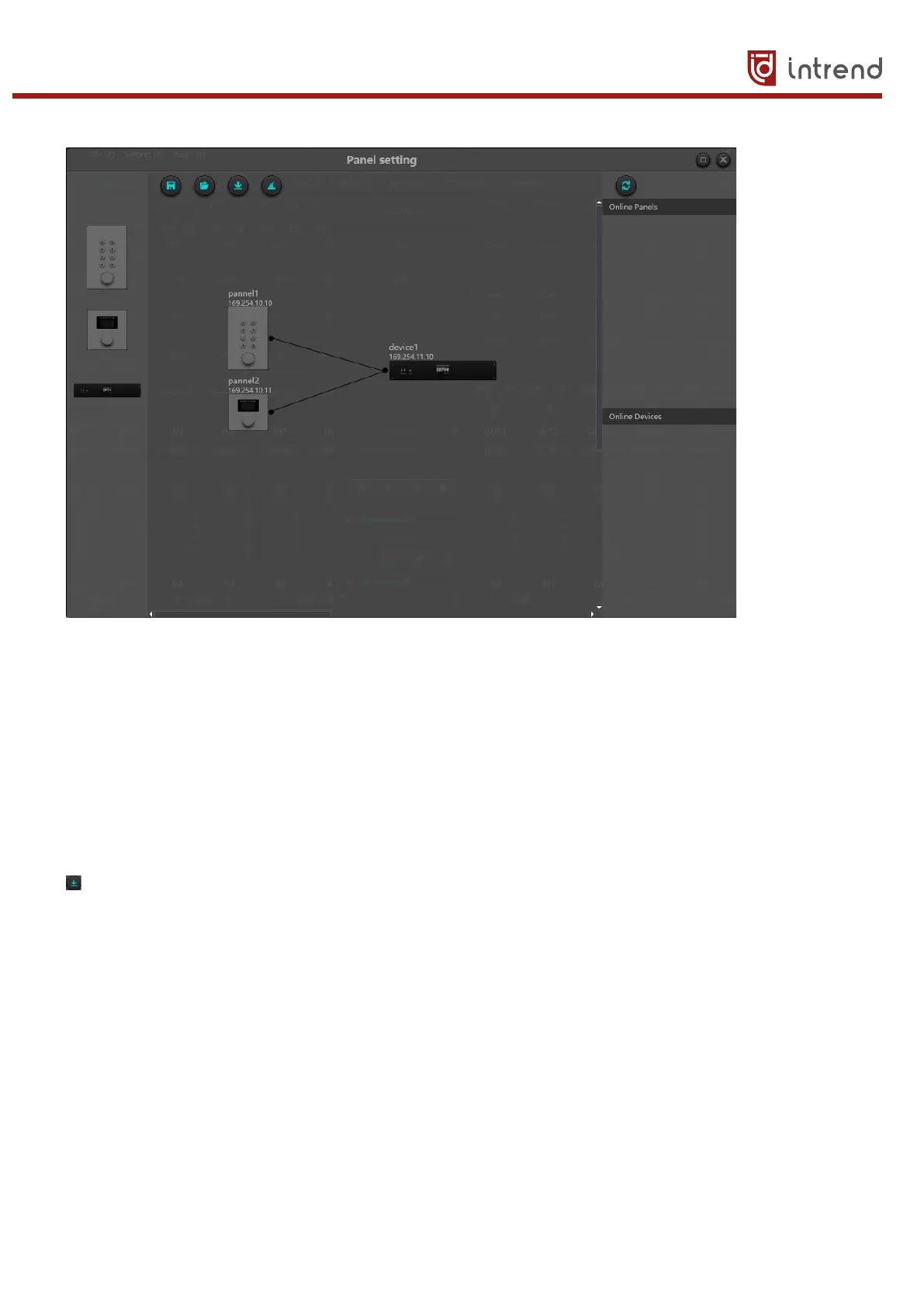

Please note that there is a small circle on both panel and device. Click the circle and then draw a line,
select target device, and then the connection between two devices are established by this way.
Double click the panel in design area to enter panel configuration interface. The configuration of two
panels is going to be described below. After finishing configuration, click the toolbar download icon
to download the panel configuration to hardware.
OLED Screen:
OLED screen consists of a 1.3” OLED screen and a knob. OLED screen display strategy is classified
according to menu. There are totally three types of menus including menu, buttons and presets.
Double click a OLED screen in design area of the screen to enter its detailed setting as shown below.
To Next Page
