Bed Function
1-150-068-A CS Bed Manual.doc © Carroll Healthcare Inc. Page 22 of 35

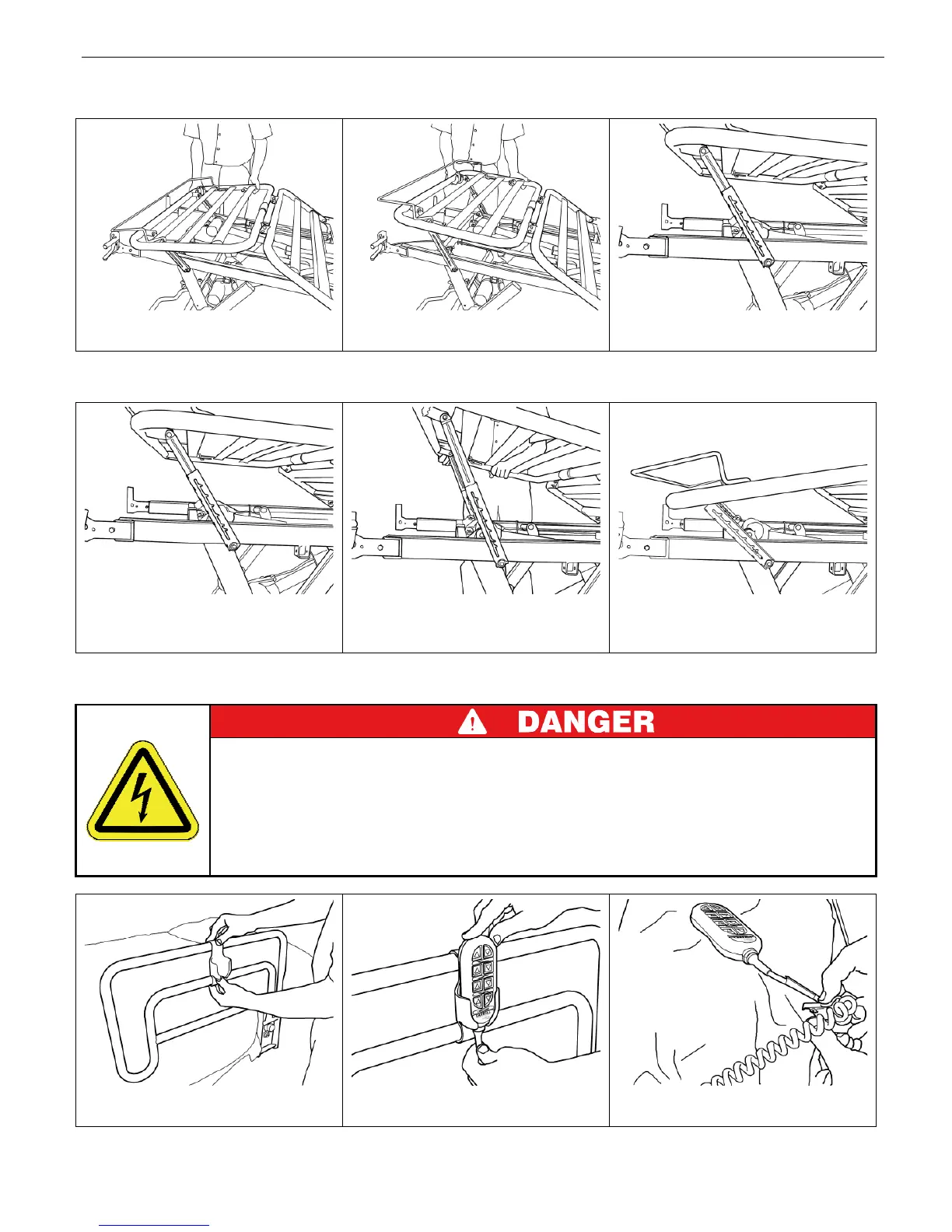

Raise Heel Lift Ratchet
With knee-foot platform adjusted to the
highest position, lift the foot panel.
The foot section can rest at any of the
six pre-set stops
Slowly lower the platform to engage
the nearest stop.
Lower Heel Lift Ratchet
The platform can not lower past the
nearest stop while being adjusted.
To reset the ratchet mechanism, raise
the platform to the highest level then
lower the platform in one motion.
At the lowest position the deck can
once again be raised to the desired stop.
Pendant Stowage and Location
Electrical SHOCK Hazard.
Before working on any electrical part, such as the 9-pin pendant coupling, ensure the main
power to the bed is disconnected and the capacitor inside the control box is fully discharged.
Full capacitor discharge can be achieved by sequentially depressing the 'Up' and 'Down'
buttons on the hand pendant at least 20 times after main electrical power to the control box is
cut. Ensure the hand pendant is not locked-out when discharging it.
Place the pendant holster between the
top rail bars
Slide the pendant into the holster Alternatively, use the pendant clip to
secure the pendant to bed linen.
