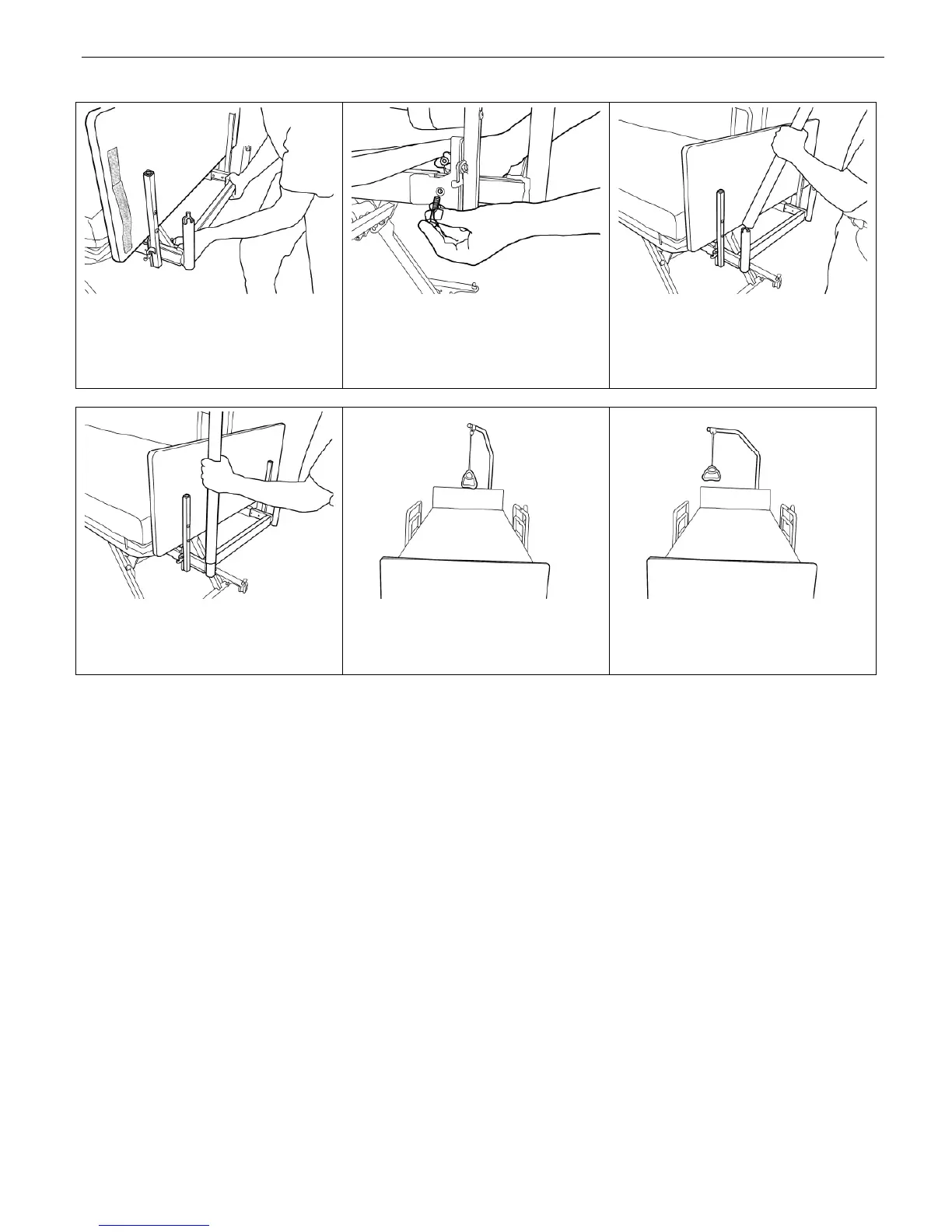

Slide the trapeze adapter into the bed
frame at the head end of the bed. Fit
the spacers between the outside of the
trapeze bracket and the inside of the
frame bed end brackets
Insert the cap screw through the bolt
hole and fasten the lock nut to the
screw. Tighten with two 7/16”
wrenches.
The trapeze will fit on either mounting
post.
Ensure the trapeze is properly seated.
The trapeze will lock passively in the
trapeze position and in the storage
position.
In the trapeze position, the grip handle
is centered across the mattress.
For storage: lift the trapeze slightly and
rotate it parallel to the bed end.
