SECTION 2—OPERATION
Part No 1114836 15 IVC
™
Bed Series
Raising and Lowering Head and Foot Sections
NOTE: For this procedure, refer to Detail “A” of FIGURE 2.2.
1. To raise the head of the bed, press the "Head Up" button.
2. To lower the head of the bed, press the "Head Down" button.
3. To raise the foot of the bed, press the "Foot Up" button.
4. To lower the foot of the bed, press the "Foot Down" button.
Raising and Lowering the Entire Bed
1. Model 5310IVC - Use crank "B" to raise and lower the entire bed.

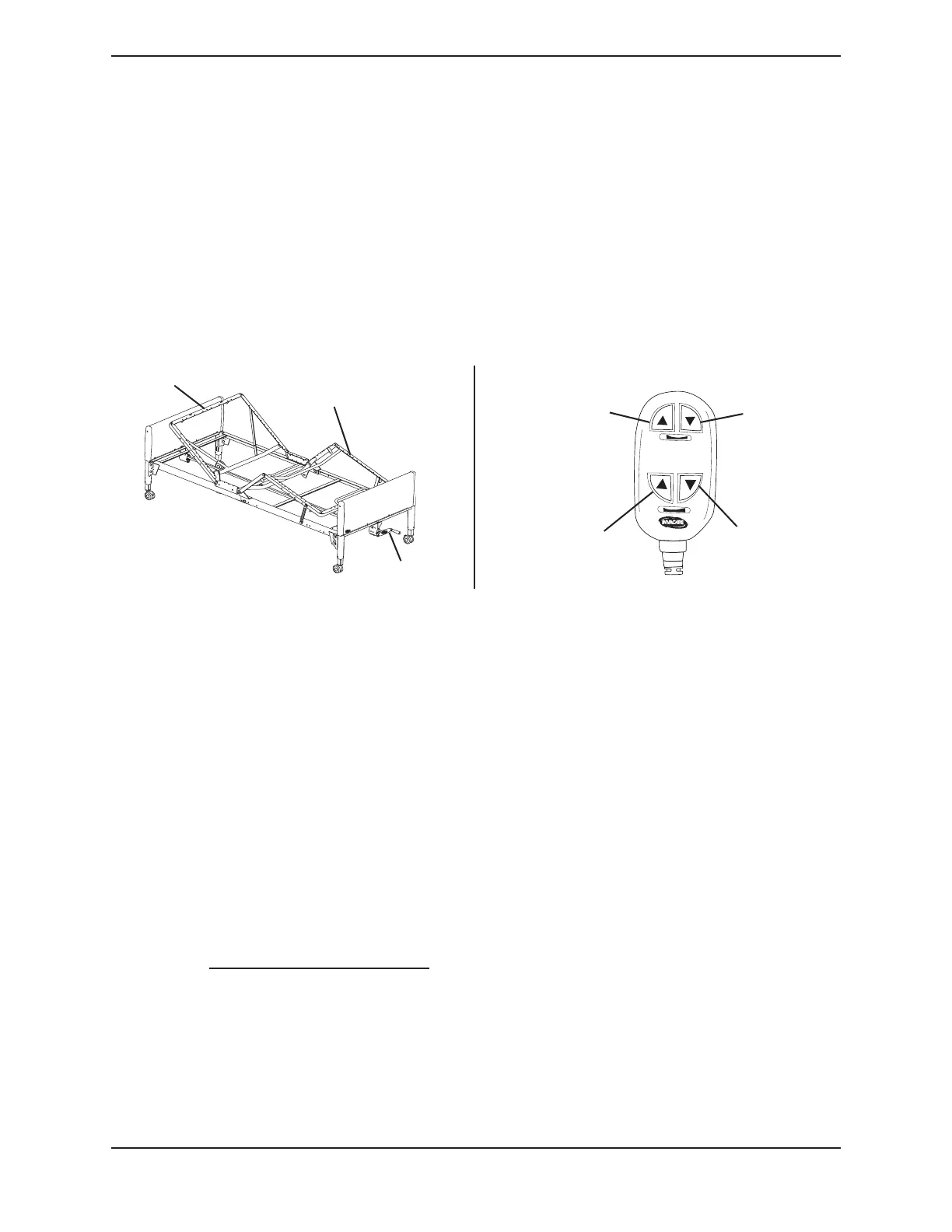

FIGURE 2.2 Operating the Semi-Electric Bed - Models 5310IVC and 5311IVC
Using the Emergency Crank
NOTE: For this procedure, refer to FIGURE 2.3.
NOTE: If the full electric or semi-electric bed needs to be adjusted manually due to a power outage
or an electronic malfunction, use the emergency crank to make the adjustments.You should find the
Emergency crank stored in the link fabric of the spring deck. If you do not find the crank, contact
your dealer.
1. Remove the emergency crank from the spring deck of the bed under the mattress.
2. Locate the exposed shaft end according to the function you want to perform. Refer to
FIGURE 2.3.
3. Attach the emergency crank to A, B, or C.
4. Refer to Operating the Manual Bed
on page 16 for further instruction.
NOTE: Push in the emergency crank while turning it the desired direction.
NOTE: To move the entire bed on full electric models, open drive shaft cover on the foot end of the
gear box.
Foot Down
Button
Foot Up
Button
Head Down
Button
Head Up
Button
NOTE: Link Fabric
not shown.
Crank “B”
DETAIL “A” - PENDANT CONTROLS
Head Section
Foot Section
