SECTION 4—PACKAGING, HANDLING, AND SET-UP
IVC
™
Bed Series 22 Part No 1114836
Unpacking Foot and Head Spring Sections
NOTE: For this procedure, refer to FIGURE 4.2.
1. Remove any loose packing from the carton.
2. Foot Spring Section carton includes:
• One Foot Spring (electric beds include pendant, junction box with power cord, and
head, foot and hi/lo [full electric only] motors with cables).
• One emergency crank handle (electric beds ONLY).
3. Head Spring Section carton includes:
• One Head Spring.

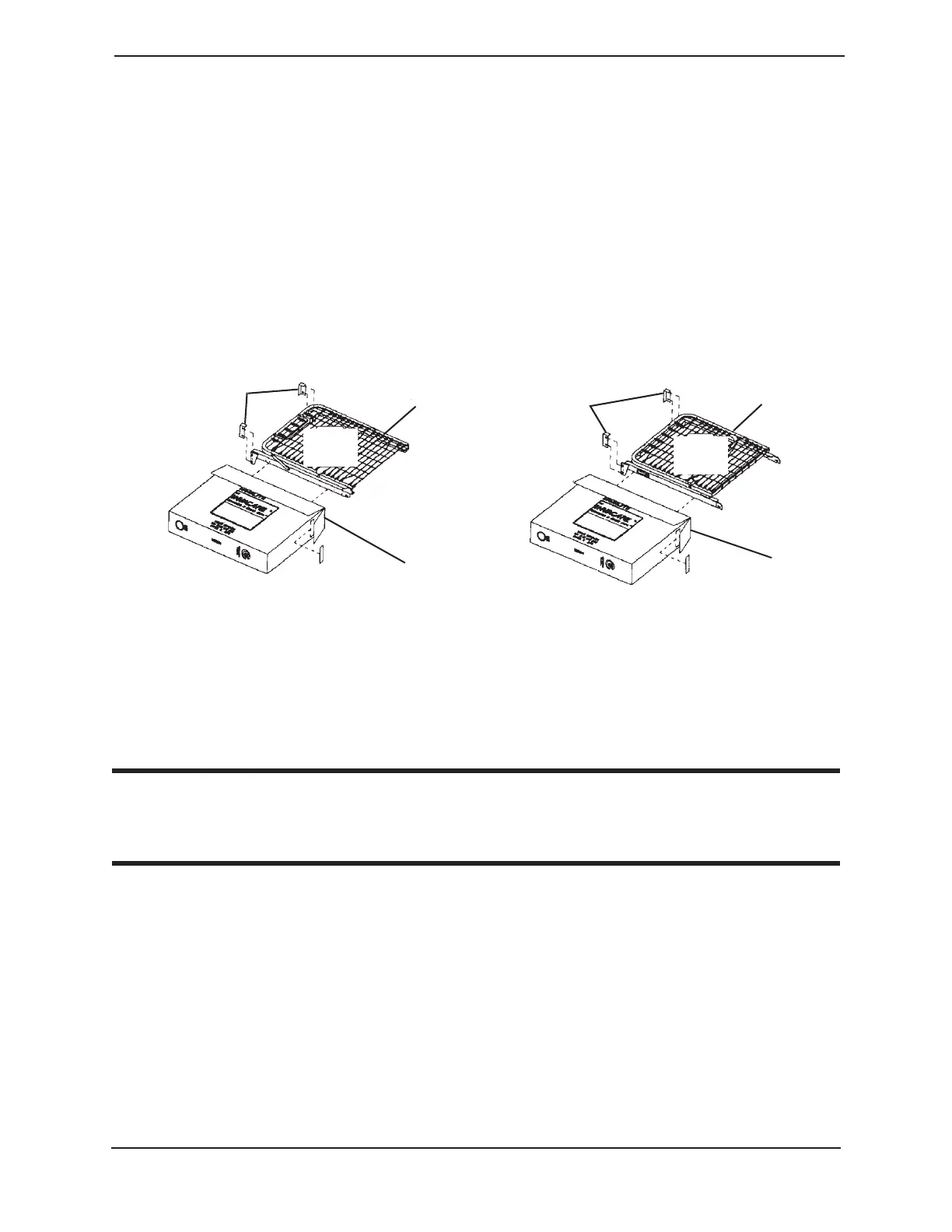

FIGURE 4.2 Unpacking Foot and Head Spring Sections
Set-Up
Assembling the Head and Foot Spring Sections
WARNING
DO NOT attempt to operate bed controls prior to completion of assembly as dam-
age to bed components or personal injury may occur.
NOTE: For this procedure, refer to FIGURE 4.3 and FIGURE 4.4 on page 23.
4. Remove the head spring section (5000 IVC) of the bed from the packing carton.
5. Place the head spring section on its side to your left so the center mounting latches are
on the right. Refer to FIGURE 4.3.
6. Open the head spring section to a 45°
to 90°
angle to support the spring section. Refer
to FIGURE 4.3.
7. Remove the foot spring section of the bed from the packing carton.
8. Place the foot spring section on its side on your right with the head spring pull tube at
the top of the assembly. The center mounting rivets should be on the left. Refer to
FIGURE 4.3.
Head Spring
Shipping Carton
Inserts
Foot Spring
Shipping Carton
Inserts
Link
Fabric
Link
Fabric
