SECTION 4—PACKAGING, HANDLING, AND SET-UP
IVC
™
Bed Series 30 Part No 1114836
2. Inspect the junction box for any damage to the connectors.
3. Ensure that all cable plugs are connected securely.
4. Make sure all cables are routed through the cable lock slots.
5. Securely attach the cable lock. Refer to Installing/Removing Cable Lock
on page 30.
6. If damage is found, contact an Invacare Customer Service Representative to report the
damaged items and request appropriate replacement parts or products.
WARNING
The removal and installation of cables and the cable lock are to be performed by a
qualified technician.

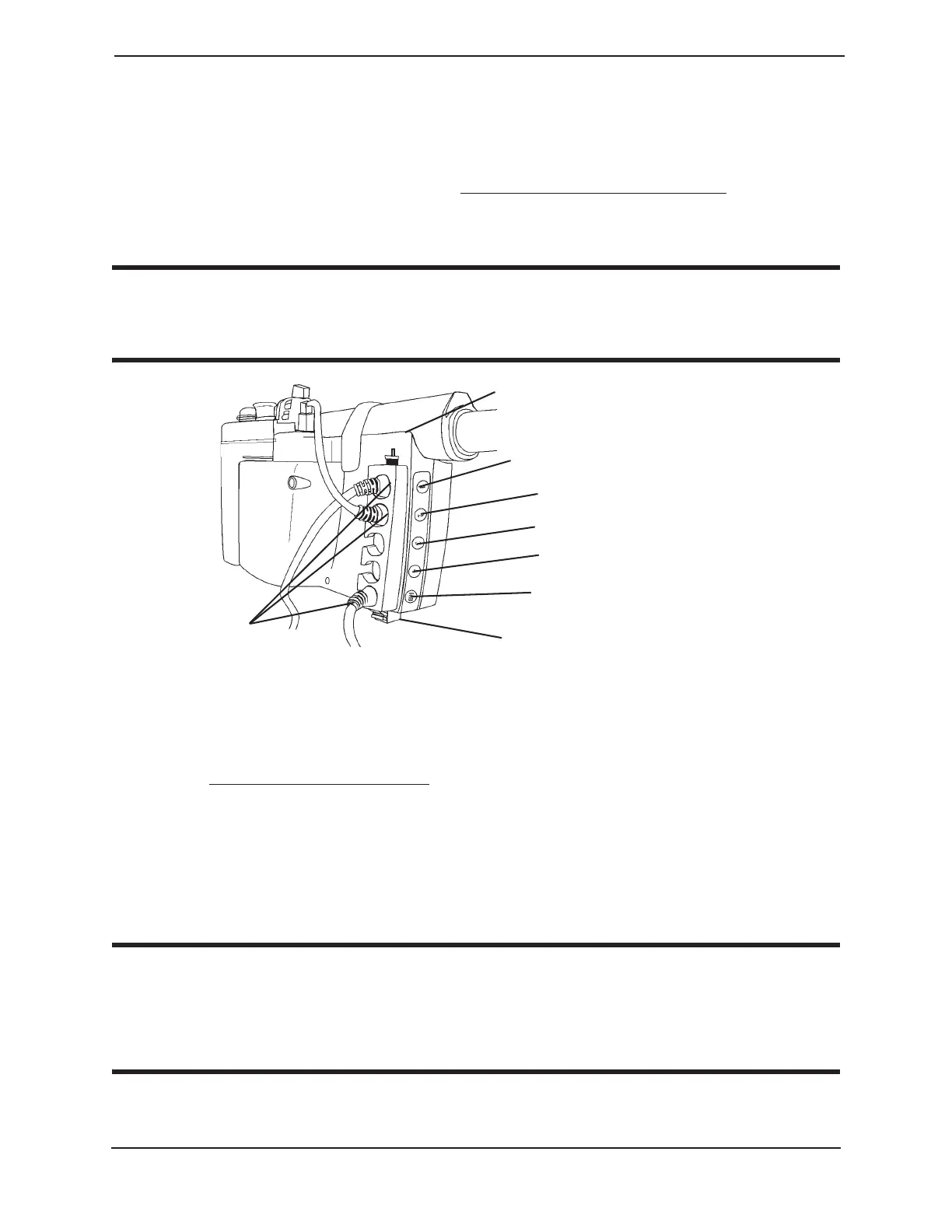

FIGURE 4.11 Inspecting the Bed - Electric Beds
Manual Beds
1. Raise and lower the cranks at the foot of the bed to make sure they work correctly.
Refer to Operating the Manual Bed
on page 16.
2. If no damage is found, set-up the bed for use.
3. If damage is found, contact an Invacare Customer Service Representative to report the
damaged items and request appropriate replacement parts or products.
Installing/Removing Cable Lock
WARNING
The following procedures are to be performed only by a qualified technician.
If the cable lock clips are broken have a qualified technician replace the cable lock.
Otherwise damage or personal injury could result.
NOTE: For this procedure, refer to FIGURE 4.12 on page 31.
BLUE - Head Spring Height Adjustment
Connectors
Through Junction
Box Slots
YELLOW - Foot Spring Height Adjustment
RED - Full electric Hi/Lo Motor
WHITE - DO NOT Use
GREEN - Pendant
Cable Lock
Junction Box
To Next Page
