SECTION 4—PACKAGING, HANDLING, AND SET-UP
Part No 1114836 23 IVC
™
Bed Series

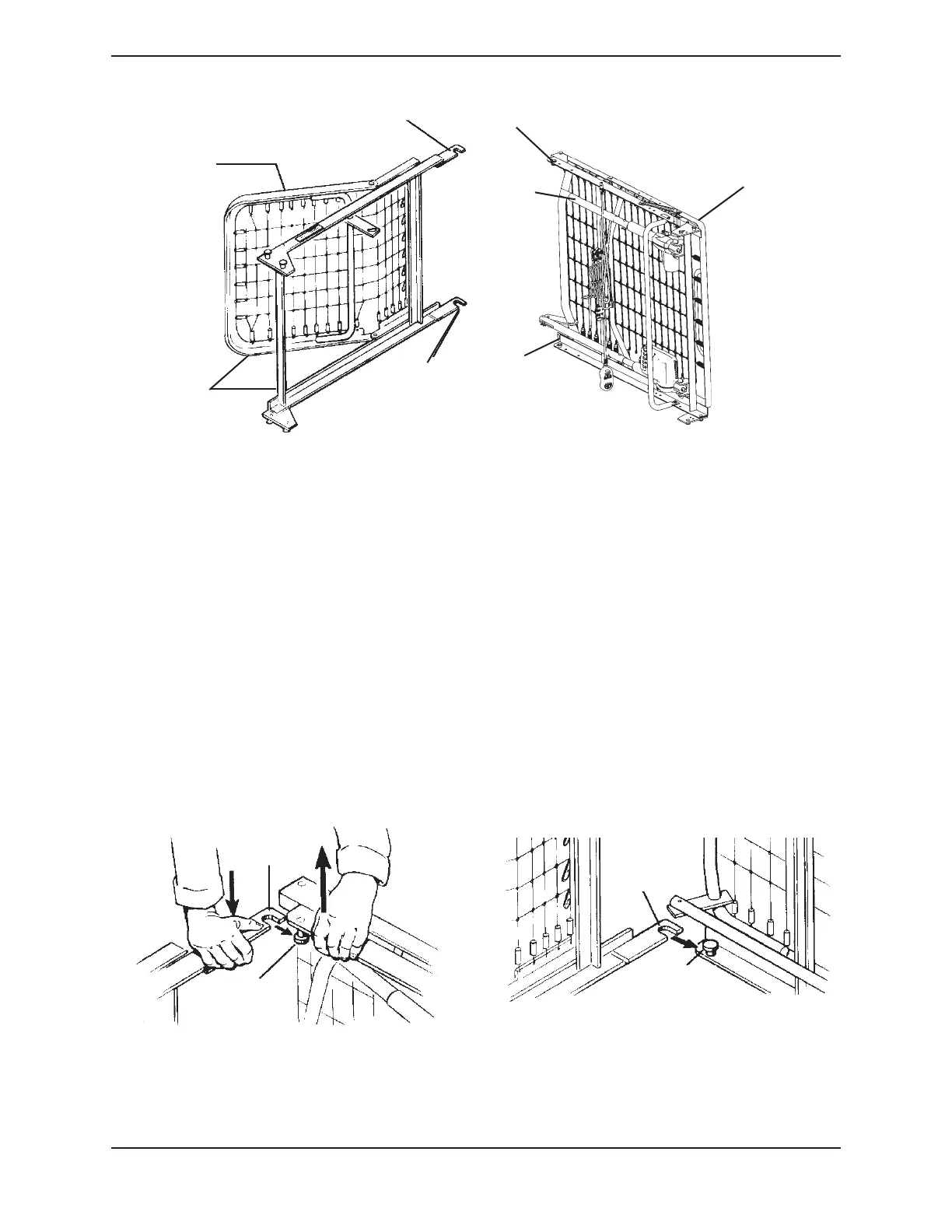

FIGURE 4.3 Set-Up
NOTE: For set-up purposes, the motors on the semi-electric (5890IVC and 5891IVC) and full
electric (5490IVC and 5491IVC) foot springs as well as the crank handles on the manual foot
springs (5770IVC) should be on your right.
9. Place the head and foot springs approximately 90° from each other.
10. Hook the bottom head spring center mounting latch to the bottom foot spring center
mounting rivet. Refer to FIGURE 4.4.
11. Hook the top head spring center mounting latch to the top foot spring center
mounting rivet. Refer to FIGURE 4.4.
NOTE: It may be necessary to lift the head spring or foot spring slightly to secure the mounting
latches and rivets.
12. After head and foot springs are connected, push the springs into a horizontal (straight)
position while keeping the springs on their sides.
FIGURE 4.4 Set-Up
Foot Spring
Section
Center Mounting Rivet
Center
Mounting
Rivet
Head
Spring Pull
Tube
Head Spring
Section
45°-90°
Center Mounting Latch
Center
Mounting
Latch
Center Mounting
Latch
Center
Mounting
Rivet
Center
Mounting
Rivet
Center
Mounting
Latch
