time from the highest point to the lowest one.
Setting range of P08.15: 0.0–100.0%
(relative to the set frequency)
Setting range of P08.16: 0.0–50.0%
(relative to the traverse range)
Setting range of P08.17: 0.1–3600.0s
Setting range of P08.18: 0.1–3600.0s
The counter counts the input pulse signals through
the S terminals (with the counter triggering
function) or HDI (P05.00=1).
When the counter achieves a fixed number, the
multi-function output terminals will output the
signal of "fixed counting number arrival" and the
counter go on working; when the counter achieves
a setting number, the multi-function output
terminals will output the signal of "setting counting
number arrival", the counter will clear all numbers
and stop to recount before the next pulse.
The setting counting value P08.26 should be no
more than the setting counting value P08.25.

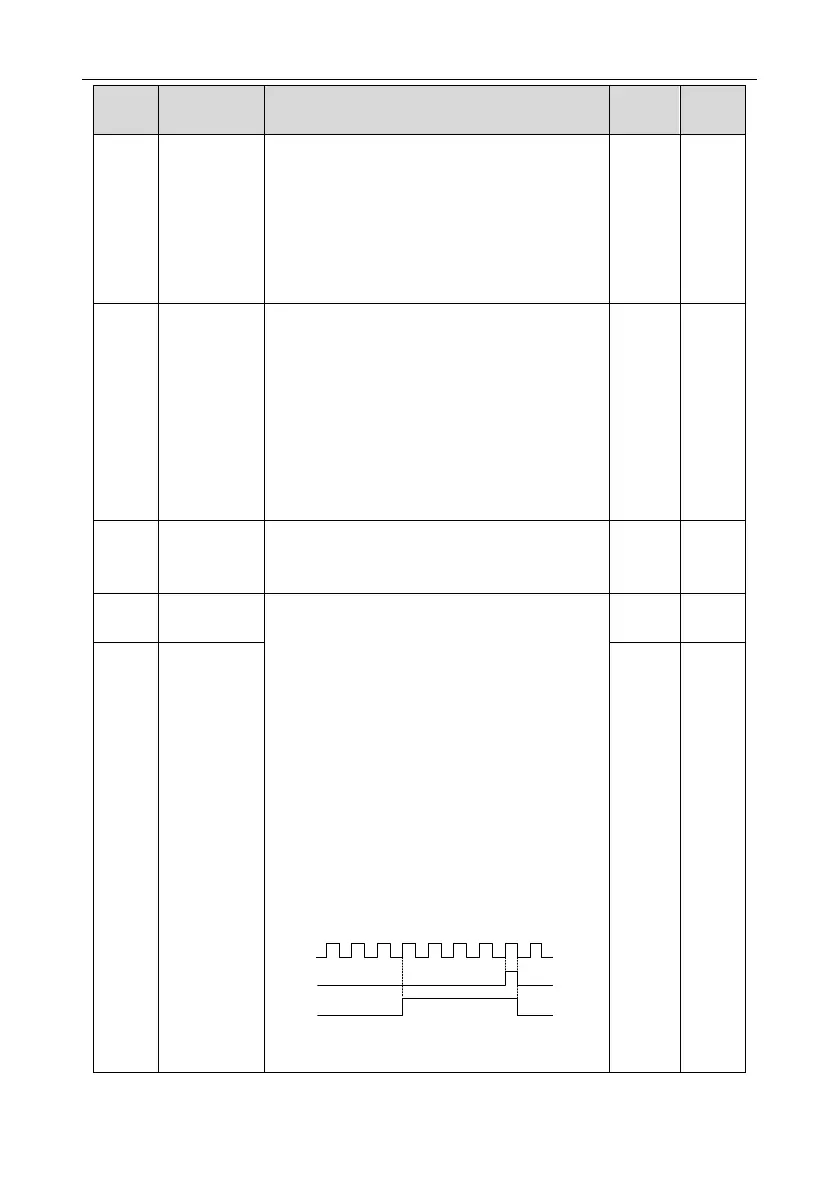

The function is illustrated as below:
