VS070QS-1618MDM1 Integrated Machine Product overview
202403 (V1.0) 9
Note:
1: The addresses of the X and Y elements are numbered in octal, for example:
Address X10 represents the 8
th
input point.
2: The addresses of the T elements are classified into three categories according to
timing precision:
100ms precision: T0–T209
10ms precision: T210–T251
1ms precision: T252–T255
3: The addresses of the C elements are classified into three categories according to
the width and function of count values:
16-bit increment counters: C0–C199
32-bit increment and decrement counters: C200–C235
32-bit high-speed counters: C236–C255
4: The element forcing function is provided to facilitate commissioning and user
program analysis, and thus improve commissioning efficiency. A maximum of 128
bit elements and 16 word elements can be forced simultaneously.
5： Some internal soft element resources of PLCs have been reserved for internal use.
Do not use these elements on the user program, if possible. For details, see the
IVC
Series Micro-PLC Programming Manual
.

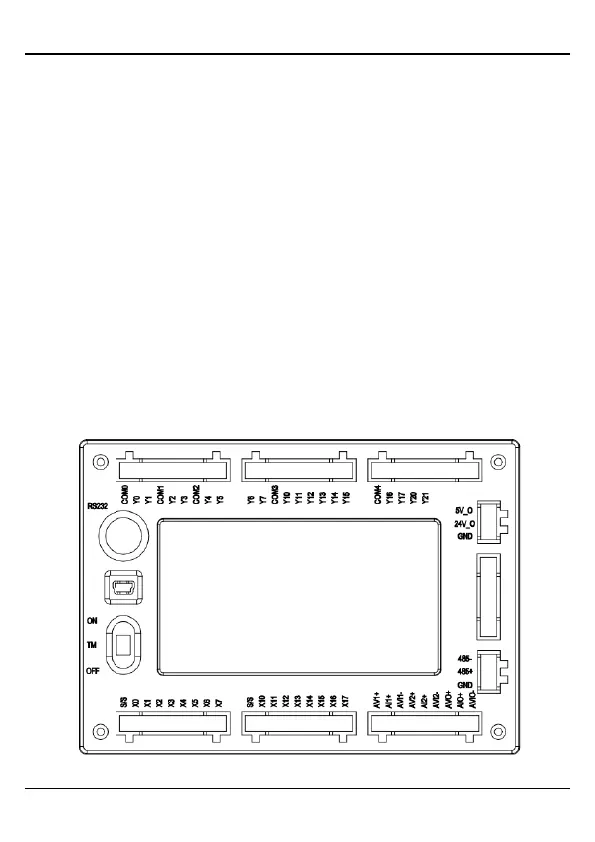

2.3.2 Terminal arrangement of VS070QS-1618MDM1 integrated machine
