VS070QS-1618MDM1 Integrated Machine Product overview
202403 (V1.0) 20
Item
Parameters
Analog input range
0–10 V DC, 0–20 mA
Analog output range
0–10 V DC, 0–20 mA
Total precision
±1% of the full range
Resolution
5mV, 10μA
Converting speed
2ms/channel
2.3.8 Communication ports
VS070QS-1618MDM1 integrated machine provides three asynchronous serial
communication ports, namely COM1, PORT0, and PORT1. They support the baud
rates of 115200, 57600, 38400, 19200, 9600, 4800, 2400, and 1200 bps. The

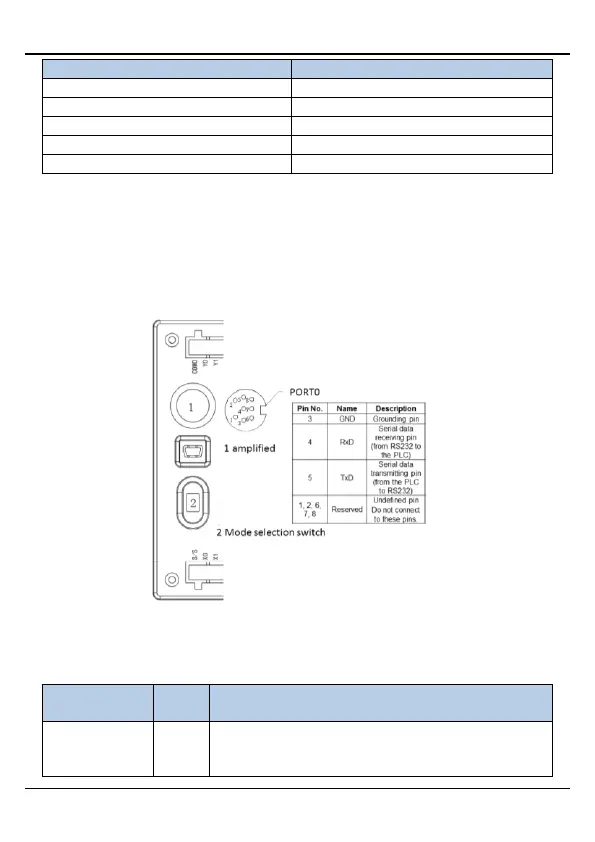

communication protocol of PORT0 is determined by the mode selection switch as
shown in the following figure.
As a specialized interface for user programming, PORT0 can be forcibly switched to
the programming protocol through the mode selection switch. The relationship
between PLC operation status and the protocol used by PORT0 is shown in the
following table.
Mode selection
switch position
State
PORT0 running protocol
ON
Run
Depend on the user program and its system
configuration.
It can be the programming port, Modbus, free-port, or
