INVT VS070QS-1618MDM1

VS070QS-1618MDM1 Integrated Machine Product overview
202403 (V1.0) 13

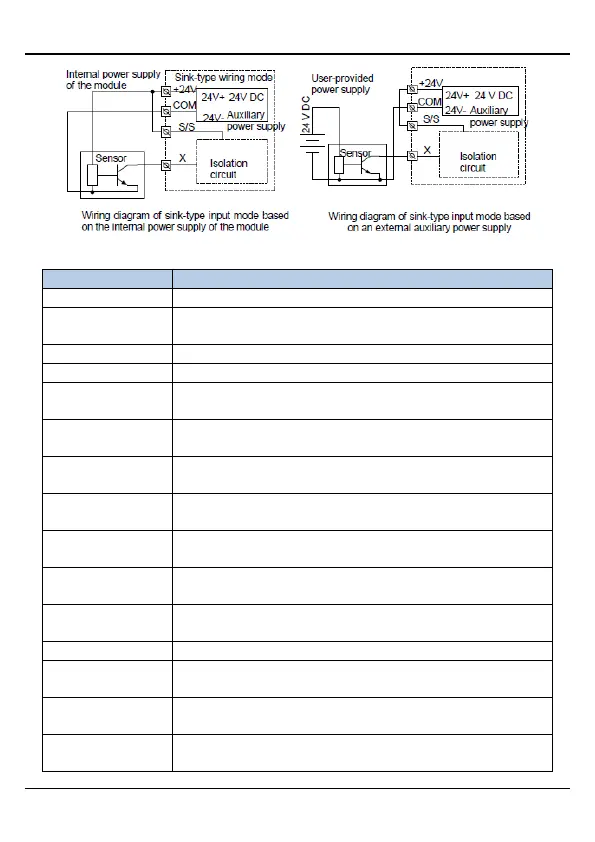

2.3.5 Transistor output electrical specifications
Item
Description
Output type
Transistor output
Number of output
channels
4 channels
Output mode
Sink
Output voltage class
24VDC (-10% – +10%)
Output load
(resistance)
0.5A/point, 2A/group
output load
(inductance)
7.2W/point, 24W/group
Hardware response
time
≤2μs
Load current
requirement
Load current ≥ 12mA when output frequency is greater than
10kHz
Max. output
frequency
100kHz for resistance load, 0.5Hz for resistance load, and
10Hz for light load
Leakage current at
OFF
Below 30μA (24V typical voltage)
Max. residual
voltage at ON
≤0.5VDC
Isolation method
Capacitive isolation
Common terminal
method
Y0/Y1/Y2/Y3－COM0/COM1 (share common terminal)
Short-circuit
protection function
Supported
External inductive
load requirement
Flyback diode needed for external inductive load connection.
Refer to Figure2-1 for wiring diagram.
