INVT XG50KTR

Three-phase Grid-tied Solar Inverter Product overview
6
2.2 Product appearance

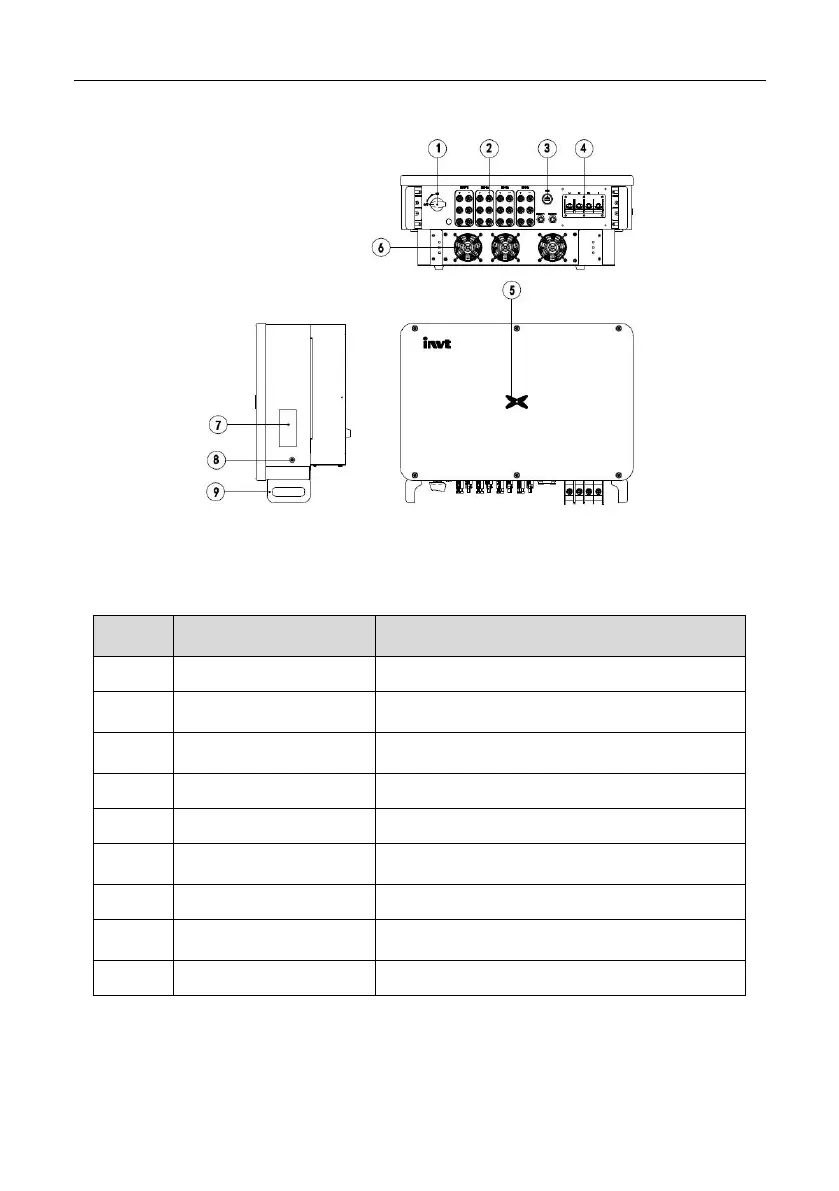

Figure 2.3 Appearance of the three-phase PV inverter
Table 2-1 Description of key exterior components of three-phase PV inverters
Serial
number
Name
Description
1
DC switch
Connect DC input
2
DC input interface
Inverter DC input terminal, connected to the PV
array
3
Communication interface
RS485 communication interface and its
extension port EXT
4
AC terminal
Inverter AC output port, connect to public grid
5
LED pilot lamp
Instructions inverter current working condition
6
Fan Installation
components
Air inlet, for fixing the fan
7
Nameplate
Mark the inverter rating parameter
8
Ground terminals /4
Two nos, at least one was selected for
connection
9
Base handle
Two left and right for handling of inverter
