INVT XG50KTR

Three-phase Grid-tied Solar Inverter Product overview
9
Table 2-3 Dimensions and net weight of the inverter
Model
Height(mm)
Width(mm)
Depth(mm))
Net weight(kg)
XG50KTR
500
650
260
42.5
XG60KTR
500
650
260
45.3
XG70KTRL
500
650
260
45.3

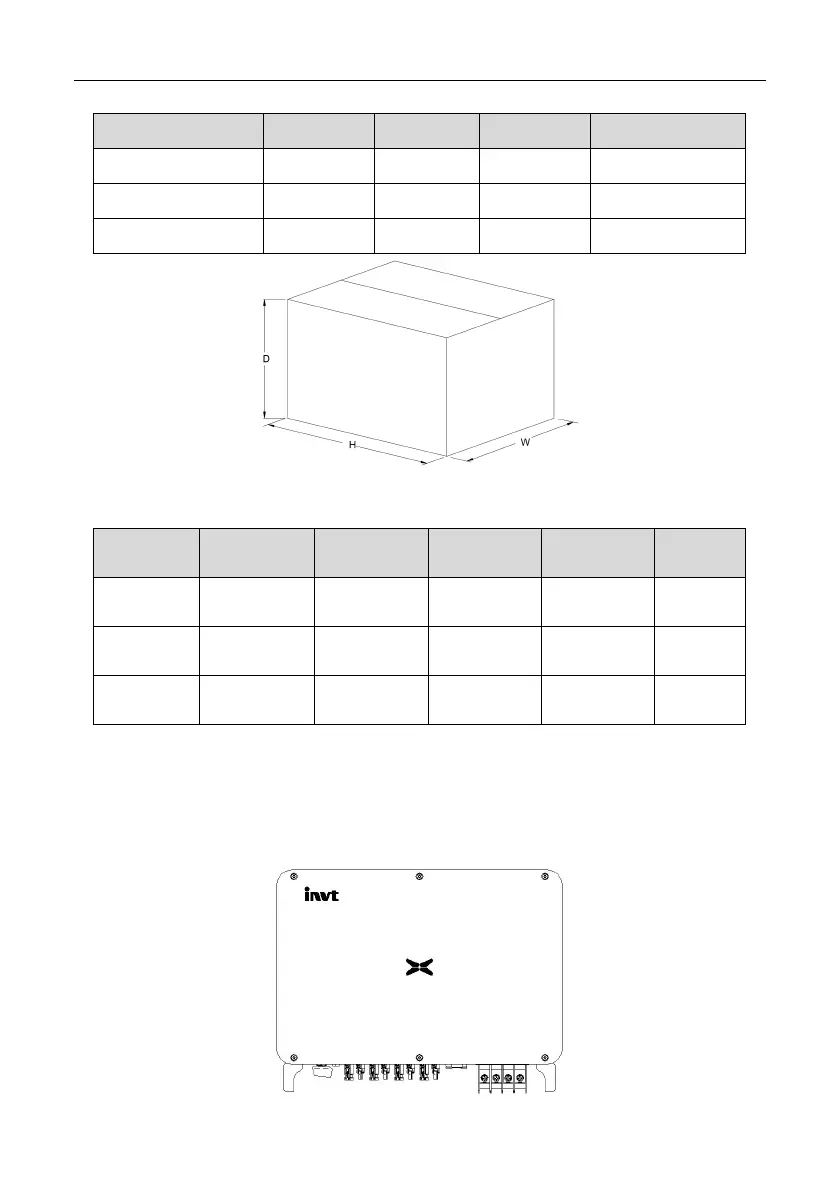

Fig 2.6 Dimension of paper package
Table 2-4 Package dimension and gross weight
Model
Height(mm)
Width(mm)
Depth(mm)
Weight(kg)
Package
material
XG50KTR
785
640
385
47.2
Corrugated
case
XG60KTR
785
640
385
51
Corrugated
case
XG70KTRL
785
640
385
51
Corrugated
case
2.6 The LED light panel
The LED indicator panel as the human-computer interaction interface, may indicate the working
state of the inverter.
2.6.1 LED light panel
