5.4.3 Legend
Element Description Measurement unit
GAP Distance between the ground and the field of
view of the sensor
cm
α Sensor inclination degrees
h Sensor installation height cm
d Detection distance (linear) cm
Dalarm Detection distance (real) cm
S
1
Start detection distance cm
S
2
End detection distance cm

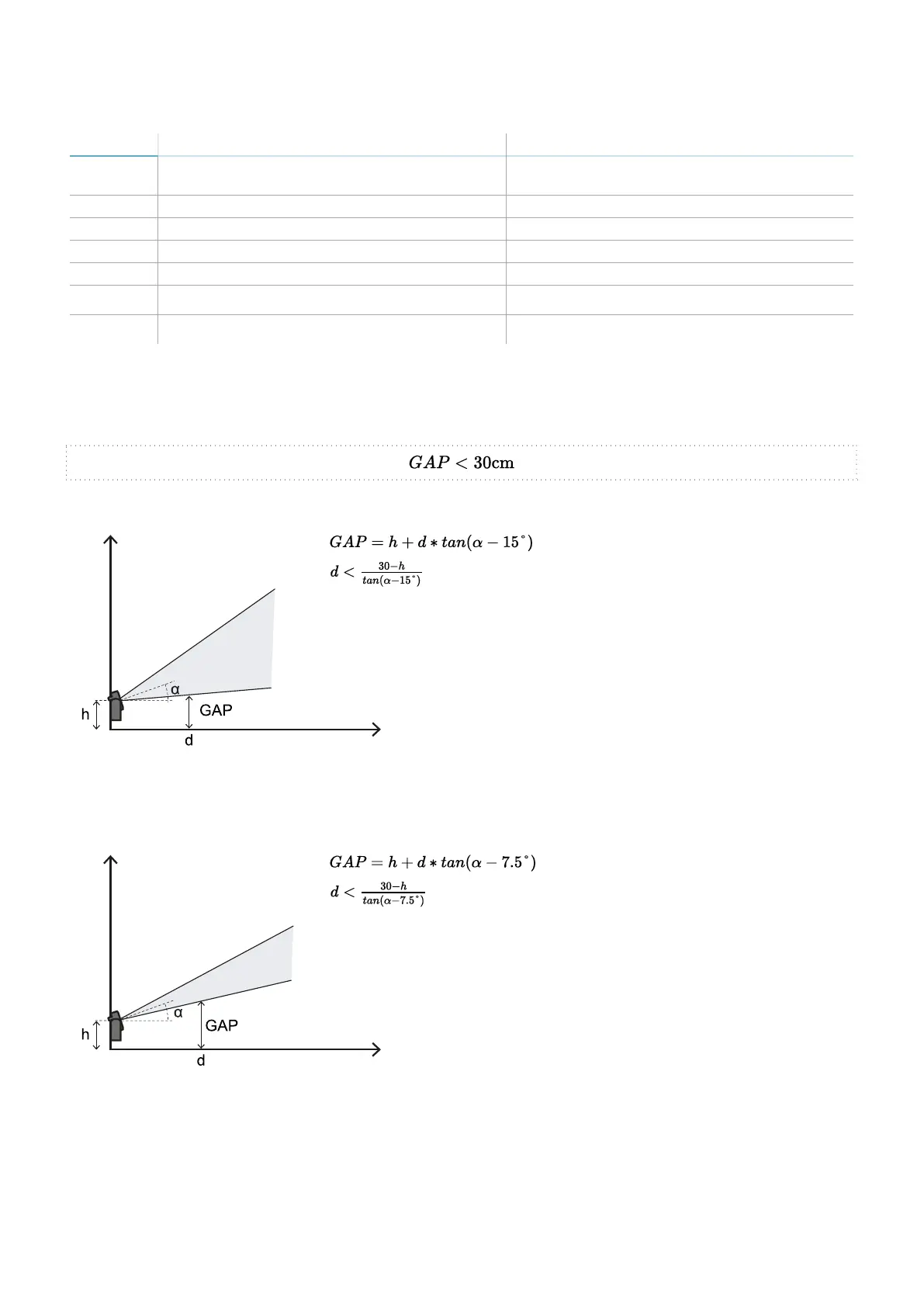

5.4.4 Configuration 1
In this configuration, the field of view of the sensor never intersects the ground.
To guarantee that the sensor also detects access by people crawling, respect the following condition:
110° field of view
50° field of view
5. Sensor position
LBK System Series| Instruction manual v1.2 SET 2021|SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA
57
