5. Sensor position
5.4.5 Configuration 2

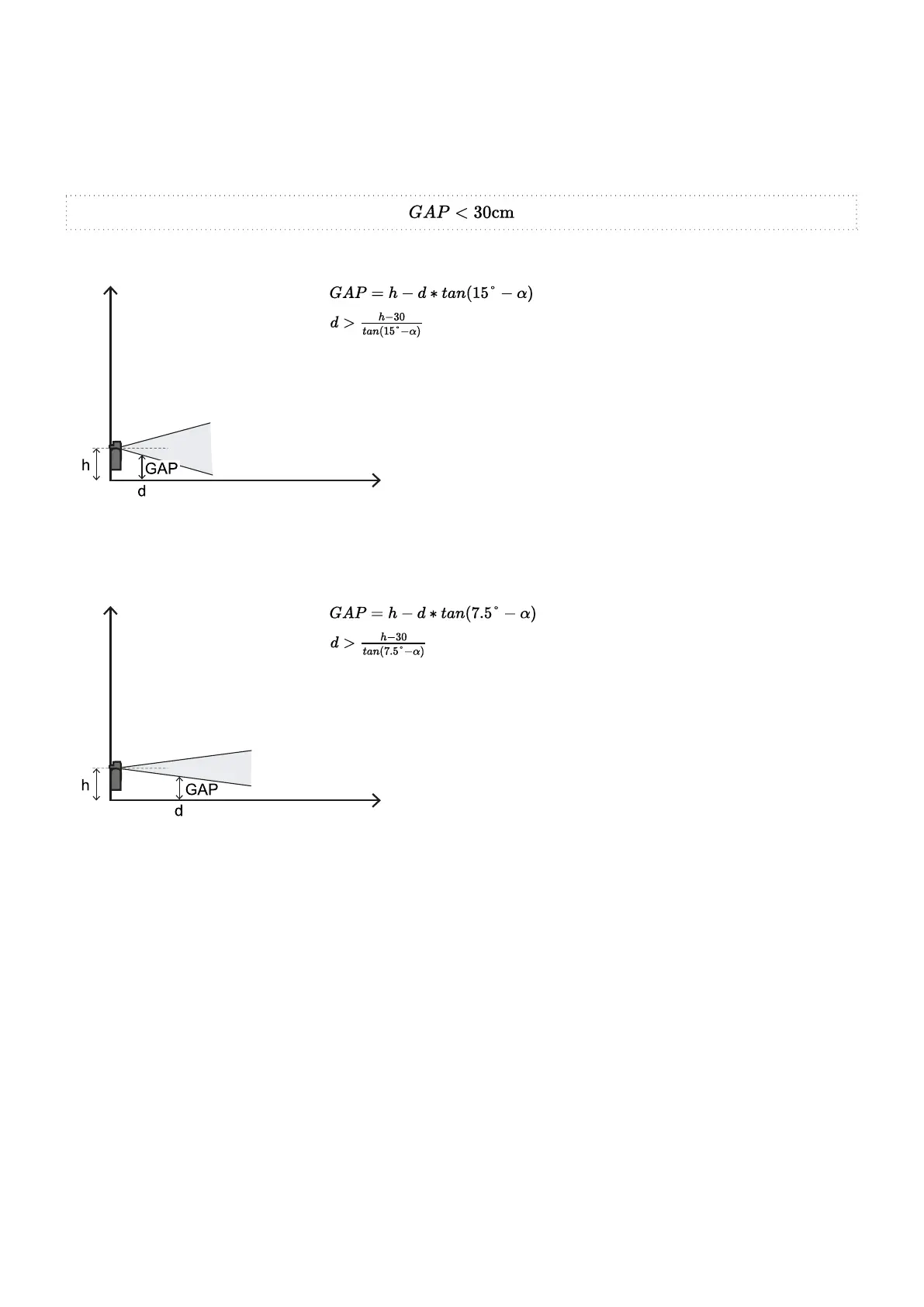

In this configuration, the upper portion of the field of view of the sensor never intersects the ground.
To guarantee that the sensor also detects the presence of people crawling near the sensor, respect the following
condition:
110° field of view
50° field of view
