5.4.6 Configuration 3
In this configuration, the upper and the bottom portions of the field of view of the sensor always intersect the
ground.

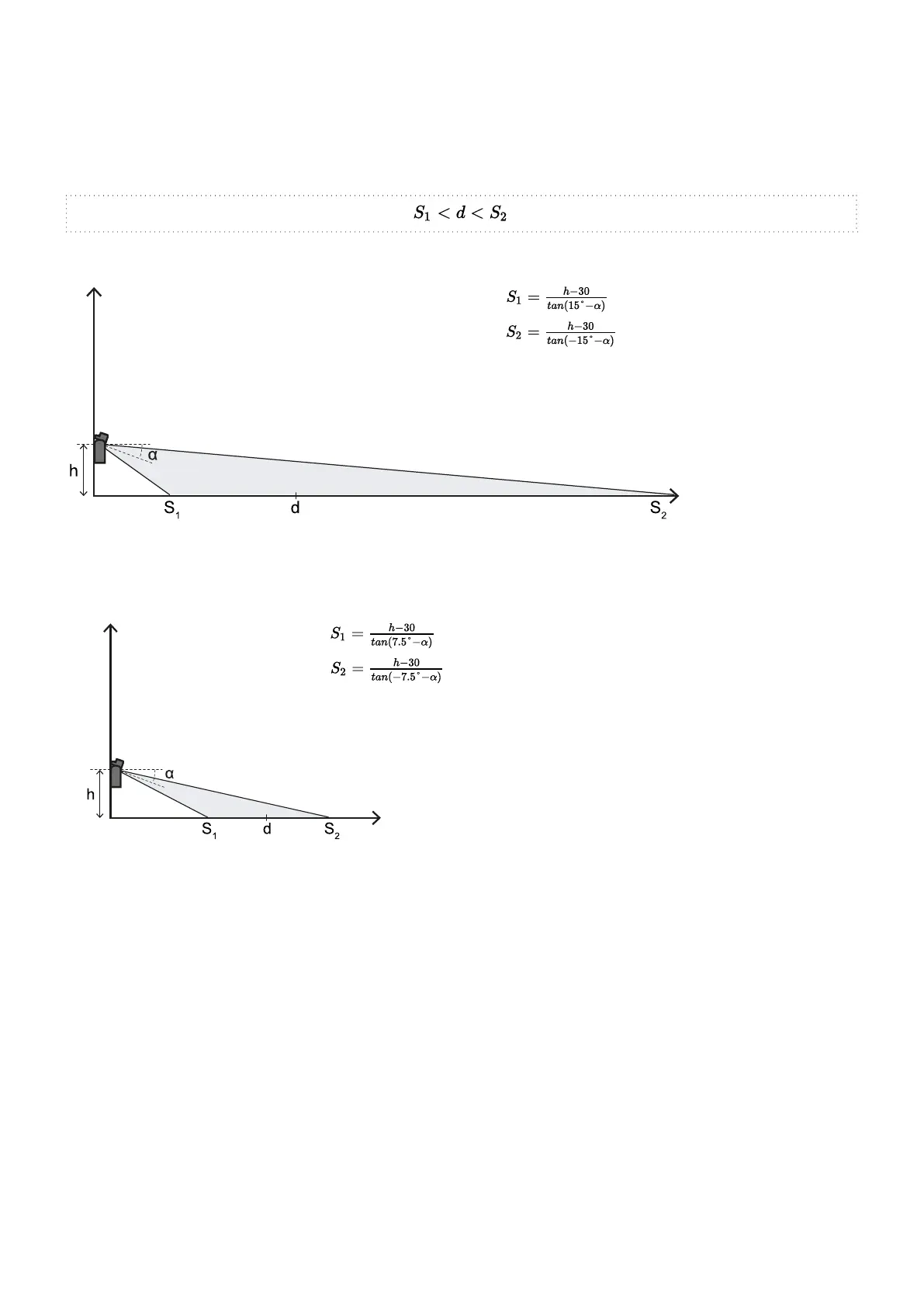

To guarantee optimum performance, respect the following conditions:
110° field of view
50° field of view
5. Sensor position
