Iridium Communications, Inc. Information Contained in this Guide
Iridium 9523 Product Developers’ Guide is Subject to Change Without Notice
Revision 2.6
Iridium Communications, Inc. Distribution of Guide Restricted
Proprietary & Confidential Information Page 15 of 115 to Product Developers
Only

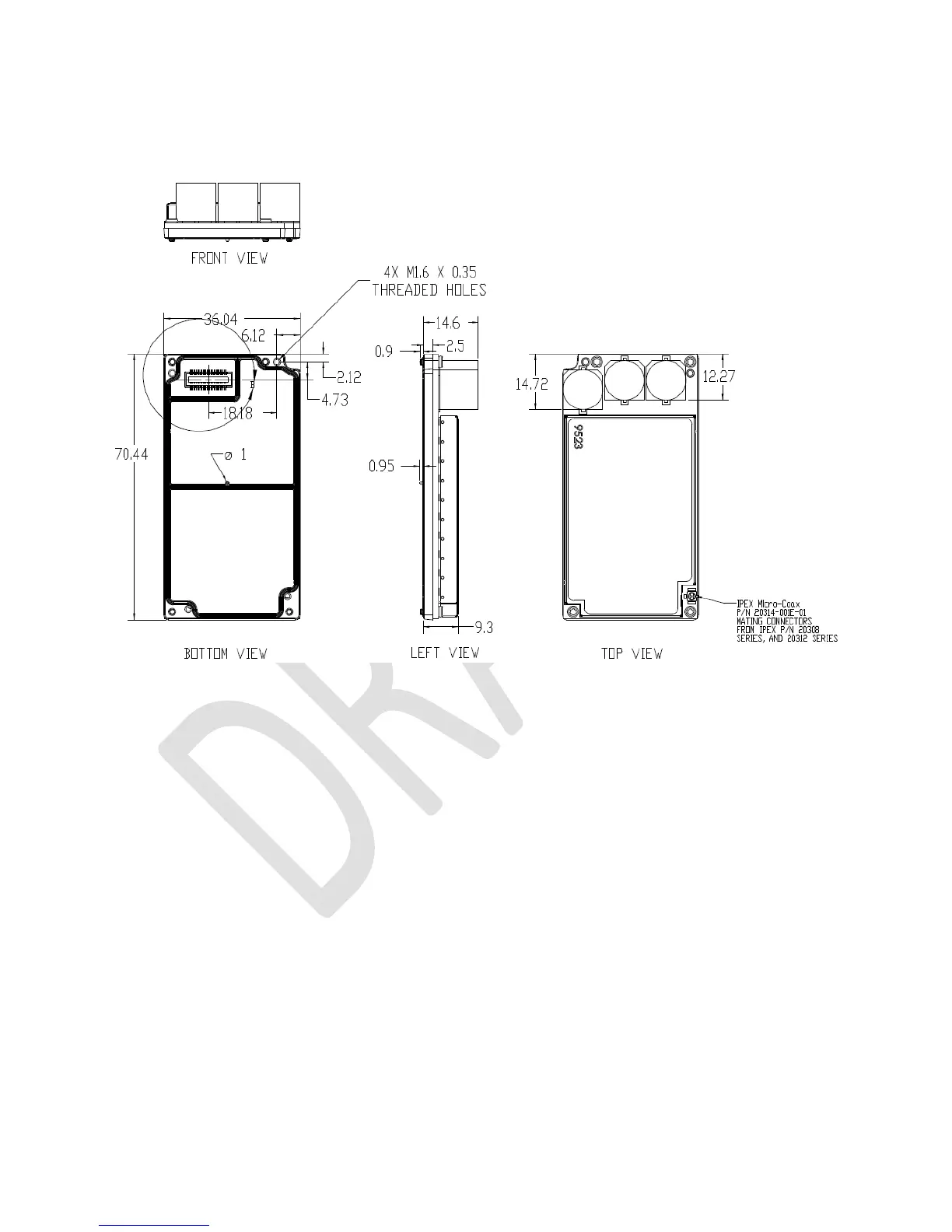

Figure 2: Dimensions of the Iridium 9523
(Dimensions in millimeters)
2.2 Field Application Board Mounting
The 9523 is designed to be mounted to an FA board as illustrated in Figure 3.
