1.3 Installation
IGX/IGB Series Operation Manual No. 0202A page 5
1
BEFORE OPERATING MACHINE
1.3 INSTALLATION

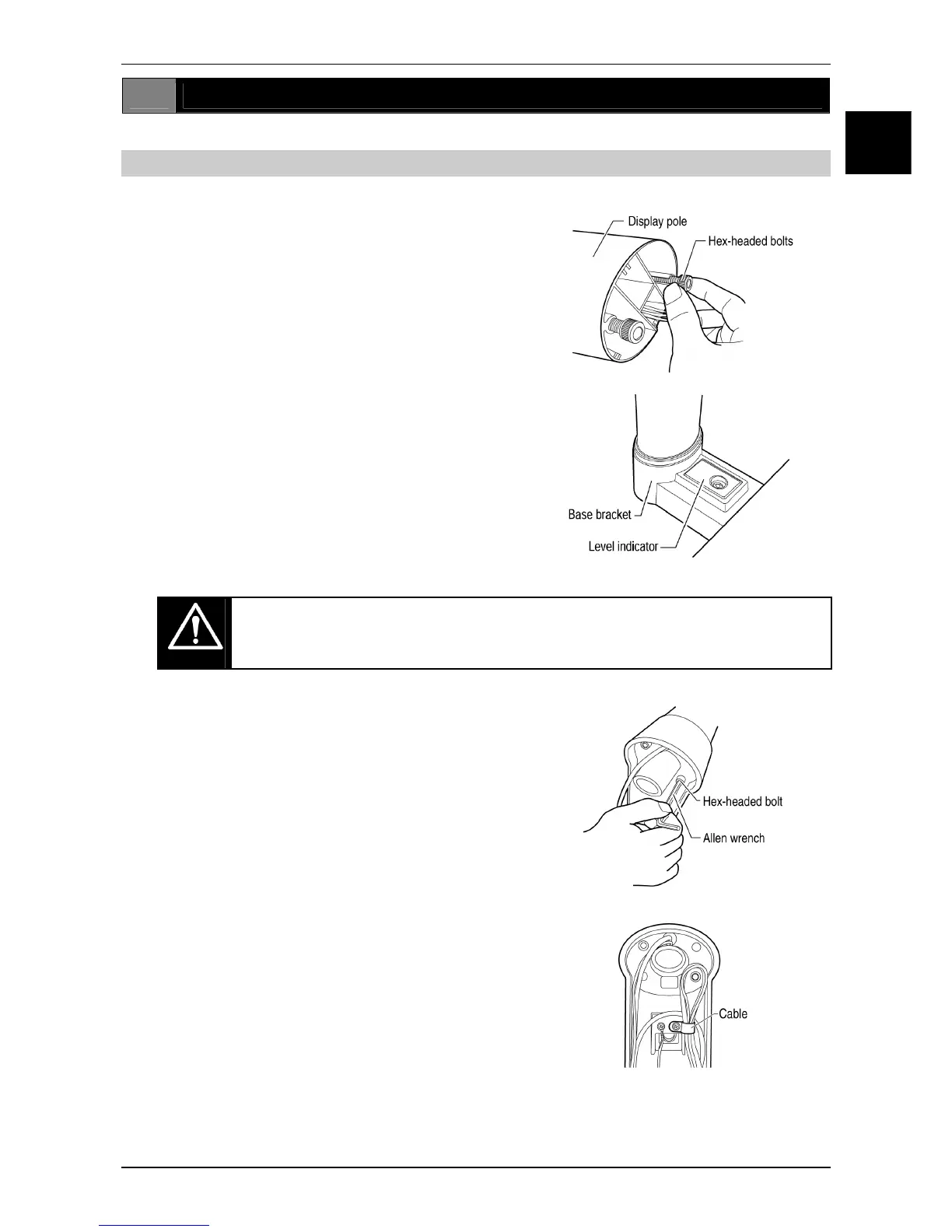

Assembling the Scale
1
Remove the two hex-headed bolts from the
bottom of the display pole.
2
Carefully insert the bottom of the display pole
into the base bracket while pulling out the slack
in the cables.
CAUTION
If the cable insulation is damaged, water may penetrate into the cable and cause
inaccurate weighing, or the core material may corrode, causing the scale to fail.
3
Tighten the two hex-headed bolts with an Allen
wrench.
4
Bundle the excessive cables with a clamp so as
to prevent cable damage.
