Conguration

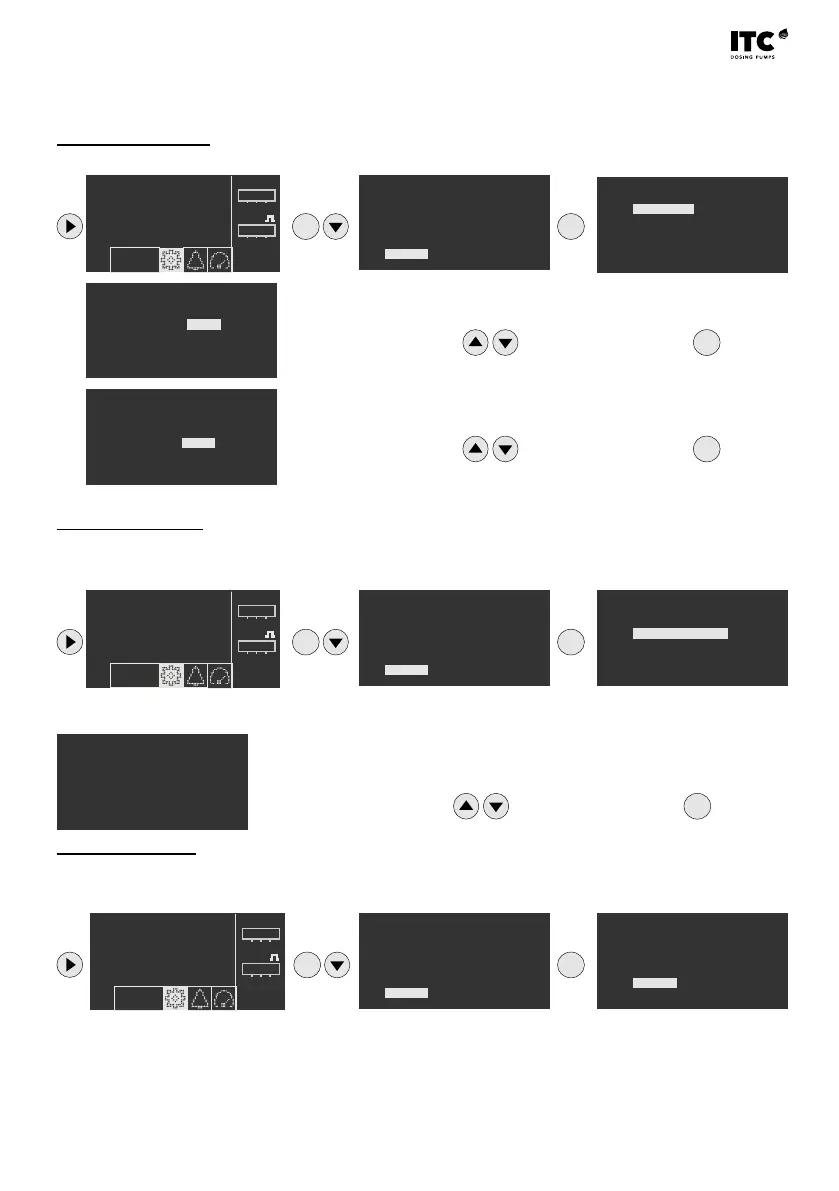

4.2.4. Inputs/outputs
4.2.4.1 Pressure input
Calibration of the 4 - 20 mA pressure transducer input.
4.2.4.2 Flow detector
The ow detector is an accessory that allows the pulses of the supplied ow to be monitored.
Enter the pressure value corresponding to 4 mA
Change by pressing
and conrm by pressing
ENT
Enter the pressure value corresponding to 20 mA
Change by pressing and conrm by pressing
ENT
4.2.4.3 Pulse output
Conguration of the volume/pulse in order to monitor the pump ow.
Enter the number of pump cycles during which no pulse is
detected for the alarm to be activated.
Change by pressing
and conrm by pressing
ENT
