ITC DOSTEC AC - Installation; General

32
A
B
A B C
AC3
122 212 6.5 mm
4.8 8.3 0.26 in
AC2/1
90 155 6.5 mm
3.5 6.1 0.26 in
C
Installation
5. INSTALLATION
5.1. GENERAL
It should be installed in a place protected from water, away from heat sources and with renovation of air.
Place the pump vertically over a totally rigid surface to achieve a proper lubrication of all inner elements.
Provide sufcient space to facilitate basic maintenance and installation/removal of the pump.

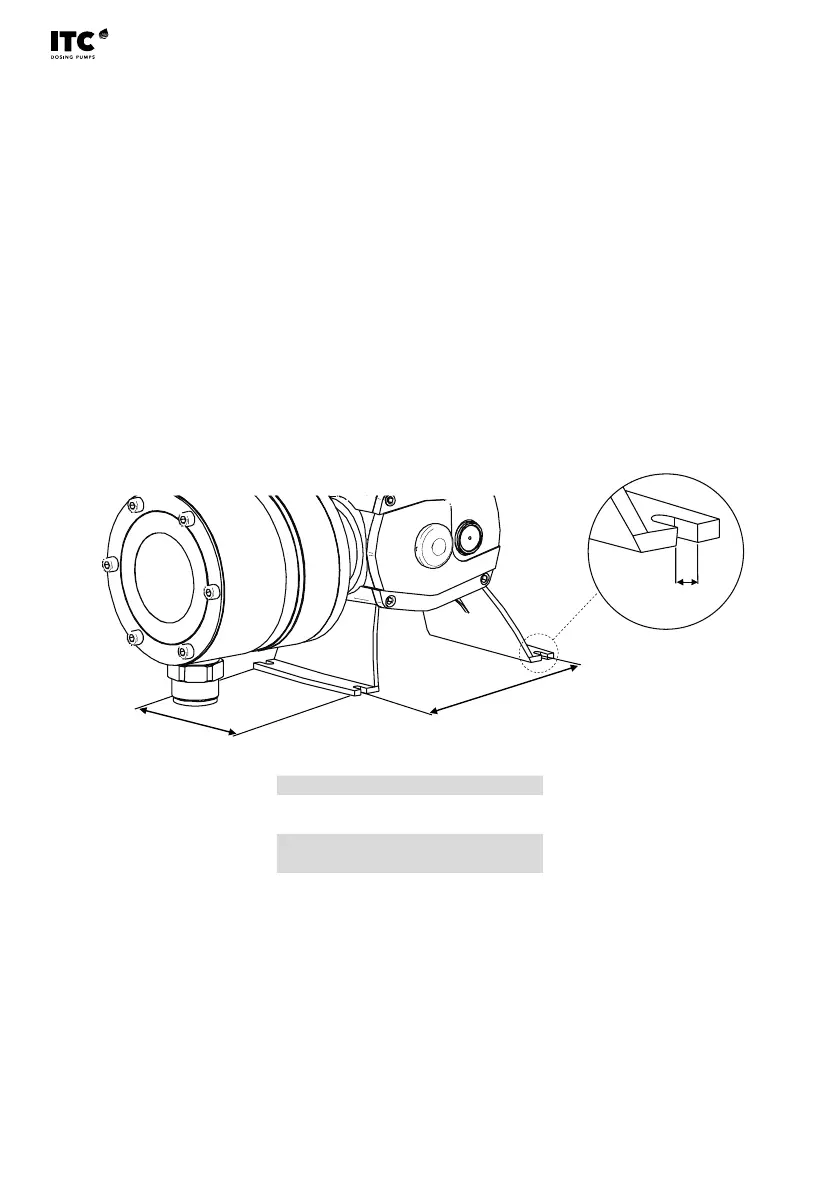

Fix the pump to the chosen at surface using 4 screws
(See drawing).
