Conguration

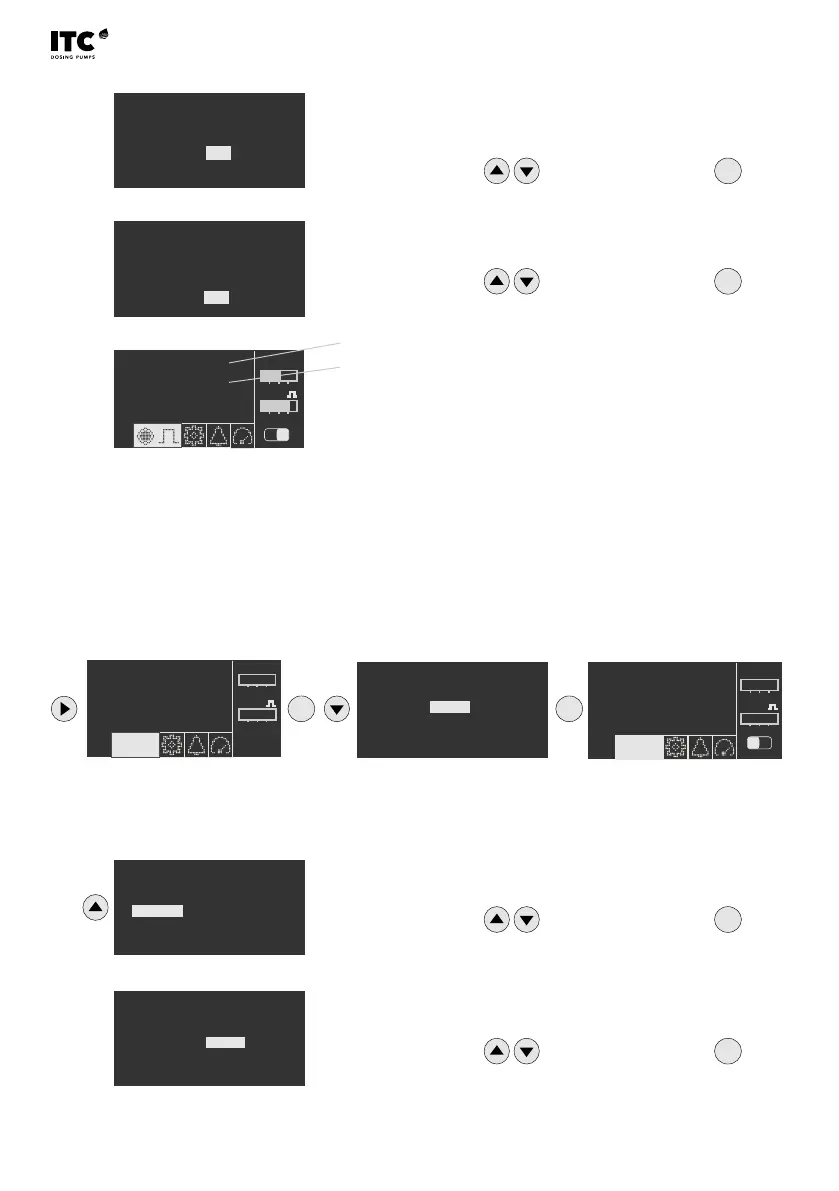

4.1.3. Analogue mode
This mode allows dosing proportional to an analogue 0/4 - 20 mA input.
Select ON to perform proportional dosing with a volume limit.
The pump will stop when it reaches the ENT maximum volume
to be dosed.
Change by pressing
and conrm by pressing
ENT
Set the desired maximum volume.
Change by pressing and conrm by pressing
ENT
Select mA input for the rst point
Change by pressing and conrm by pressing
ENT
Select the ow in % for the rst point in mA
Change by pressing and conrm by pressing
ENT
Volume to be dosed
volume dosed
Pressing will cause the ON/OFF indicator to toggle to ON and
the pump will start if the Remote Activation input is activated.
The pump will stop when it reaches the maximum volume set.
4.1.3.1 Analogue mode settings
