ITC DOSTEC AC - Installation Recommendations

37
L
Ø
L
h
Ø
*
*
p>h
*
Installation

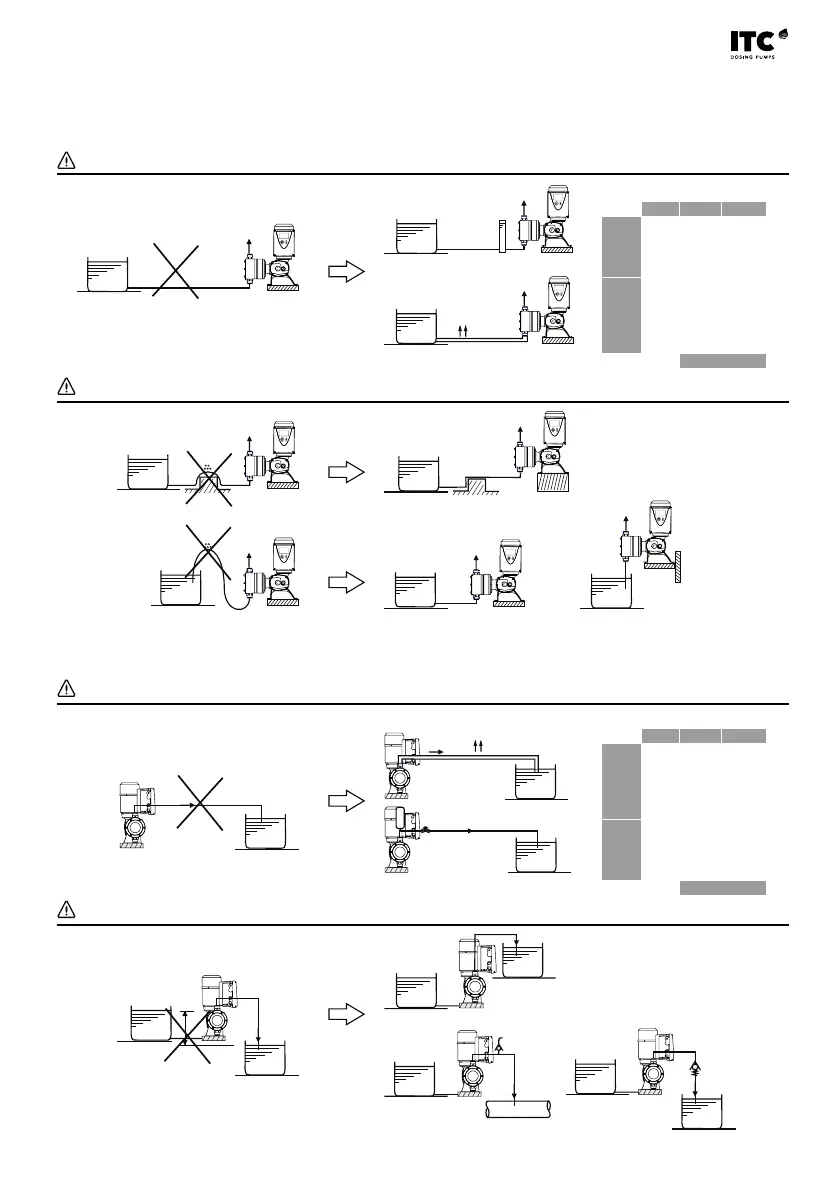

5.4.2. Installation recommendations
Long discharge: L> 5 m (16 ft)
Long suction: L> 2 m (6.5 ft)
Air in suction
Siphon
DISCHARGE
SUCTION
PIPE SIZE
Øint L ≤ 2 m L ≤ 5 m
AC1/ 2
6 50 25
15 300 100
20 200
25 300
AC3
30 800 500
40 1000 800
50 850
60 900
70 1000
Q max. (l/h)
PIPE SIZE
Øint L ≤ 2 m L ≤ 10 m
AC1/ 2
6 80 10
15 300 70
20 100
25 200
30 300
AC3
30 1000
40 400
50 600
60 1000
Q max. (l/h)
