Conguration
Analogue output value (mA)
External pulse output (pulses/min)
Level 2 sensor alarm output
Alarm output
Ventilation outlet
4.4.2 Counters
Analogue input value (mA)
External pulse input value (Hz)
Pressure sensor input value (bar/psi)
External pulse input value (ON-OFF)
Remote control input
Number of strokes per minute
Flow sensing value
Frequency (Hz)
Motor voltage (V)
Current (A)
Temperature (°C)
Input voltage (V)
4.4 MONITOR

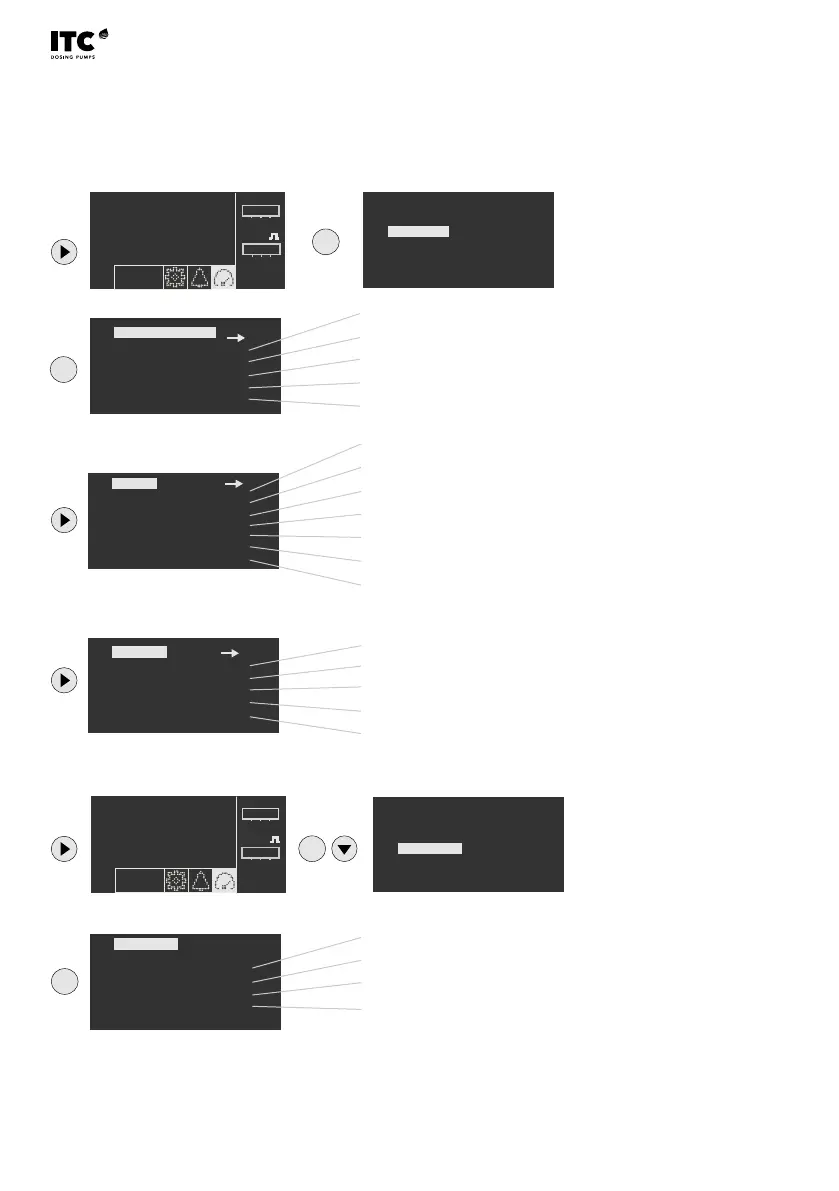

4.4.1 Real time
Real-time working parameters
Total cycles
Cycles since last reset
Volume since last reset
Total operating time (hours)
