Oscilloscope Functions
Copyright ©ITECH Electronic Co., Ltd. 49
Parameter Name
Description
Function
Knob selection: the following variables can be
adjusted by rotating the knob
 Volt-Range: voltage range
 Curr-Range: current range
 Volt-Base: voltage base
 Curr -Base: current base
 Trig-Level: trigger level
 Trig-Delay: trigger delay

Trig-TimeBase: TimeBase
Run/Stop
Run/stop: press the corresponding soft key to run
or stop the waveform status.
Auto
Automatic adjustment key: when the
corresponding soft key is pressed, the input signal
of the power meter will be calibrated automatically
to display the best effects of input signals.
Single
Single measurement key: when single
measurement is enabled in the Stop status, the
stop status is enabled again after one
measurement based on the current data updating
rate. When single measurement is enabled in the
Run status, the instrument immediatel
y restarts
one measurement and then enters the Stop
status.

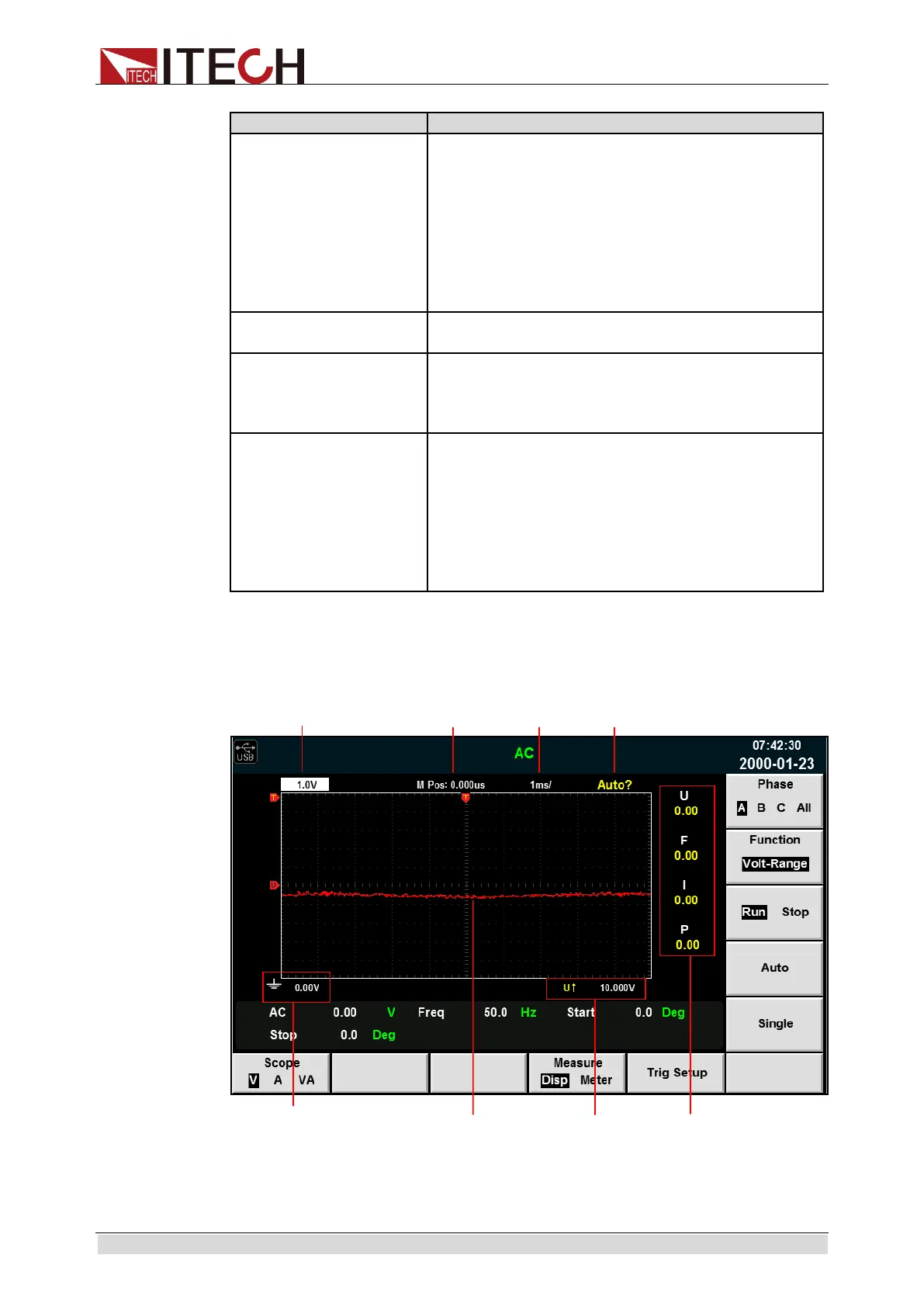

Introduction to waveform display interface
Voltage grid
Trigger delay Time grid
Trigger state
The voltage difference between
ground level and point
of center vertical
Measuring
parameters
Trigger level
Wave
