Installation
Copyright ©ITECH Electronic Co., Ltd. 21
current value. For specifications of test cables and maximum current values,
refer to A.1 Specifications of Red and Black Test Cables for more information.
Connecting the DUT (Local Measurement)
The instrument supports two kinds of wiring methods with the DUT: local
measurement and remote measurement (SENSE). The default test mode is
local measurement.

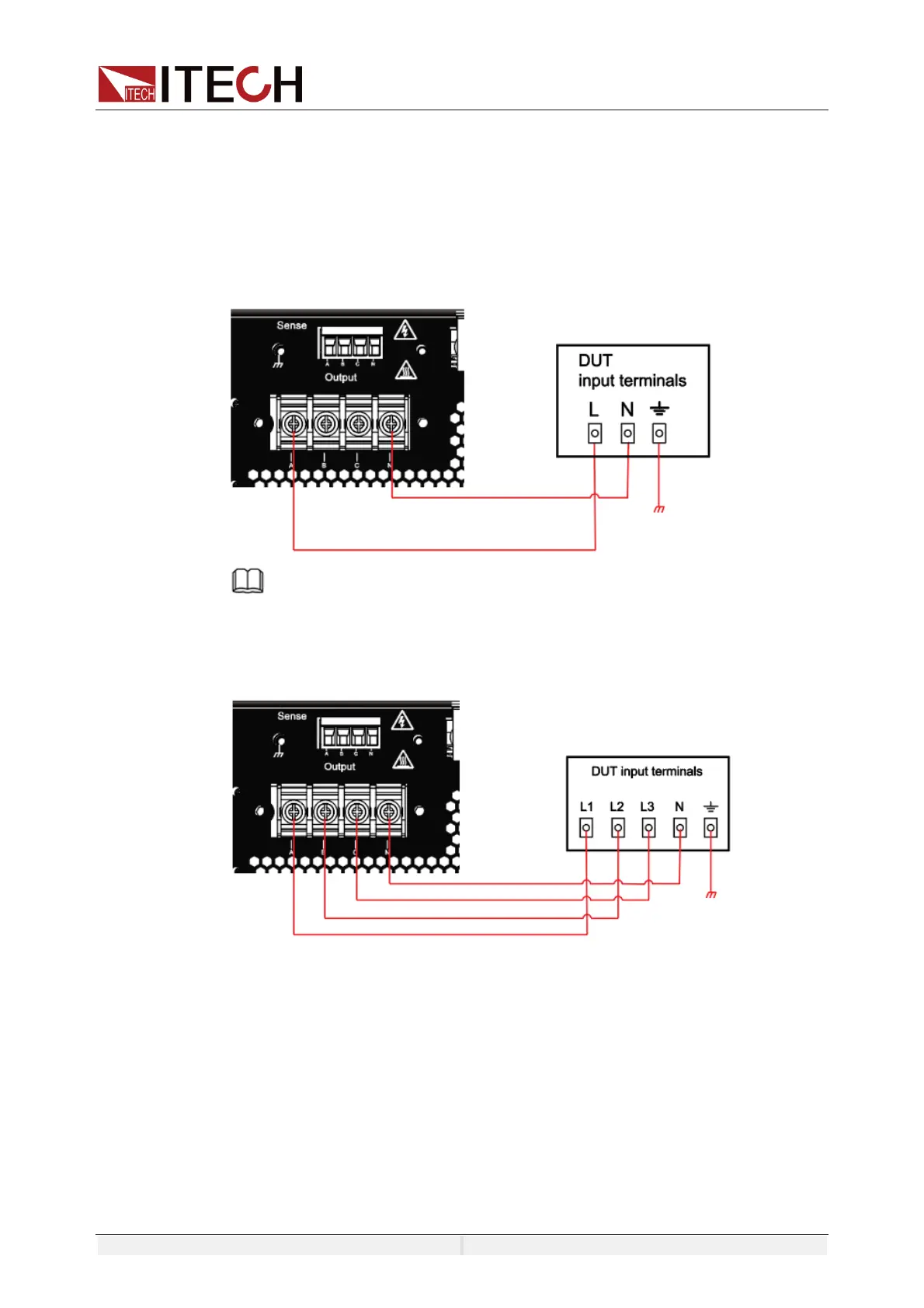

z The connection diagram of single phase is shown as follow:
NOTE
When the output voltage has DC voltage, the output terminal L is positive, and N is
negative.
z The connection diagram of three phase is shown as follow:
