Measurement Functions
Copyright ©ITECH Electronic Co., Ltd. 59
Parameter
Description
Udc
DC voltage
Idc
DC current
Upk+
Positive voltage peak value
Upk-
Negative voltage peak value

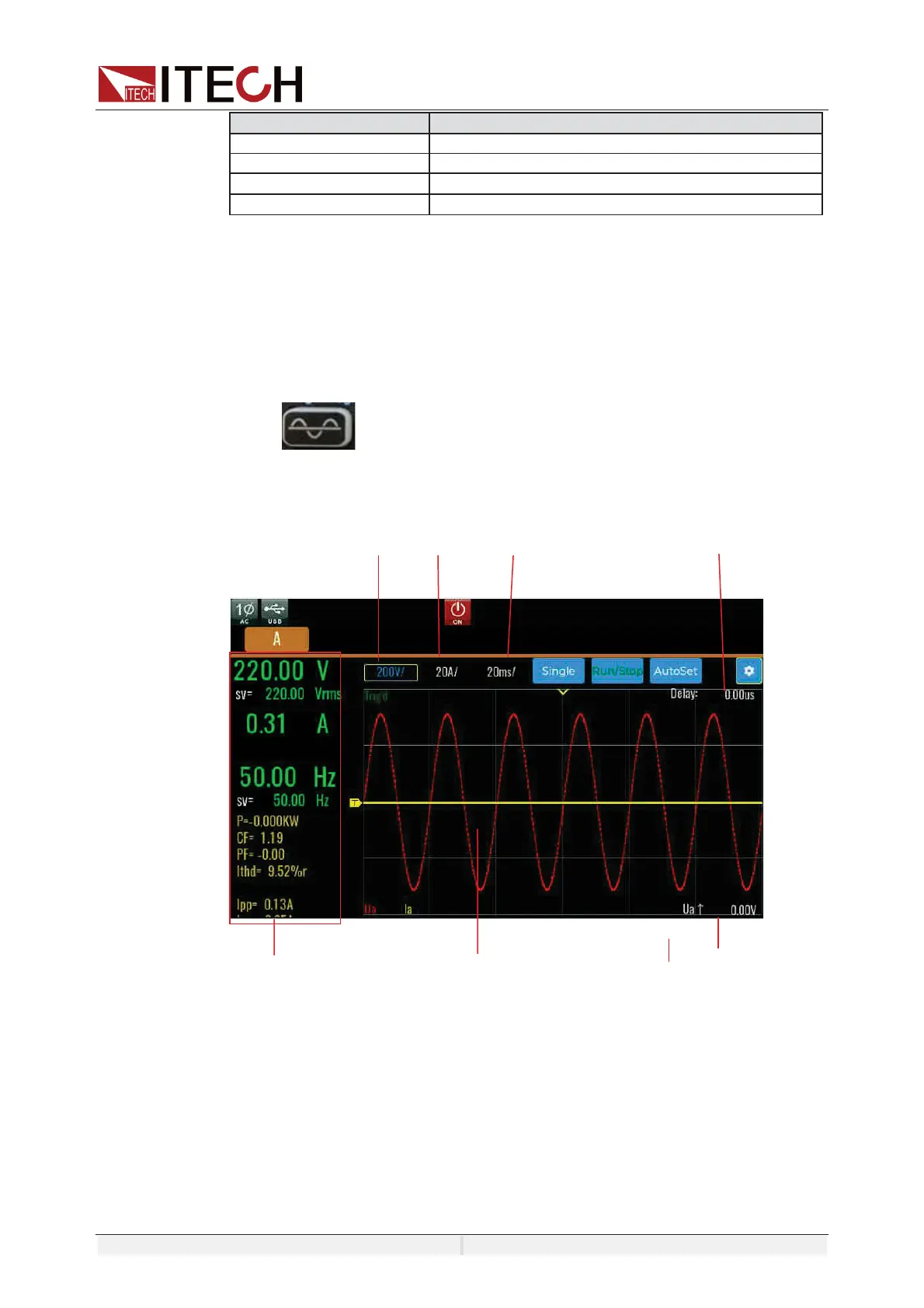

7.2 Oscilloscope Mode
IT7900 series source has the function of displaying the waveform based on
sampling data. The user can select to display or hide the voltage and current
waveform of the input unit. Only the necessary waveform is displayed, which
can facilitate observation. The waveform display interface includes the vertical
axis and horizontal axis.
Press on the front panel and the following waveform display interface
will appear. Different modes display different interfaces. the Oscilloscope
interface is shown in the figure below.
Description of keys on the waveform display interface:
z Single: Single measurement key: when single measurement is enabled in
the Stop status, the stop status is enabled again after one measurement
based on the current data updating rate. When single measurement is
enabled in the Run status, the instrument immediately restarts one
measurement and then enters the Stop status.
z Run/Stop: press the corresponding soft key to run or stop the waveform
status.
z AutoSet: Automatic adjustment key: when the corresponding soft key is
Voltage grid
Trigger delay
Time grid
Current grid
Measuring
parameters
Trigger
level
Wave
