Configuration Arbitrary Waveform
Copyright ©ITECH Electronic Co., Ltd. 66
Number of cycles to generate surge/sag waves. This
parameter is meaningful only in Peroid mode.
This setting is used in combination with Repeat count, for
example, if
Repeat count is set to 5 and Period cou
surge/sag waves
occur in every 10 cycles.
: Set the percentage of the surge/trap amplitud
e to
AC signal amplitude (RMS).
Setting: Set the value of the surge/trap amplitude.
1. Press [On/Off] on the front panel and enable the output.
2. Press [Run] on the interface, Then the running status [Active] will be
displayed on LCD. Output parameters and measurement parameters are
displayed on the left side of the interface. You can also press the [Meter] to
observe the output parameters in the main interface.
3. After execute, [On/Off] on the front panel will be off, and [Idle] status will
be displayed on LCD. You can press [Stop] on the Sweep interface to stop
the Sweep function.
8.3 Self-defined Waveform Function
Self-defined Wave Edit is mainly used for selecting corresponding waveform
during List operation. The new waveform file, after saving, will be added after
the original waveform file. The user can self-define five waveform files at
maximum.
8.3.1 THD
The distorted waveform can simulate voltage harmonic wave in the circuit. The
user can set the extent to which the output voltage waveform deviates from the
Sin wave voltage and test the usage of the DUT under this circumstance.

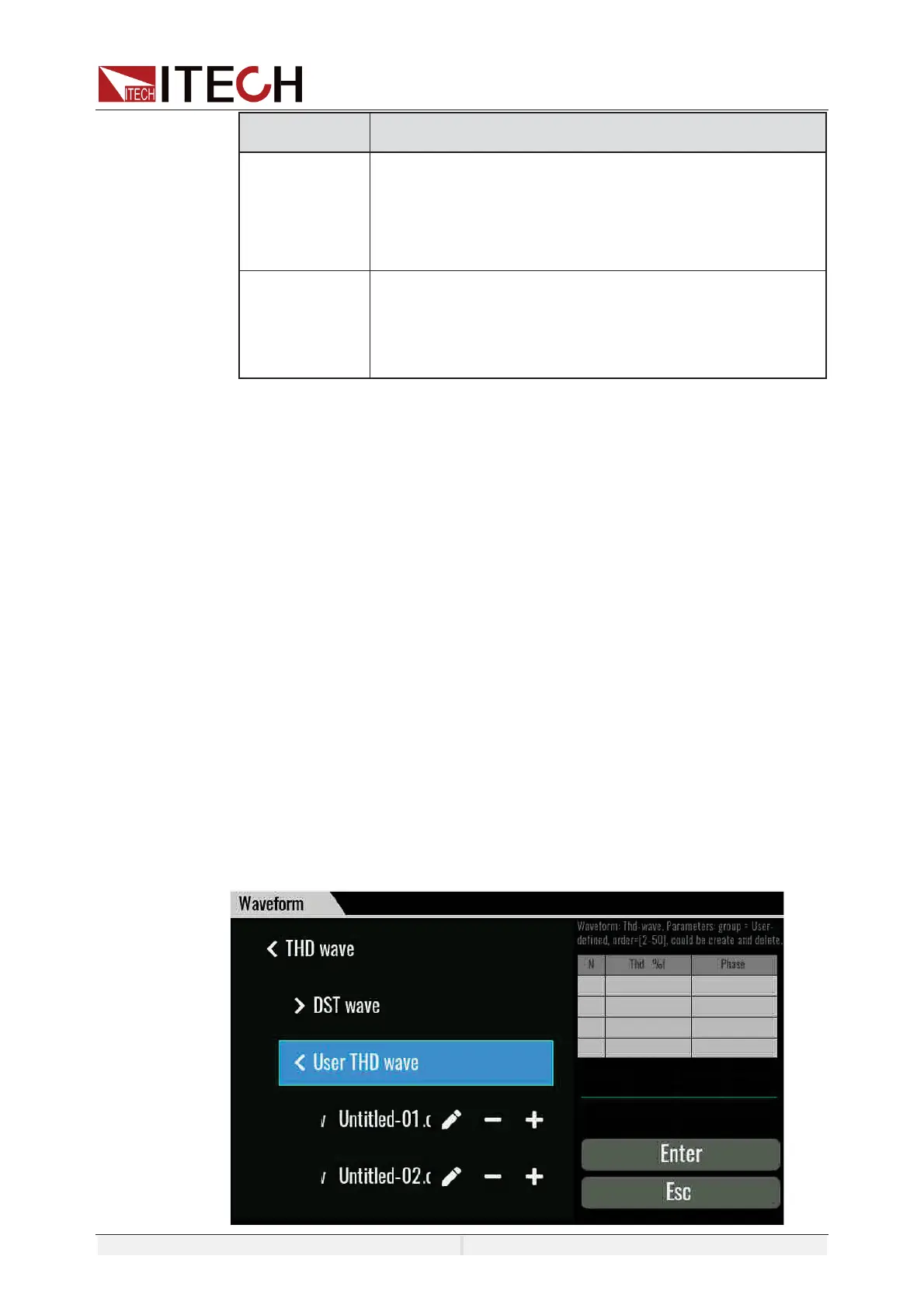

THD includes built-in 30 waveforms and user - defined waveforms.The interface
is shown below.
