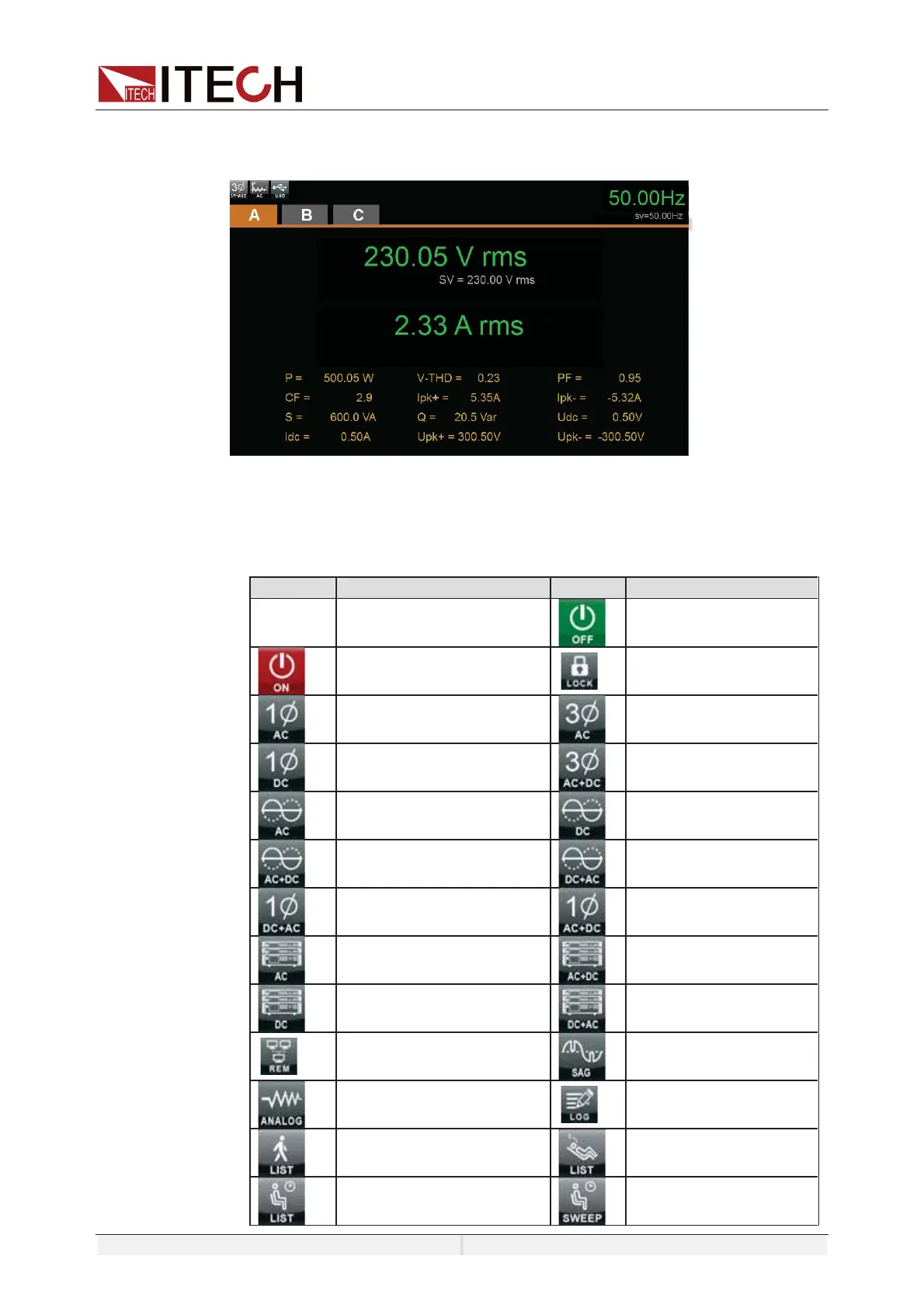

The meter interface of phase A is shown as follow, the display parameters are
the same as single mode. You can click the A, B or C to switch the phase
interface.
Introduction to Interface Symbols
The interface of IT7900 power supply will display the following symbols. All the
symbols and description are listed in the table below.
Char
Function description
Char
Function description
Shift
Compound key
Output is off
O
utput is on
Key operation is
locked
Single phase
AC mode
Three phase
AC
mode
Single phase
DC
mode
Three phase AC+DC
mode
Split
phase AC mode
Split phase
AC
mode
Split phase
AC+DC
mode
Split phase DC+AC
mode
Single phase DC+AC
mode
Single phase AC+DC
mode
Multi
-channel AC
mode
Multi-channel AC+DC
mode
Multi
-channel DC
mode
Multi-channel DC+AC
mode
The AC source is in
remote mode
Surge&Sag
function
indicator
External Simulation Test
Function
Record log
LIST is running
LIST is finished
LIST function is waiting for
trigger
Sweep function is
waiting for trigger
