Electrical connections
6 720 802 419 (2012/06) en
34

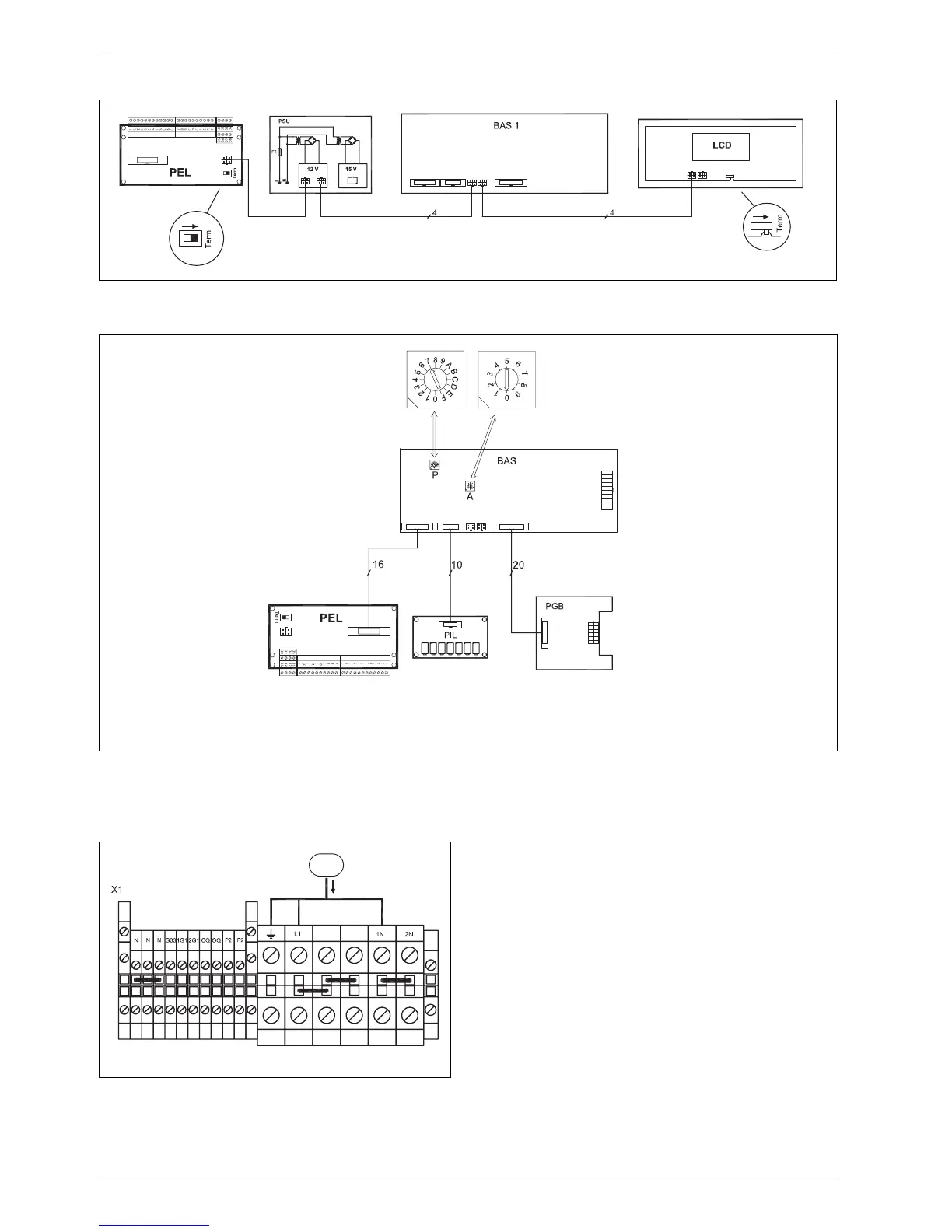

10.3.2 CANbus overview
Fig. 29 CANbus overview
10.3.3 Circuit board wiring
Fig. 30 Circuit board wiring
10.3.4 Power supply
The terminal blocks are strapped at the factory to a common power
supply. Connect to L1, 1N and PE.
Fig. 31 Power supply
[1] Supply, heat pump
6 720 648 043-10.1I
6 720 802 416-18.1I
1
