J2 225 System Manual
Version 1.0 May 29, 2012
Secondary Video Port
The J2 225 supports the newer digital video standard Display Port connector. This
connector supports a Display Port monitor, HDMI display, DVI or VGA monitor. When
used with HMDI or DVI displays, a passive adaptor cable must be used. When using a
VGA display, an active adaptor is to be used. With HDMI display Audio, support is
provided via the same HMDI cable.
The secondary video displays can be configured as Twin, Intel Dual Display Clone, or
Extended Desktop. Most all monitor resolutions from 640 x 480, up to 2560 x 1600 are
supported.
When the internal secondary J2 225 video display is used the secondary video port is not
available.

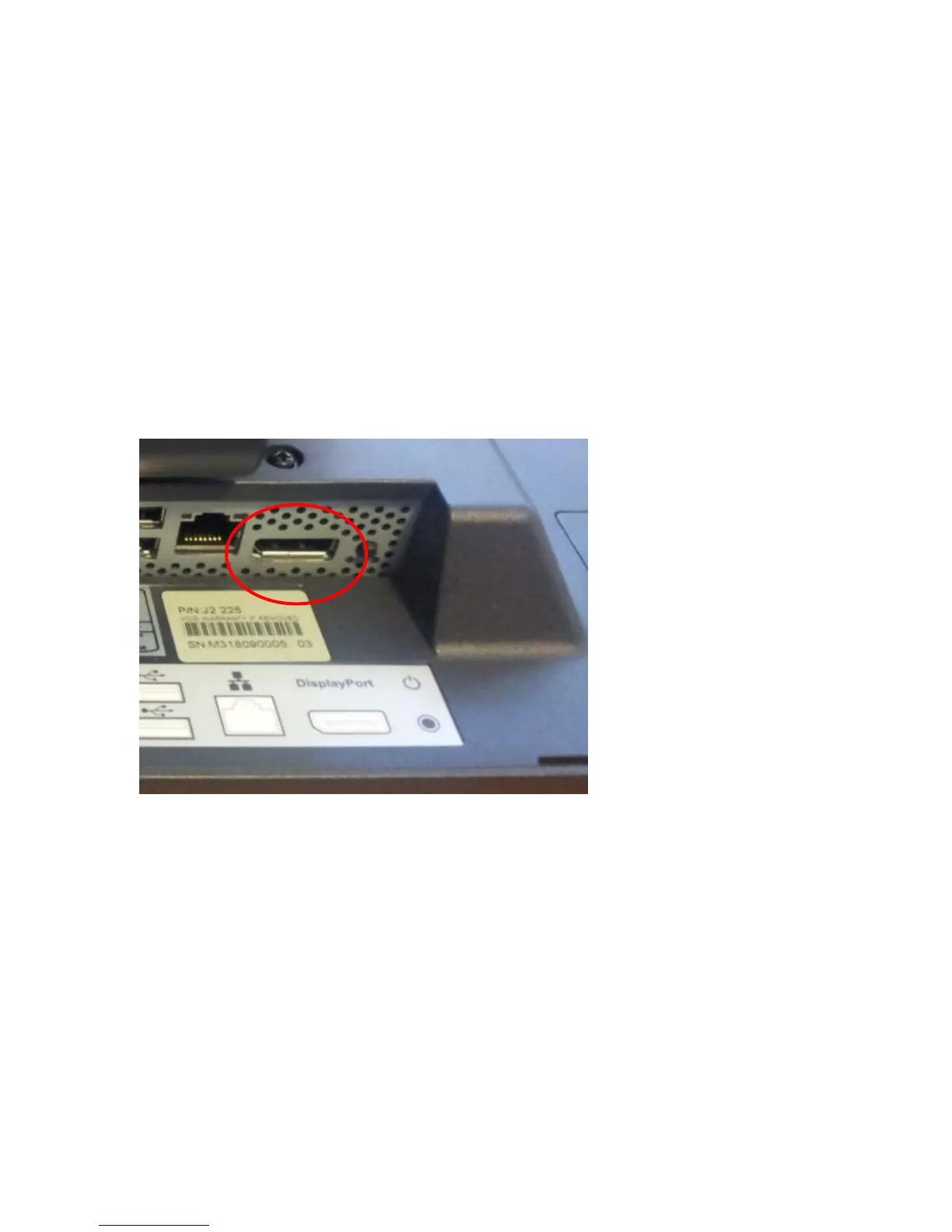

DisplayPort Video Port
