J2 225 System Manual
Version 1.0 May 29, 2012
Audio
The J2 225 uses the VIA1708B HD audio controller. There is one internal speaker.
A combo microphone jack and headset jack are located in the cable well of the J2 225, as
seen below, which allows for the connection of a microphone and headset, or audio out to
other devices.
Audio out is also supported on the DisplayPort when used with a HDMI monitor.

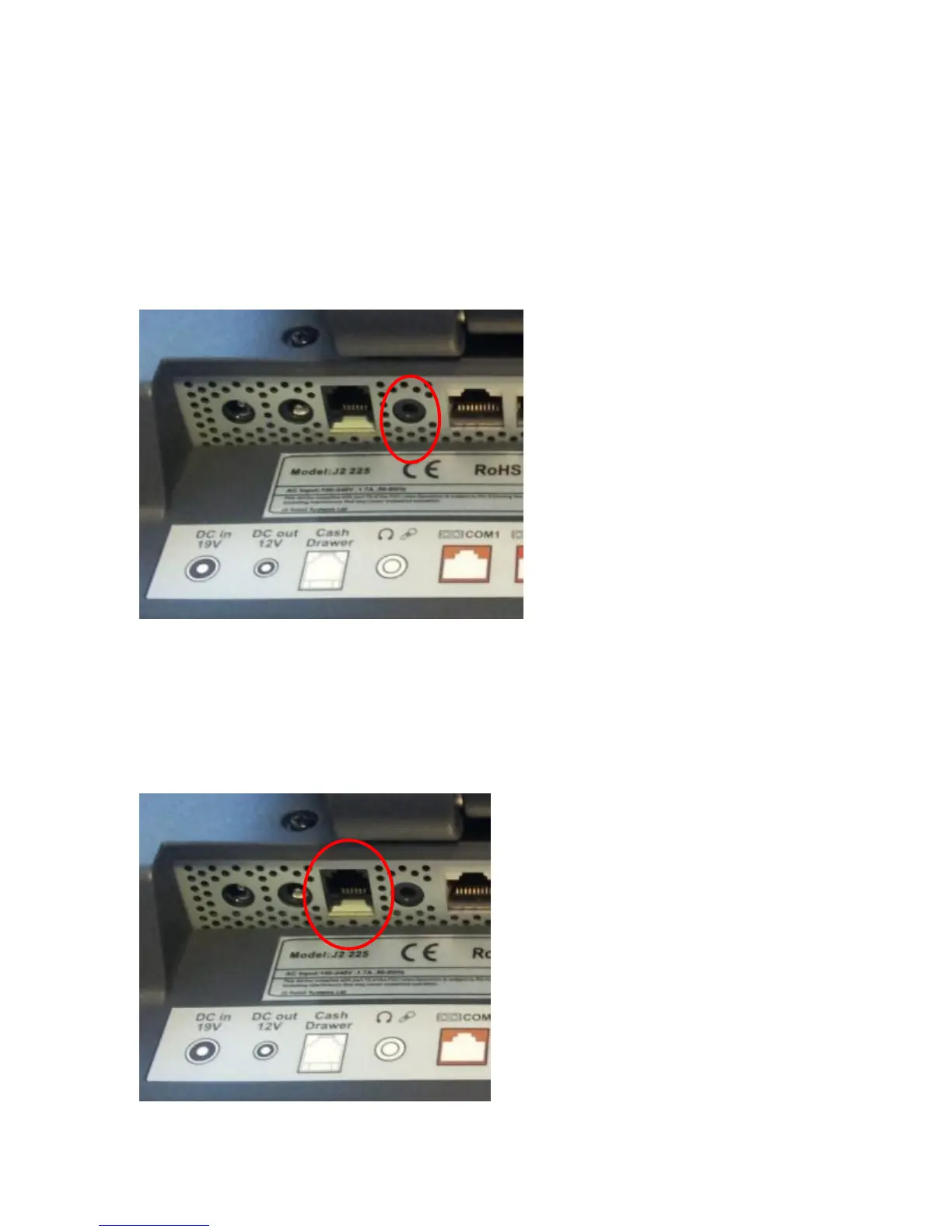

Audio Jack Location
Cash Drawer Ports
The J2 225 is equipped with one Cash Drawer port that can support one or two drawers.
This port is located in the cable well, and uses the industry standard RJ-11 connector and
pin-out (illustrated below).
Cash Drawer Ports
