J2 225 System Manual
Version 1.0 May 29, 2012

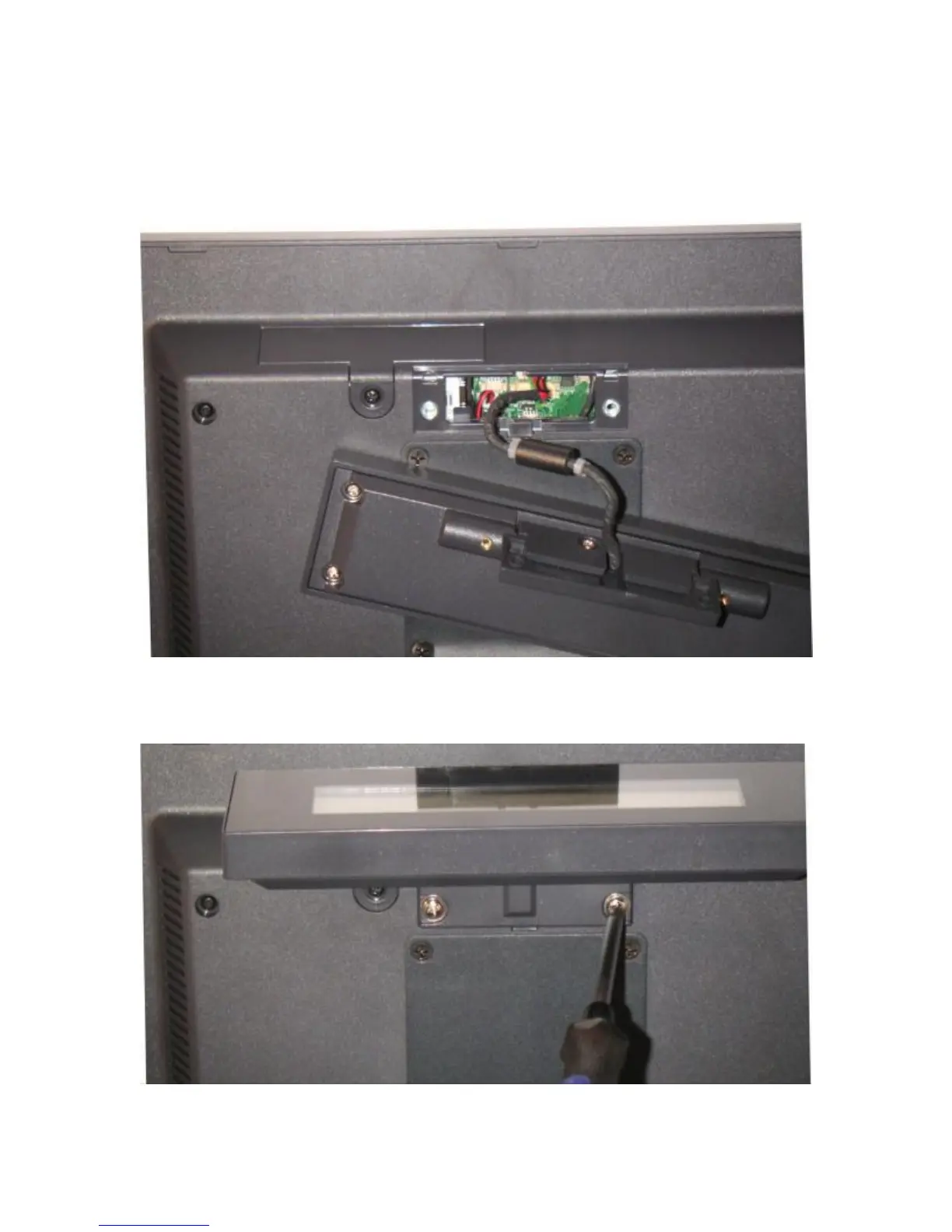

After the secondary display cover is removed, attach the LCM cable to the unit.
This 8-pin cable plugs into the CN8 / LCM connector on the system board. The connector
is keyed so that it can only plug in one way. This cable provides power and serial data to
the LCM module.
Once the cable is plugged in, feed any extra cable into the unit and attach the LCM with
the two 4mm screws provided with the display.
