AJX-44 & AJX-54 Series Technical Manual 7610-003-60-98
Issued: 01-19-2009 Revised: 01-30-2009
SECTION 5: PARTS SECTION

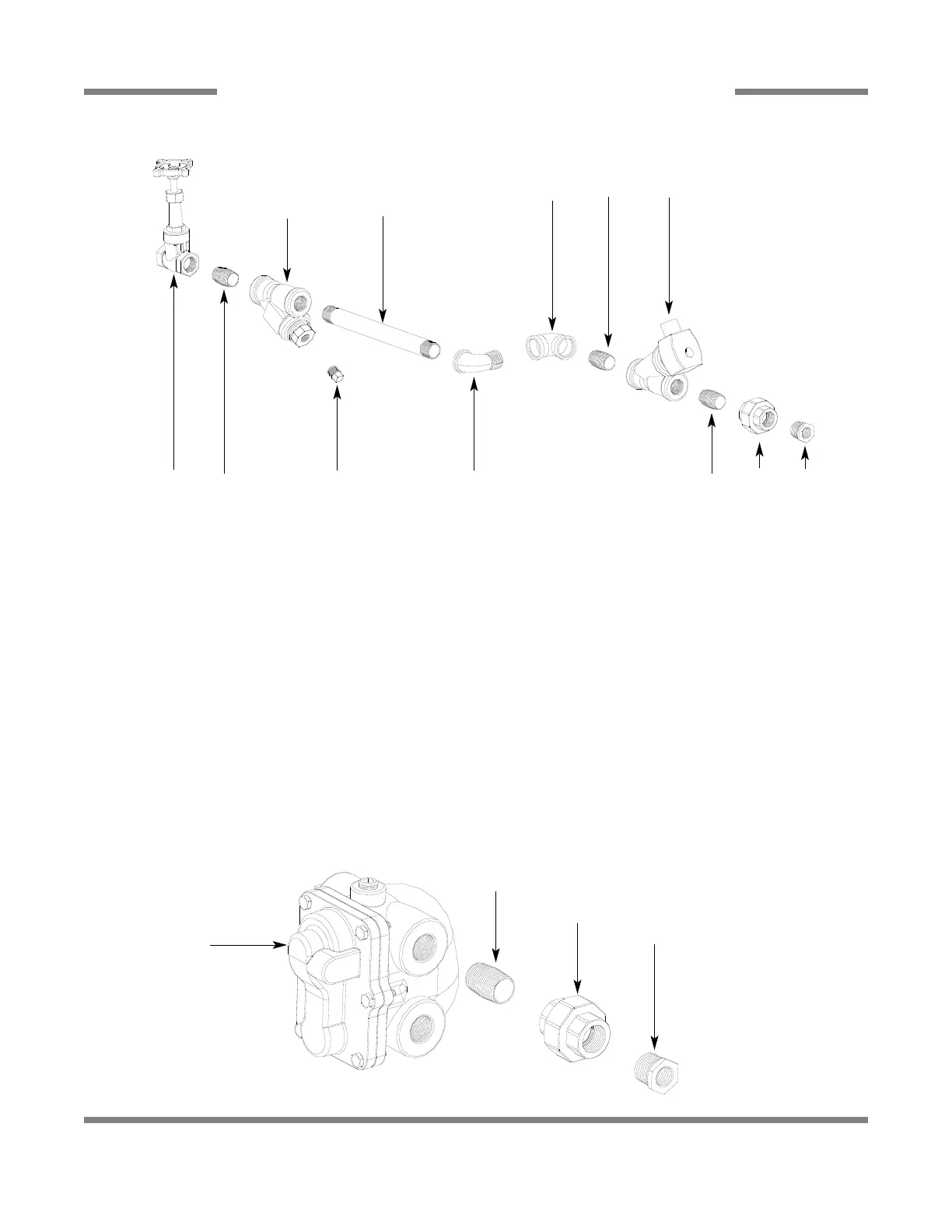

STEAM PLUMBING (RIGHT TO LEFT)
54
ITEM QTY DESCRIPTION Mfg. No.
1 1 Reducer, 3/4” NPT to 1/2” NPT, Black Iron 04730-911-02-34
2 1 Union, 3/4” NPT, Black Iron 04730-912-01-00
3 3 Nipple, Close, 3/4” NPT, Black Iron 04730-907-01-00
4 1 Valve, Steam Solenoid, 3/4” NPT, 120V 04820-011-87-39
5 1 Elbow, 90, 3/4” FNPT, Black Iron 04730-906-10-34
6 1 Elbow, Street, 90, 3/4” NPT, Black Iron 04730-011-87-37
7 1 Y-Strainer, 3/4” NPT, Black Iron 04730-217-01-32
8 1 Valve, Gate, Steam, 3/4” NPT 04820-100-19-00
9 1 Plug, 3/8” NPT, Black Iron 04730-909-02-34
10 1 Nipple, 3/4” NPT x 10” Long 04730-907-06-34
11 1 Reducer, 3/4” NPT to 1/2” NPT, Black Iron 04730-911-02-34
12 1 Elbow, 90, 3/4” FNPT, Black Iron 04730-906-10-34
13 1 Elbow, Street, 3/4” NPT, Black Iron 04730-011-87-37
14 1 Union, 3/4” NPT, Black Iron 04730-912-01-00
15 1 Nipple, Close, 3/4” NPT, Black Iron 04730-907-01-00
16 1 Steam Trap, 3/4” NPT 06680-500-02-77
17 1 Pipe, 3/4” NPT x 10” Long, Black Iron 04730-907-06-34
8 9 63
7
10
5 3
3
4
1
2
17
13
14
16
STEAM INLET PLUMBING
STEAM OUTLET PLUMBING
To Next Page
