Jackson AJX Series - Float Switch Components;Scrap Baskets

AJX-44 & AJX-54 Series Technical Manual 7610-003-60-98
Issued: 01-19-2009 Revised: 01-30-2009
SECTION 5: PARTS SECTION
FLOAT SWITCH COMPONENTS/SCRAP BASKETS
76

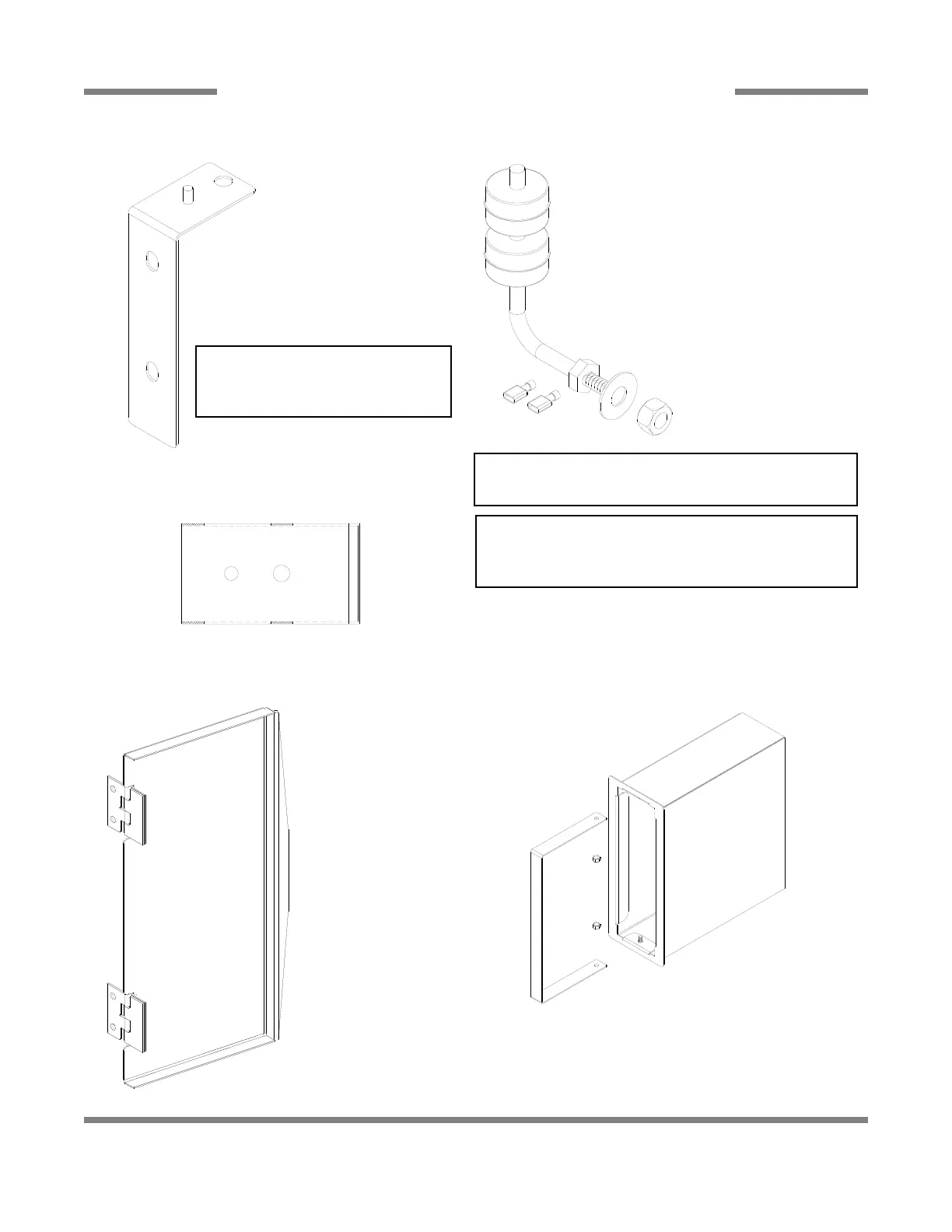

Float Switch Support Bracket
Replacement Kit
06401-003-11-77
Float Switch Cover
05700-021-75-71
Scrap Basket Lid
Weldment
05700-002-56-55
Scrap Basket Assembly
06401-002-11-21
Wash Tank Float Switch Replacment Kit
06401-003-11-75
Prewash Tank Float Switch Replacment Kit
06401-003-11-76
Replacment Kit Note:
The float switch replacement kits contain the float switch with
associated terminals, the flat washer and the nut.
Service Agent Note:
Remember than when reinstalling the float switch that the flat
washer goes inside against the tub wall while the nut is on the
outside of the tub.
Replacment Kit Note:
The float switch support bracket replace-
ment kit contains the bracket and asso-
ciated hardware for mounting.
