Jackson AJX Series User Manual

AJX-44 & AJX-54 Series Technical Manual 7610-003-60-98
Issued: 01-19-2009 Revised: 01-30-2009
SECTION 5: PARTS SECTION

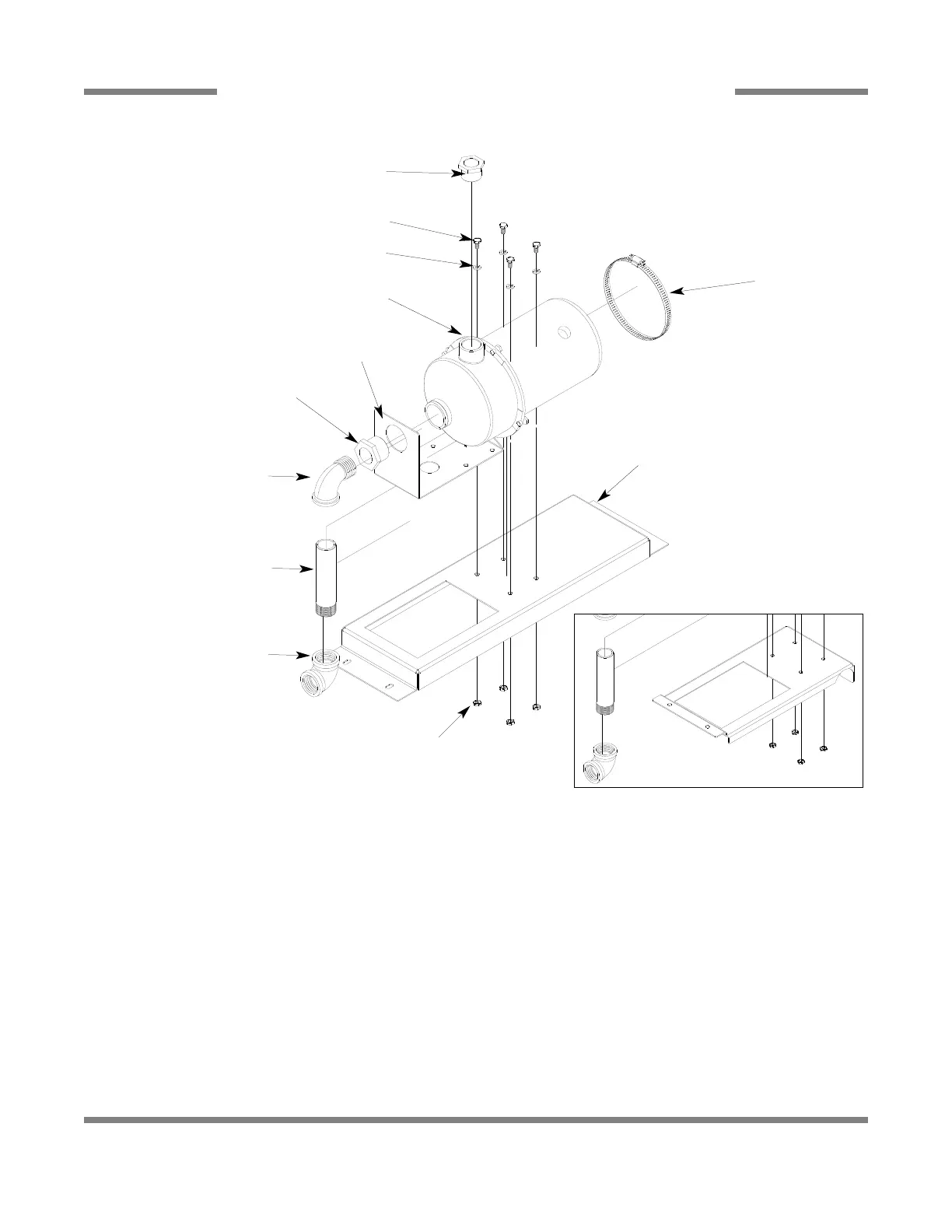

RINSE FILL OPTION
84
ITEM QTY DESCRIPTION Mfg. No.
1 Rinse Fill Motor Assembly 05700-002-40-25
1 Rinse Fill Motor Assembly (AJ-66 Left to Right Models Only) 05700-002-48-22
1 1 Motor 06105-002-72-71
2 1 Bracket, Pump Mounting 05700-002-63-59
3 1 Clamp, Hose 5 5/8” to 6” 04730-011-34-90
4 1 Reducer Bushing, 1 1/4” to 1” 04730-002-73-62
5 1 Reducer Bushing 1” to 3/4” 04730-011-65-14
6 1 Elbow, 90 Deg., 1” Street 04730-002-11-99
7 1 Nipple, 1” NPT x 6” Long Brass 04730-002-12-00
8 1 Elbow, 90 Deg. Brass Female 04730-002-12-55
9 4 Lockwasher, 1/4” 05311-274-01-00
10 4 Bolt, 1/4”-20 x 1/2” Long 05305-274-02-00
11 4 Nut, Hex S/S 1/4”-20 05310-274-01-00
12 1 Rinse Motor Mounting Bracket 05700-002-38-90
12 1 Rinse Motor Mounting Bracket (AJ-66 Left to Right Models Only) 05700-002-39-33
3
12
AJX-66 Left to Right Models Only
5
10
9
1
2
4
6
7
8
11
