Jackson AJX Series - Drain Quench Assembly

AJX-44 & AJX-54 Series Technical Manual 7610-003-60-98
Issued: 01-19-2009 Revised: 01-30-2009
SECTION 5: PARTS SECTION

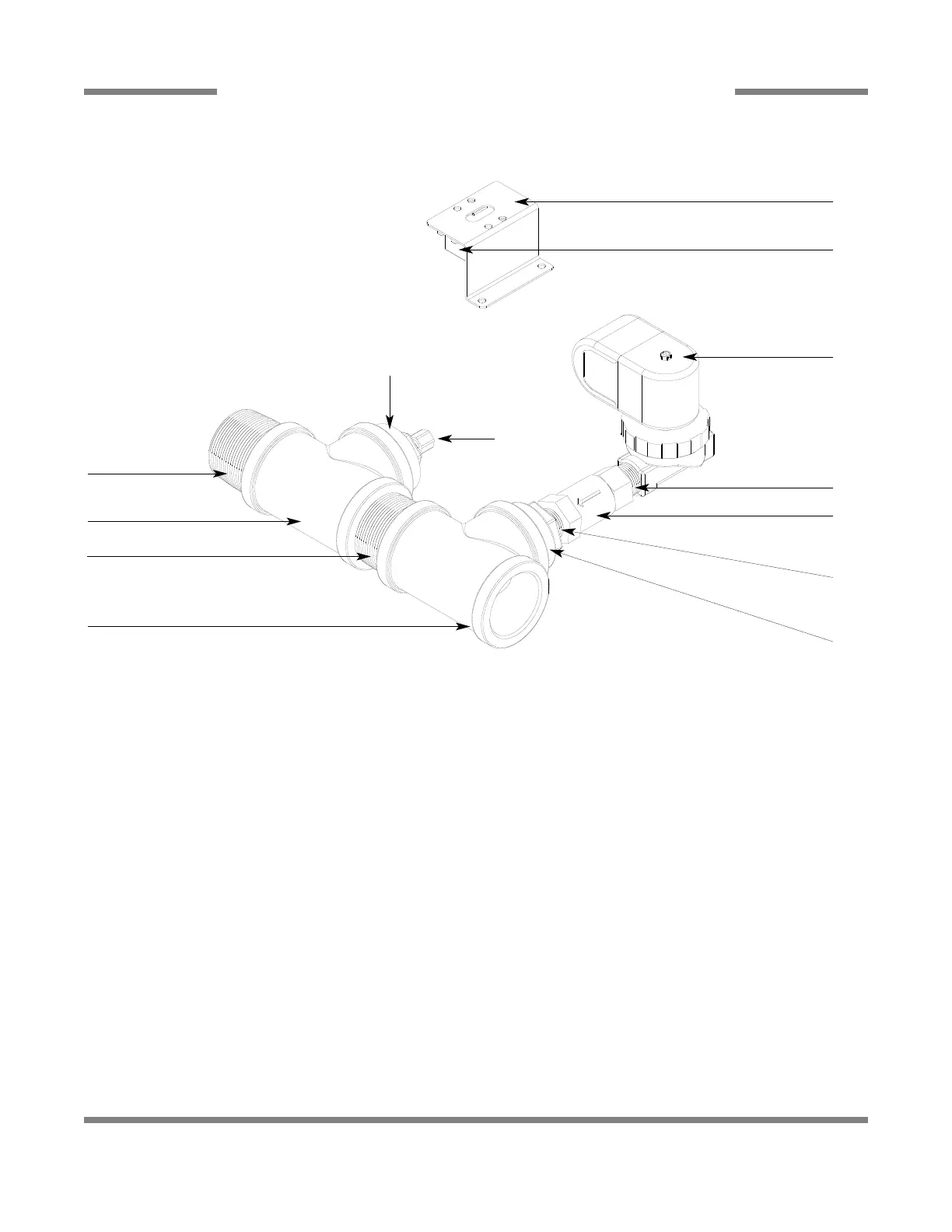

DRAIN QUENCH SYSTEM
58
ITEM QTY DESCRIPTION Mfg. No.
1 1 Thermostat 05930-121-67-72
2 1 Thermostat Bracket 05700-011-81-64
3 1 Solenoid Valve 04810-100-09-18
4 2 Nipple, Close, 1/2” NPT, Brass 04730-207-15-00
5 1 Valve, Check, 1/2” 04820-002-55-77
6 1 Reducer, 1-1/2” to 1/2” 04730-002-55-75
7 2 Tee, 1-1/2” x 1-1/2” x 1-1/2” 04730-011-69-93
8 2 Nipple, 1-1/2”, Close, Brass 04730-207-40-00
9 1 Reducer, 1-1/2” to 1/4” 04730-002-55-76
10 1 Modified Compression Fitting 05700-001-16-52
1 Complete Kit 06401-002-44-07
To Dishmachine Drain
To Drain
To Cold Water Supply
1
2
3
4
5
4
6
7
8
7
8
9
10
From the existing drain, attach the two additional Tees (Item 7) using the 1-1/2” NPT Close Nipples (Item 8). Tighten the
Reducers (Items 6 & 9) into the Tees as shown above. Attach the Modified Compression Fitting (Item 10) into the 1-1/2” to 1/4”
Reducer (Item 9). Position the bulb of the thermostat (Item 1) so that it rests approximately 1/4” from the bottom of the Tee (Item
7). Tighten the Modified Compression Fitting (Item 10) as required.
Mount the Thermostat (Item 1) to the tub using the Thermostat Bracket (Item 2) and set it for 120
° F - 140 ° F. Install the Solenoid
Valve (Item 3) to the second Tee (Item 7) and then attach to the incoming cold water line. Use pipe dope or thread tape as
required to prevent any leaks.
