Jackson AJX Series - Side Loader Pawl Bar Associated Parts

AJX-44 & AJX-54 Series Technical Manual 7610-003-60-98
Issued: 01-19-2009 Revised: 01-30-2009
SECTION 5: PARTS SECTION

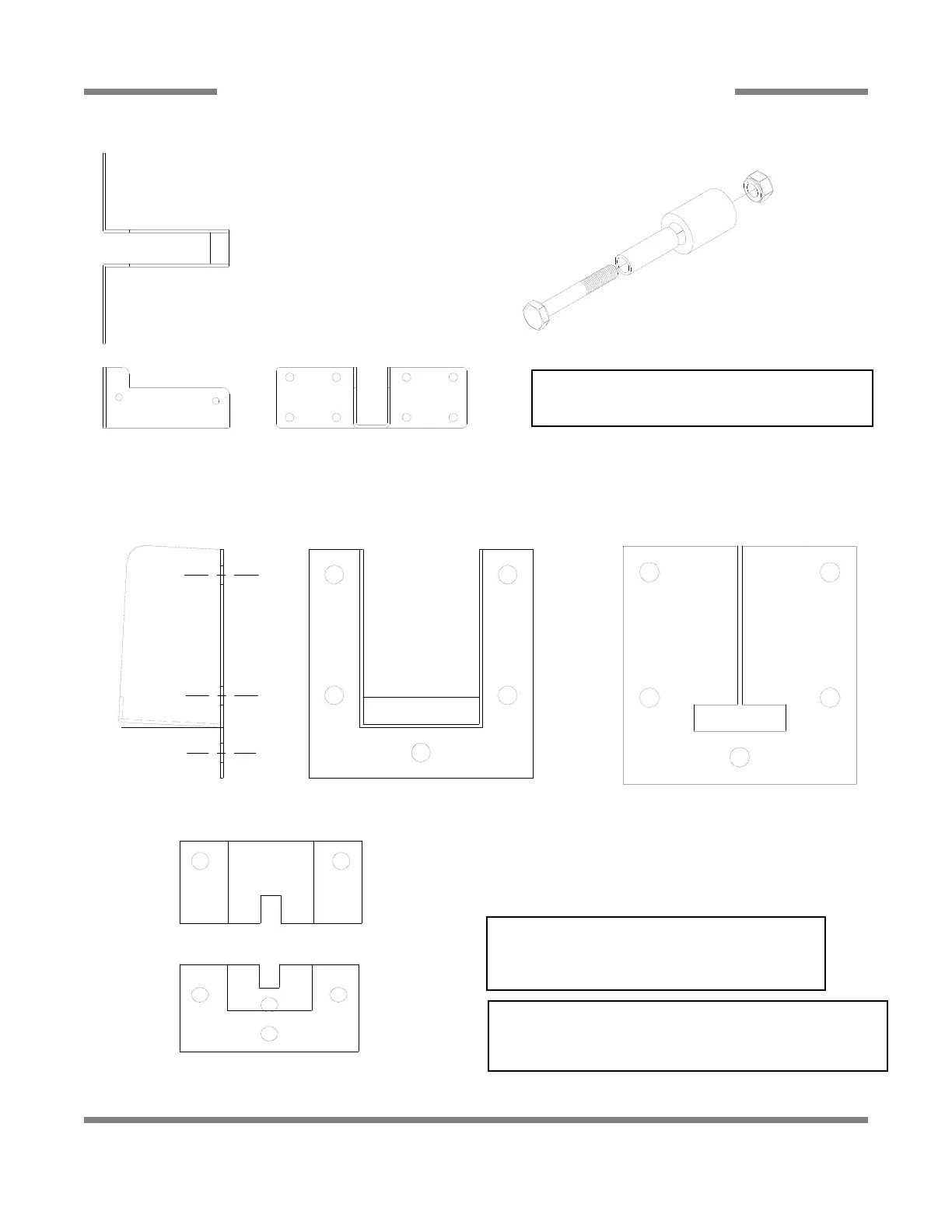

SIDE LOADER PAWL BAR ASSOCIATED PARTS
82
Drive Gutter Gasket
05330-011-68-55
Pawl Bar Gutter Weldment Replacement Kit
06401-003-09-95
Top Guide Block
Bottom Guide Block
Pawl Bar Roller Bracket
05700-031-77-94
Associated Hardware:
Washer, 1/4”-20 I.D. 05311-174-01-00
Locknut, 1/4”-20 S.S. Hex w/Nylon Insert 05310-374-01-00
Guide Block Replacment Kit
06401-003-10-15
Replacement Kit Notes:
The pawl bar gutter kit includes the weldment, lock-
nuts and the gasket. The guide block kits includes the
blocks and the gasket.
Service Note:
Because of wear patterns that develop over time, it is highly rec-
ommended that when replacing either of the guide blocks, that
the other be replaced as well from the kit.
Pawl Bar Roller
Replacement Kit
06401-003-11-80
Replacement Kit Notes:
The replacement kit for the pawl bar roller comes with
the roller, roller shaft, hardware and locknut as shown.
