Jackson AJX Series - AJX-66, 76, 80 & 90 Drain Plumbing Assemblies (Left to Right)

ITEM QTY DESCRIPTION Mfg. No.
1 6 Adapter, Male to Female, 1-1/2” 04730-401-25-01
2 3 No-Hub Connector 04720-604-06-00
3 3 Tee, Brass, 1-1/2” FNPT 04730-011-69-93
4 2 Ball Valve, 1-1/2” FNPT 04820-011-71-46
* 2 Valve Handle Weldment Assembly (Not Shown) 06401-021-84-74
5 2 Nipple, Brass, Close, 1-1/2” NPT 04730-207-40-00
6 2 Elbow, Brass, 90, 1-1/2” FNPT 04730-011-73-77
7 2 Tube, Copper, 1-1/2” x 1-3/4” Long See Chart
8 1 Rinse Nipple Weldment 05700-021-84-61
9 2 Tube, Copper, 1-1/2” x 3-1/2” Long See Chart
10 2 Tube, Copper, 1-1/2” x 7-1/2” Long See Chart
11 1 Nipple, Brass, 1-1/2” NPT x 3” Long 04730-011-87-04
Service Note: Copper tubing should be purchased locally and cut to length (lengths for items 7,9 and 10 provided in Chart
Below).
AJX-44 & AJX-54 Series Technical Manual 7610-003-60-98
Issued: 01-19-2009 Revised: 05-09-2012
SECTION 5: PARTS SECTION

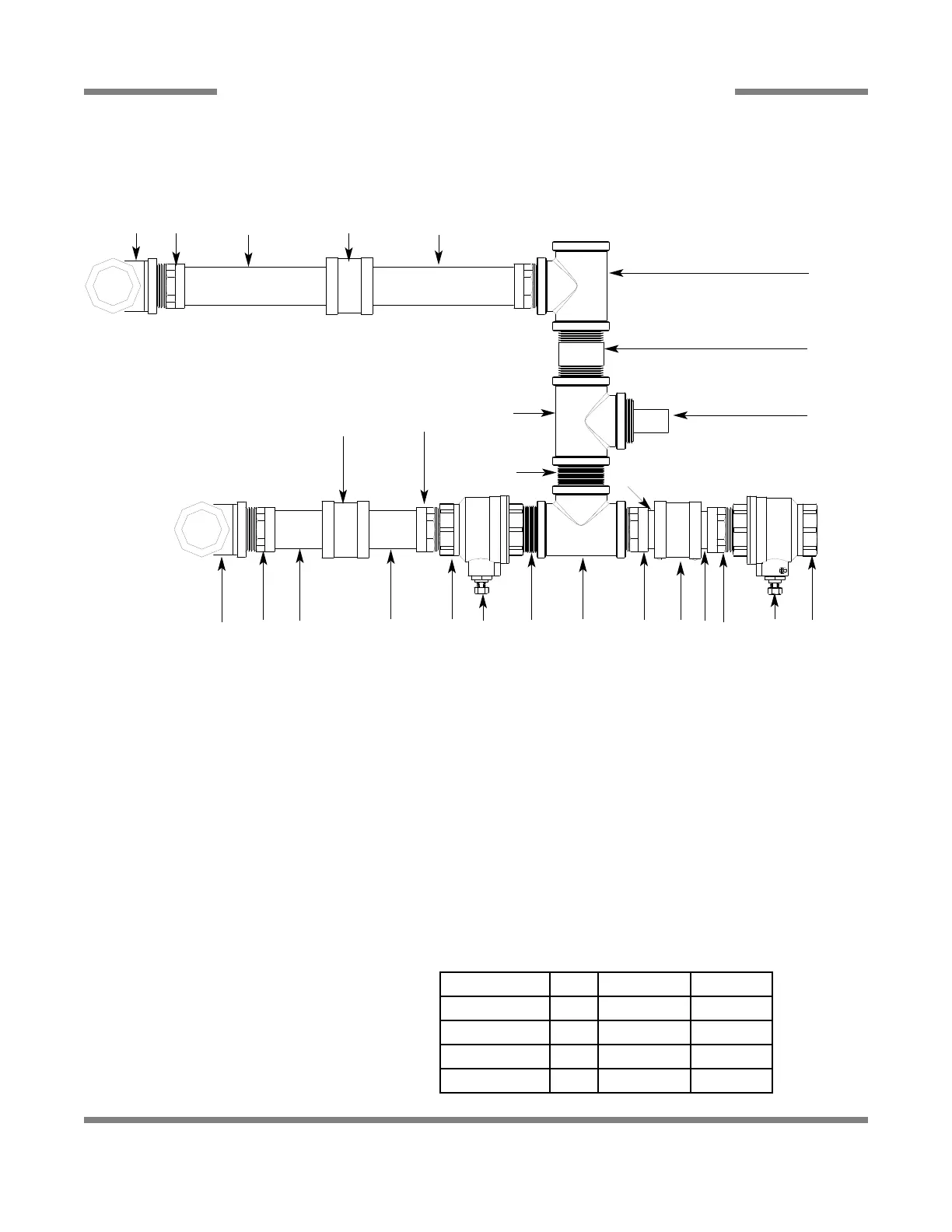

AJX-66, AJX-76, AJX-80 & AJX-90 (LEFT TO RIGHT) DRAIN PLUMBING ASSEMBLY
56
6
6
5 2
2
1
3
4*
8
5
9
9
4*
3 1
2
1
1
10
11
137
10
13
3
5
7
Machine Size #7 #9 #10
66 1 3/4 3 1/2 7 1/2
76 1 3/4 6 1/2 10 1/4
80 1 3/4 10 1/4 14
90 1 3/4 11 1/2 15 1/4
