AJX-44 & AJX-54 Series Technical Manual 7610-003-60-98
Issued: 01-19-2009 Revised: 01-30-2009
SECTION 5: PARTS SECTION

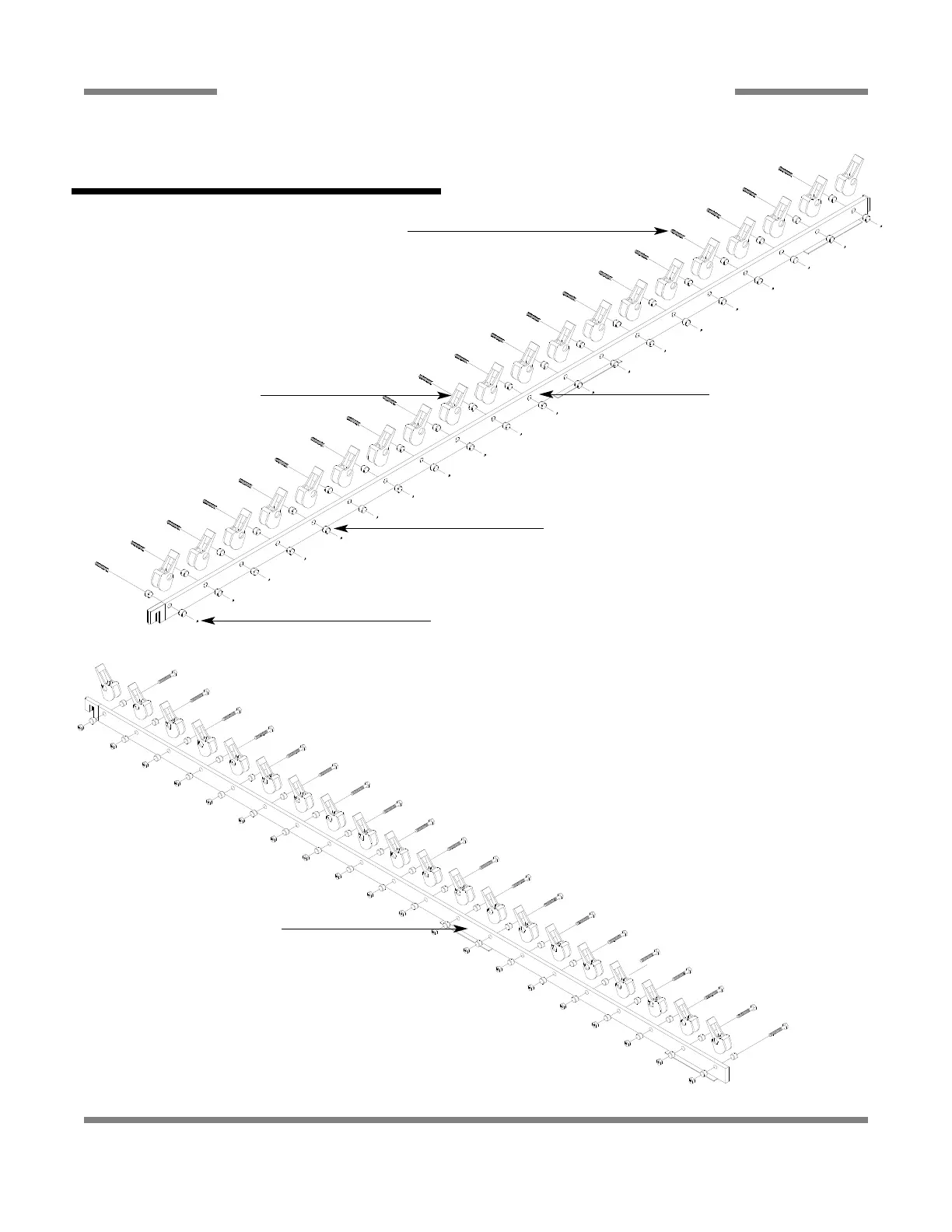

AJX-80 PAWL BAR ASSEMBLIES
70
Left to Right Assembly (06401-141-81-06)
Bolt, 3/8”-16 x 1-3/4” Long
05306-011-36-94
Locknut, 3/8”-16 with Nylon Insert
05700-011-72-55
Pawl Bar Spacer
05700-011-71-45
Pawl Bar Dog Casting
05700-021-69-00
Pawl Bar Weldment
05700-031-74-19
All associated hardware, spacers and
castings may be ordered using the part
numbers indicated in the above assem-
bly.
Pawl Bar Weldment
05700-041-82-01
Both assemblies contain 40 pawl bar dog castings. Please
note the direction of installation as indicated on the above
drawings. When replacing pawl bar dog castings, ensure to
re-install in the appropriate direction. If you do not, then the
rack will not be pulled through the machine during operation.
AJX-80 Complete L-R Assembly
06401-141-81-06
AJX-80 Complete R-L Assembly
06401-241-81-06
AJX-80 Prison Assembly
06401-341-81-06
To Next Page
