Jackson AJX Series - Pawl Bar Roller Bracket

AJX-44 & AJX-54 Series Technical Manual 7610-003-60-98
Issued: 01-19-2009 Revised: 01-30-2009

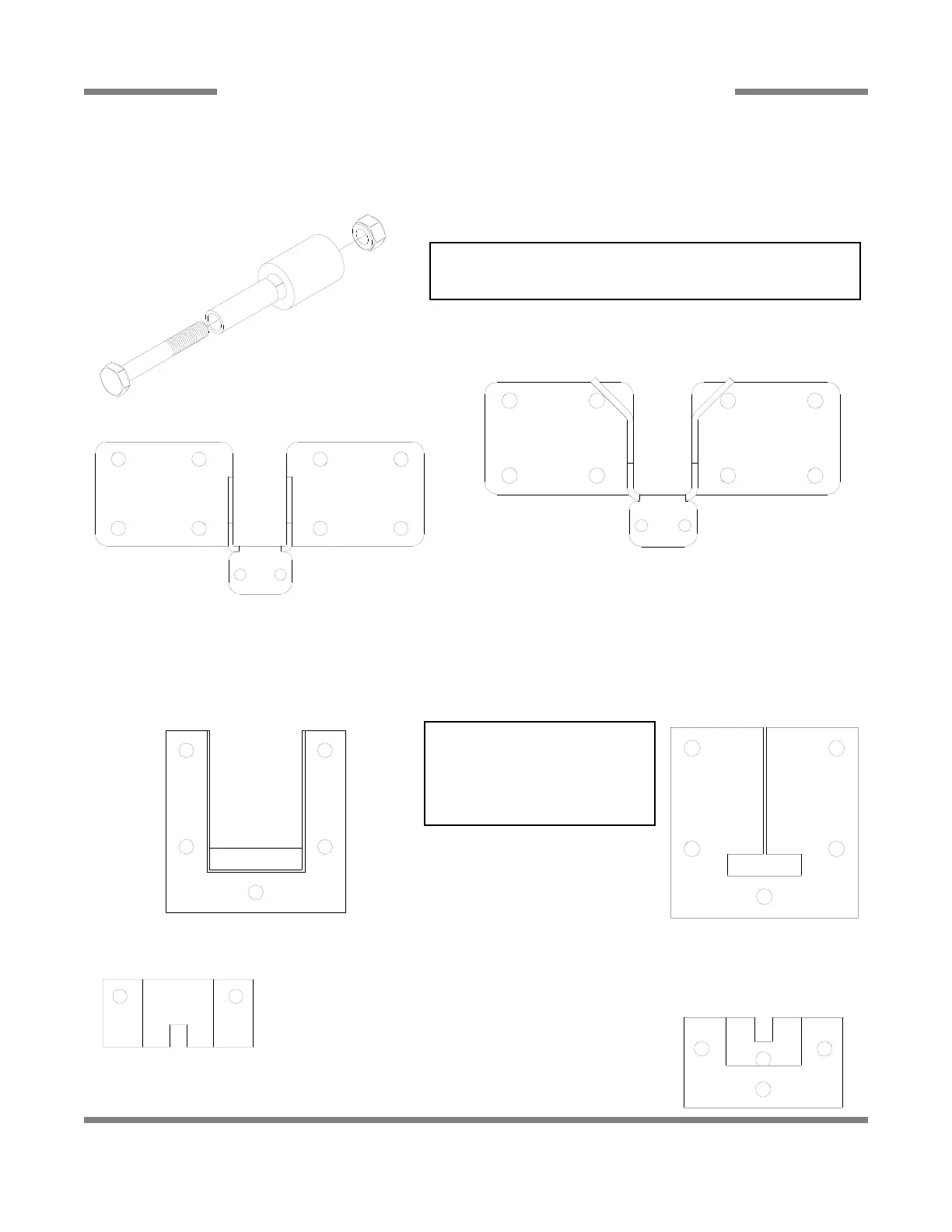

SECTION 5: PARTS SECTION
PAWL BAR ROLLER BRACKET
68
Pawl Bar Gutter Weldment Replacement Kit
06401-003-09-95
Bottom Guide Block
Top Guide Block
Pawl Bar Gutter Gasket
05330-011-68-55
Replacement Kits Notes:
The pawl bar gutter weldment
replacement kit contains the weld-
ment, a gasket and the mounting
hardware. The guide block kit con-
tains both blocks and a gasket.
Service Note: It is highly recommended that when
changing out one guide block, that the other be changed
out as well, along with the gasket.
Guide Block Replacment Kit
06401-003-10-15
Pawl Bar Roller Replacement Kit
06401-003-11-80
Replacement Kit Notes:
The replacement kit for the pawl bar roller comes with the roller, roller
shaft, hardware and locknut as shown.
Pawl Bar Bracket (with studs) Weldment
05700-031-84-68
Pawl Bar Bracket (without tabs) Weldment
05700-031-92-36
