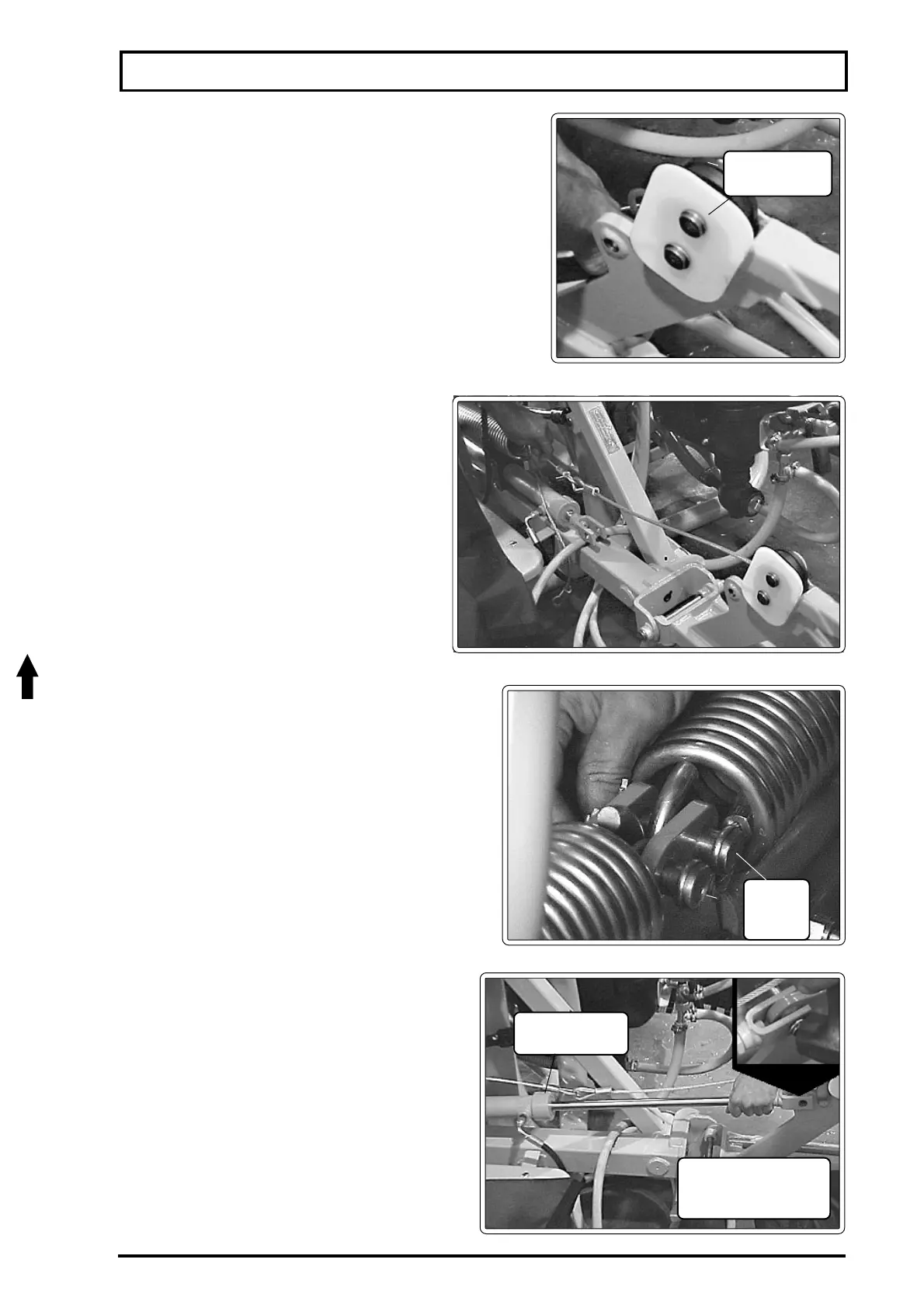

ASSEMBLING THE BOOM
-Mount the air duct protector to the boom.
INSTALLING THE BOOM ACTUATION
CABLES
-Pass the steel cable through the spring
as shown in the photograph.
-Remove the spring fastening pin.
-Pass the pin through the ring on the end of the
steel cable, with the spring.
-Do the same on the other side of the boom and
fit the pin again.
spring
fastening
pin
boom actuation
cylinder
after fitting the pin,
install the flat washer
and the lock.
air duct
protector
ASSEMBLING THE BOOM CYLINDER
-Move the lever 1 and 3 of the hydraulic
control until the cylinder rods are completely out
of the body as shown in the figure.
-Install the fastening pin in the boom.
-Repeat this operation to the other boom.
