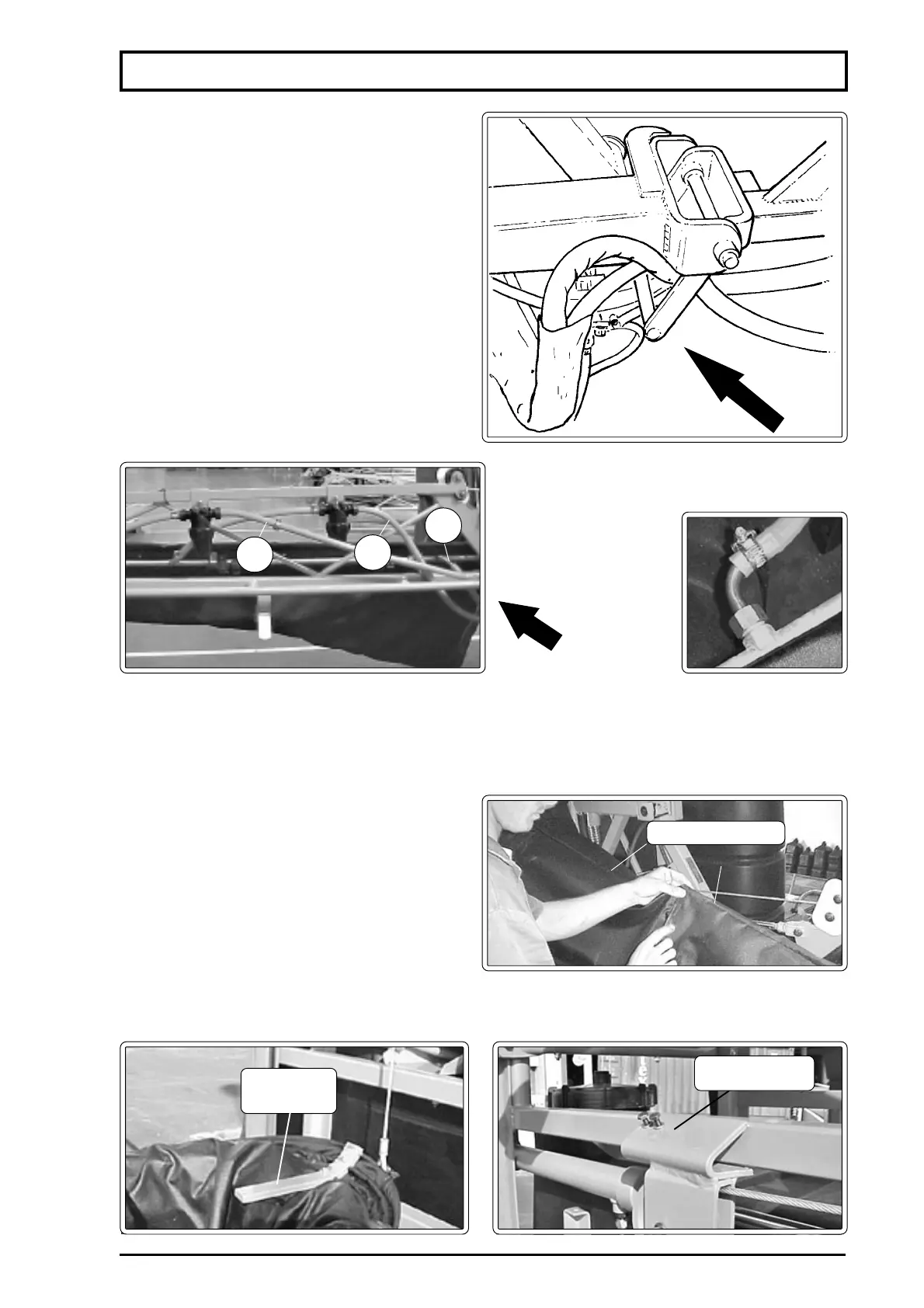

ASSEMBLING THE BOOM
INSTALLING THE HOSES
There are two hoses for each boom section.
Pass them through the space showed on the
drawing beside.
The hoses 1 and 2 have different lengths.
Hose (1) (shorter) must be connected to the
first line filter.
Hose (2) (longer) must be connected to the
second line filter.
Fasten the hoses with the clamps.
Do the same on the other boom section.
A
2
The hose of the central boom (photograhph
below) must be connected to the beginning of
the branch on the first
boom section (detail A-).
1
FASTENING THE MAIN AIR DUCT TO THE
BOOM AIR DUCT
The air ducts are fastened together by Velcro.
To fasten them correctly, just follow the seam
existing on the air duct.
air duct seam
MOUNTING THE AIR DUCT TO THE DEFLECTOR
-The air duct support (1) must be screwed on the air duct support, on the upper part of the frame
air duct
support (1)
NOTE: For sprayers without line filter, the sequence for assembling is the same, that is, the shorter
hose is for the first boom section, and the longer one for the second boom section.
air duct
rest (2)
