JWI-700C 6

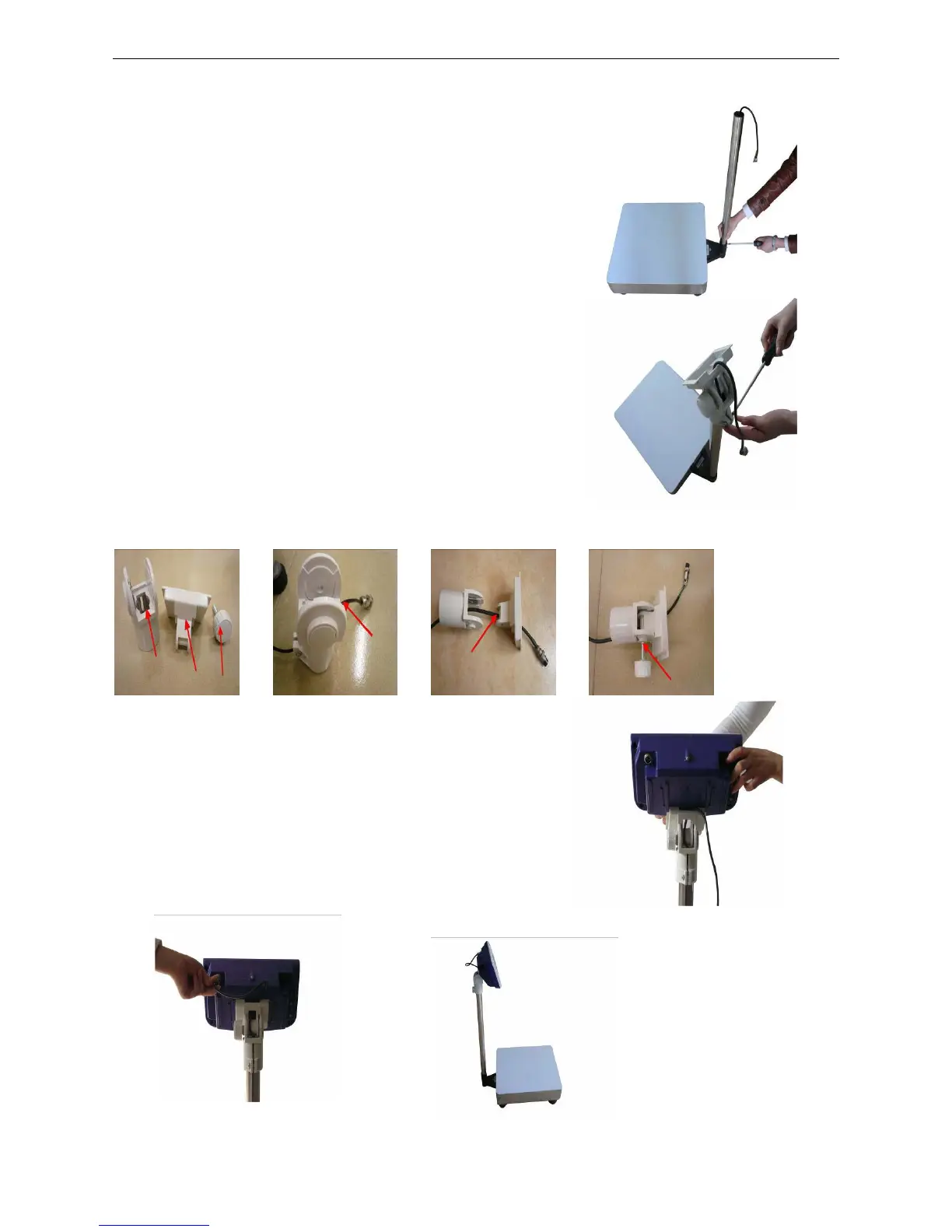

Step 1: Thread the wire of the Load Cell (9)on the
rod seat (1) through the upright pole (2), insert
the upright pole into the rod seat and then
lock it with two screws (5).
Step 2: After threading the Load Cell wire
through the bracket (3), attach the bracket to the
upright pole and then lock it with the screw (6).
Note: if the load cell connector is too big to thread through the bracket, separate the
bracket by removing the Knob pole (7), see the following pictures.
→ → →
Step 3: Install the Indicator (4) on the bracket,
with the bracket aligning with the bracket slot
(8) of the indicator.
Step 4: After connecting load cell connector to load cell port, the installation is completed.
Note: Use the knob pole (7) to adjust the inclination angle of indicator and the screw (6) to
adjust direction of the indicator. After adjusting the indicator to an optimal position and lock
the screw.
