Jadever JWI 700C User Manual

JWI-700C 5
3-4 Power supply
Please verify the local AC power source and switch the two-stage switch to the proper place
before plugging into the power outlet.
Alternative power supply
1) AC 110V/220V (AC±10%)
2) (6V/4A) Internal Rechargeable Battery
Power Consumption
About 300mW, 80hrs (without backlight)
About 380 mW, 65hrs (with backlight)
Low battery warning
When “ ” appears in the upper left corner of the weight window, the battery power
requires recharging. The charge lamp turns green from red when the recharging is completed
(which takes about 8 hours). Disconnect the scale from power supply when it is fully charged.
Note: Battery is to replaced only by an authorized service dealer .Risk of explosion can occur
if replaced with the wrong type or connected improperly.
4. Installation

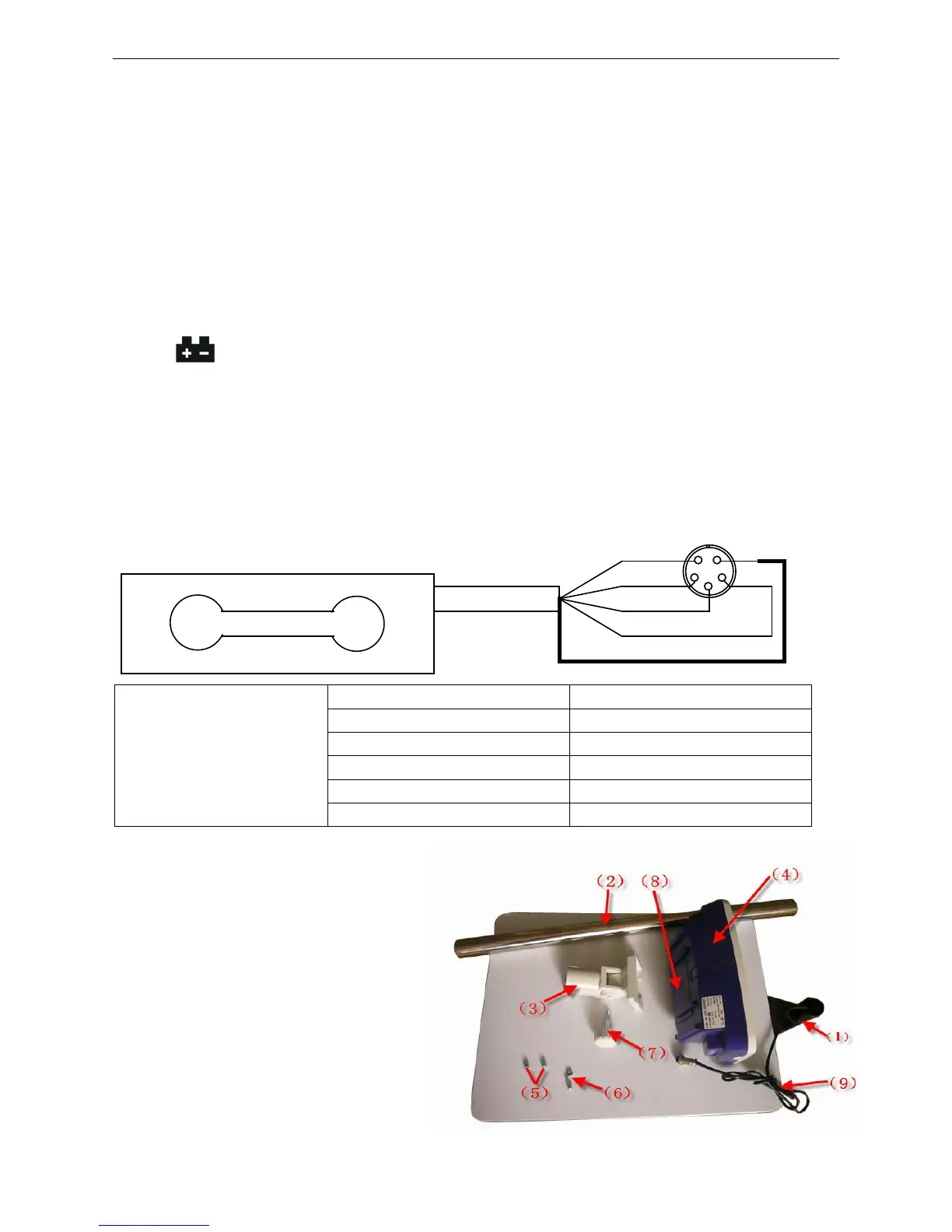

4-1Load Cell Connection
CONN
1
2
3
4
5
E+
E-
S+
S-
LOAD-CELL
Shield
LOAD CELL
CONNECTION
PIN
SIGNAL
1
E+
2
E-
3
S+
4
S-
5
SHIELD
4-2 Assembly Description of Upright Pole
(1) Rod seat
(2) Upright pole
(3) Bracket
(4) Indicator
(5) Screw (for fixing the upright pole)
(6) Screw (for fixing the Bracket)
(7) Knob pole
(8) Bracket slot
(9) Load cell wire
