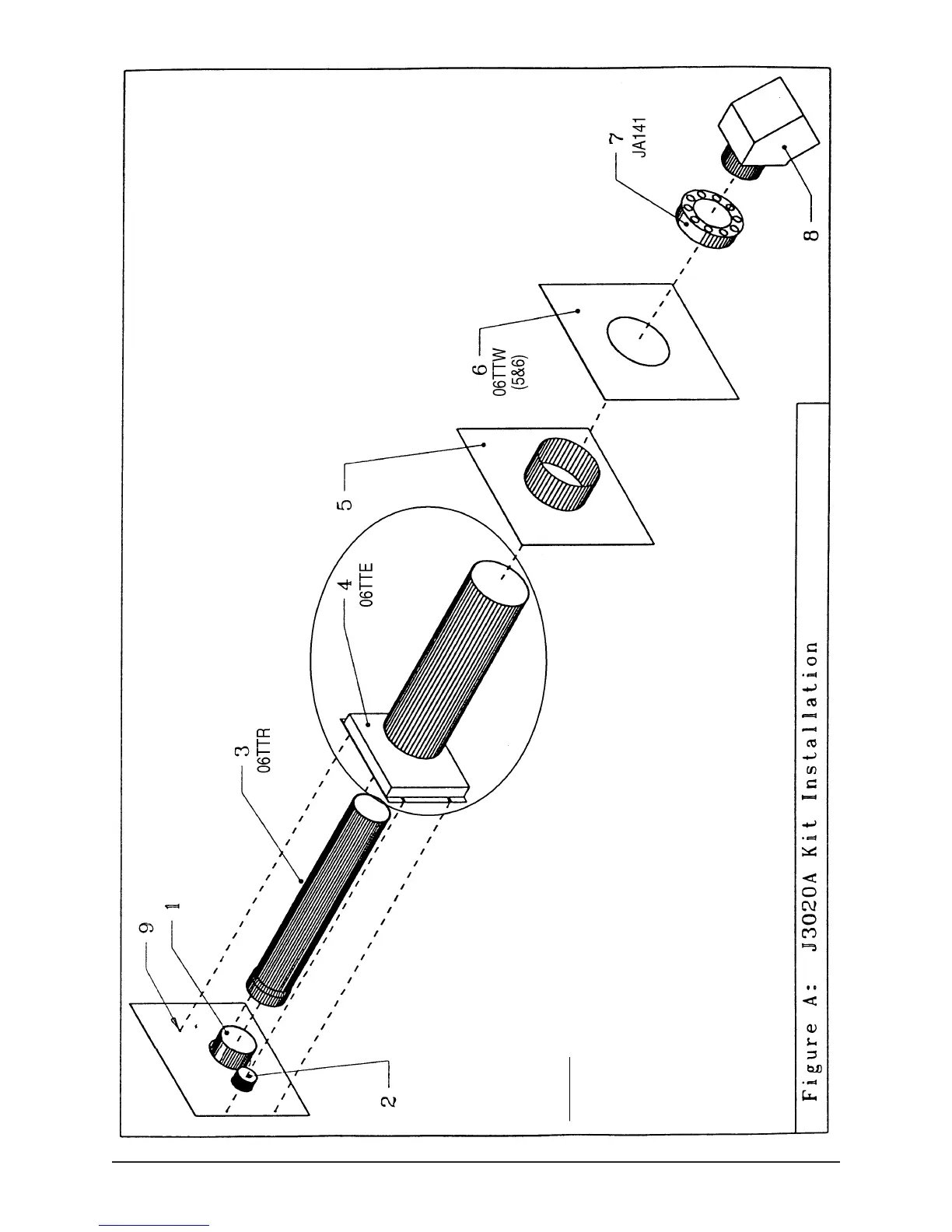

Parts List
1. Exhaust Stub
2. Air Intake Stub
3. 19” (485mm) long 3” (76mm) Diameter Exhaust Pipe
4. Air Intake Adapter Housing with 4-3/4” (121mm) Pipe
5. Wall Thimble Inner Piece (painted face)
6. Wall Thimble Outer Piece
7. 4-3/4” (121mm) End Cap/Rodent Screen
8. 3” (76mm) Rain Cap with Rodent Screen
9. Air Intake Adapter Mounting Holes
