Installation 6-5
Revision 2 - 20 March, 1997 HP SERIES DIMMER OPERATING MANUAL

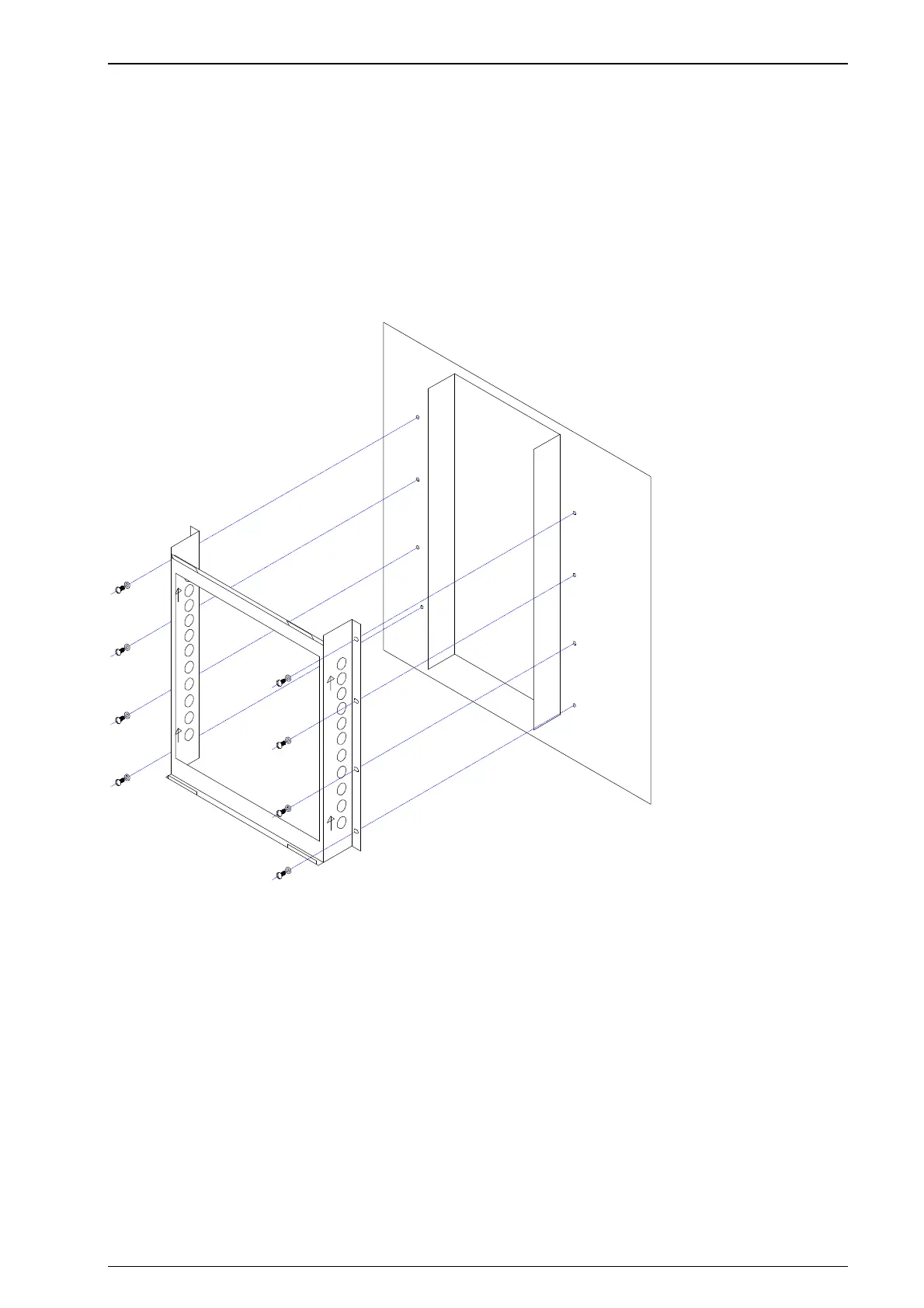

6.2.3 Wall Mounting Dimmers - Straddling Cable Trays
The deep bracket will straddle cable trays up to 420mm wide and 75mm deep.
Remove the top blanking piece by cutting the holding webs with shears, and remove
the eight screws securing the bottom blanking piece. Position the bracket over the
cable tray against the wall, orienting the bracket as indicated on the bracket. Mark and
drill at least 4 fixing points, and attach the bracket to the wall. Feed any cables
(supply, output, and control) through the cable access cutout.
Attach the dimmer to the bracket as described in section 6.3.
WALL
CABLE
TRAY
To Next Page
