Page 16

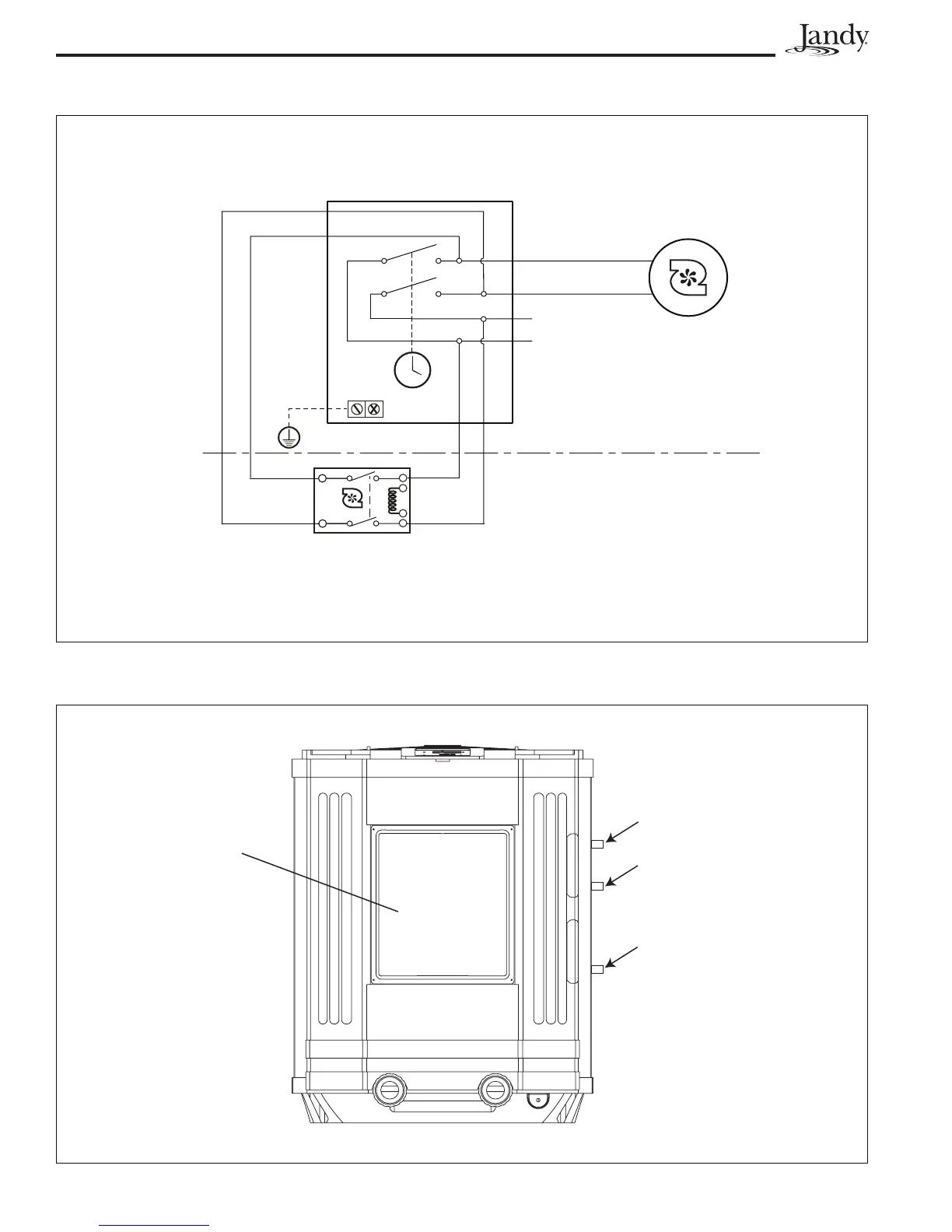

Figure 11. AE-Ti Heat Pump Front View
MAINTAIN TEMP TO TIME
CLOCK CONNECTION
CONNECTOR FOR HIGH
VOLTAGE WIRES
CONNECTOR FOR LOW
VOLTAGE WIRES
SERVICE ACCESS
PANEL (4 SCREWS)
Figure 10. Example of Maintain Temp Wiring to the Time Clock
INTERMATIC MODEL T104 MECHANICAL TIMER
(NOT PROVIDED WITH HEAT PUMP)
INTERMATIC MODEL T104 (NOT PROVIDED WITH HEAT PUMP) WIRE CONNECTIONS SHOWN AS AN EXAMPLE,
OTHER MODELS MAY HAVE DIFFERENT CONNECTIONS. CONSULT TIMER MANUFACTURER FOR PROPER CONNECTIONS.
FIELD INSTALLED COMPONENTS
HEAT PUMP COMPONENTS
MAINTAIN TEMP (PUMP) RELAY
(SEE HEAT PUMP WIRING DIAGRAM)
208 - 277 VAC
PUMP
CLOCK
MOTOR
NOTE:
EQUIPMENT
GROUND
L2
L1
1
3
2
4
