Jandy AE-Ti User Manual

Page 6

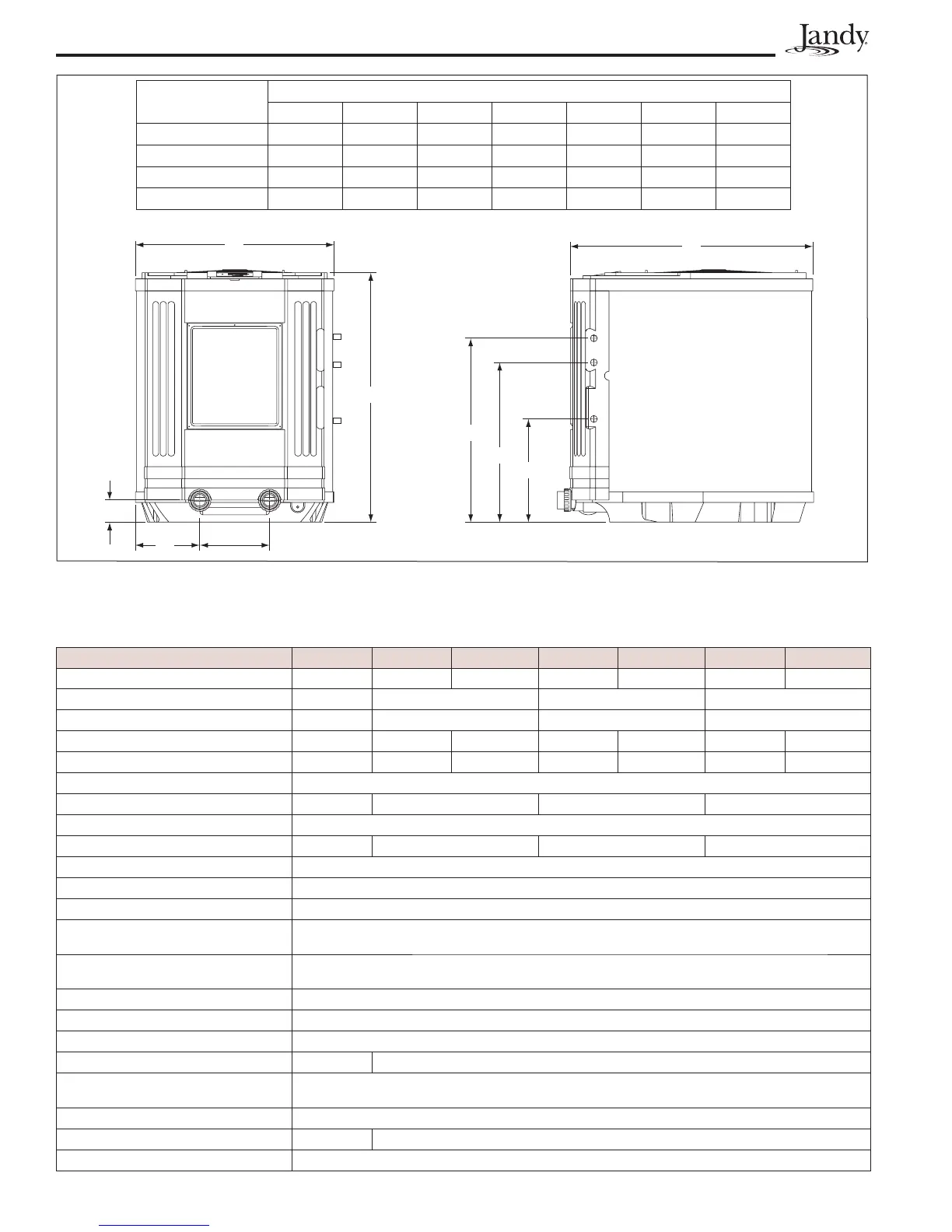

Figure 1. Jandy AE-Ti Heat Pumps Dimensions
1.7.3 Technical Specifi cations
MODEL AE1500T AE2000T AE2000T--263 AE2500T AE2500T--263 AE3000T AE3000T--263
VOLTAGE/FREQUENCY/PHASE 208-230/60/1 208-230/60/1 208-230/60/3 208-230/60/1 208-230/60/3 208-230/60/1 208-230/60/3
OUTPUT 73,000 BTUs 100,000 BTUs 115,000 BTUs 131,000 BTUs
COP 5.6 5.4 5.5 5.9
MINIMUM CIRCUIT AMPACITY 28A 40A 24A 40A 29A 48A
31A
MAX OVER CURRENT PROTECTION 48A 68A 39A 68A 48A 80A 50A
HEAT EXCHANGER Titanium
COMPRESSOR 40K Scroll 60K Scroll 68K Scroll 81K Scroll
CABINET ABS
REFRIGERANT 56 Oz, R-22 72 Oz, R-22 108 Oz, R-22 116 Oz, R-22
REFRIGERANT HIGH PRESSURE ALARM 450 PSI (reset at 285 PSI)
REFRIGERANT LOW PRESSURE ALARM 30 PSI (reset at 74 PSI)
LOW WATER FLOW ALARM 30 GPM
MAXIMUM HEIGHT BELOW WATER
LEVEL
11 feet below pool level
MAXIMUM HEIGHT ABOVE WATER
LEVEL
5 feet above pool level
OPTIMAL WATER FLOW 55 GPM
MINIMUM WATER FLOW 30 GPM
MAXIMUM WATER FLOW 125 GPM
AIR FLOW 2060 CFM 4120 CFM
WATER TEMPERATURE DIFFERENTIAL
(DELTA T)
Adjustable between 1°F to 5°F
UNION SIZE 2”
WEIGHT 225 LBS 325 LBS
SOUND PRESSURE PER ISO 3471 58.9 dBa
Table 1. AE-Ti Heat Pump Technical Specifi cations
3.5”
C
11.5”
A
B
D
E
F
G
MODEL SIZE DIMENSIONS
ABCDEFG
AE1500 26” 31” 7.25” 25” 21” 12” 35”
AE2000 33” 38” 10.75” 26” 22” 13” 41”
AE2500 33” 42” 10.75” 30” 26” 17” 41”
AE3000 33” 42” 10.75” 30” 26” 17” 41”
