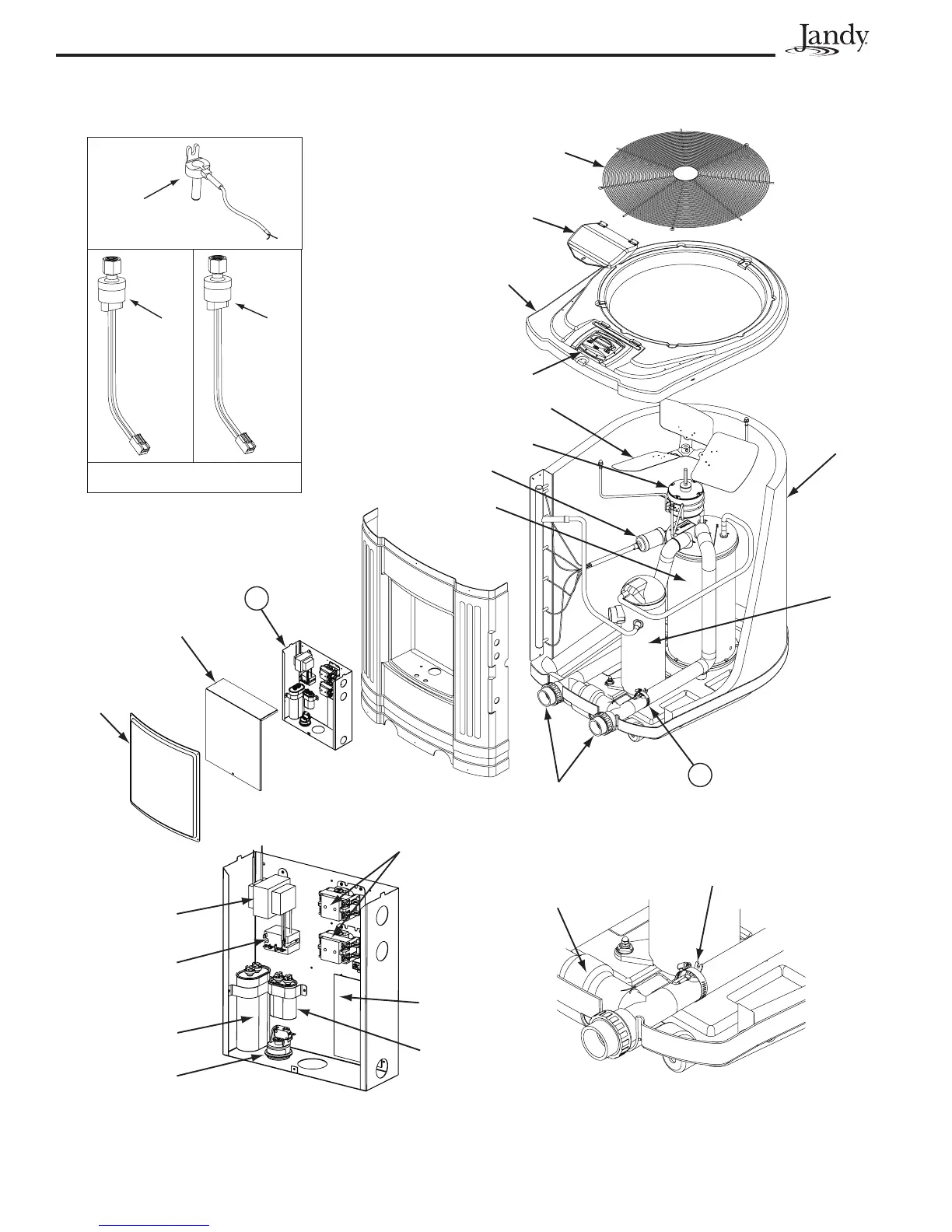

9.3 Jandy AE-Ti Heat Pumps Exploded View
2
31
6
7
9
23
30
8
5
16
B
21
18
A
29
10
20
28
4
14
1
3
15
25
12
11
DETAIL “B”
DETAIL “A”
These pressure switches are installed in
the refrigerant line near the compressor
RED WIRE
BLUE WIRE
YELLOW WIRE
ORANGE WIRE
17
Figure 17. Jandy AE-Ti Heat Pumps Exploded View
