Pro Series Sand Filter SFTM22-1.5, SFTM24-2.0
|
Installation & Operation Manual

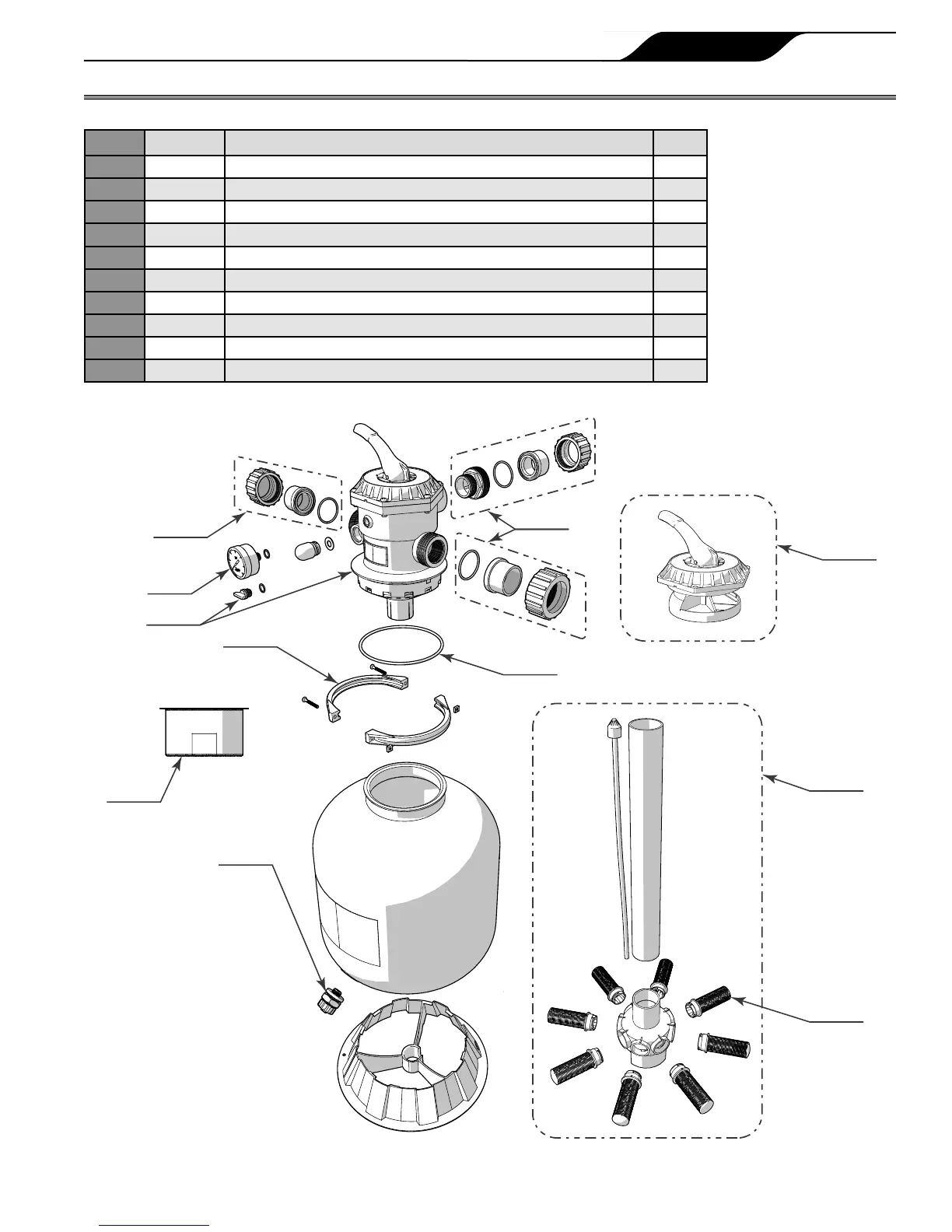

6.2 REPLACEMENT PARTS
6.2.1 SFTM22-1.5
ITEM Part # Description QTY
1
R0744600 CompleteMulti-PortValvew/ClampAssembly(1.5"MPV) 1
2
R0744700 Top Rotor Assembly 1
3
R0745100 Flange Clamp Assembly 1
4
R0745200 Drain Cap and O-Ring 1
5
R0745300 Lateral(FullSet) 8
6
R0745400 Lateral & Standpipe Assembly 1
7
R0745500 SandDeflector 1
8
R0745800 O-Ring Valve Tank 1
9
R0745000 Pressure Gauge Assembly 1
10
R0745600 Complete 1.5” Unions Kit 3
2
6
5
1,3,8
10
1,9
10
1
1,3
4
7
